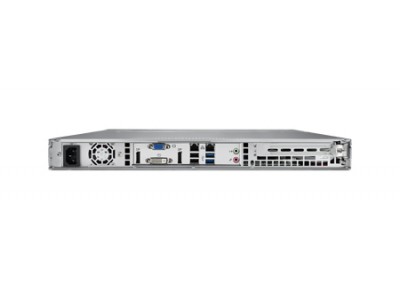

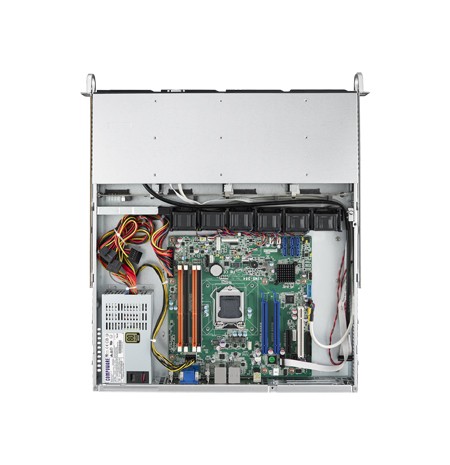

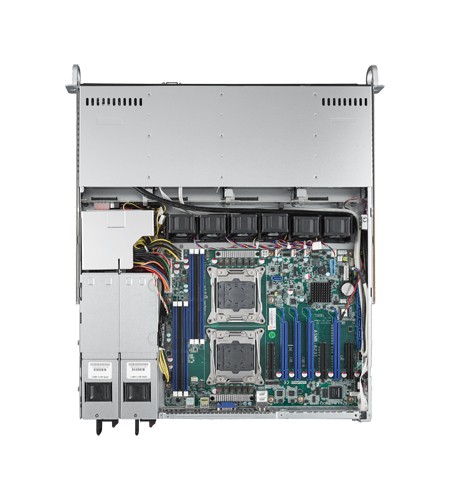

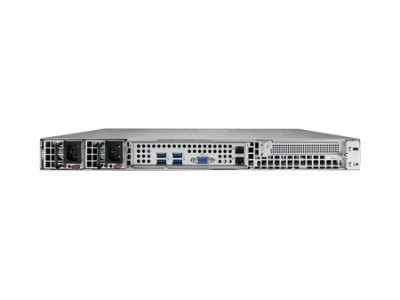

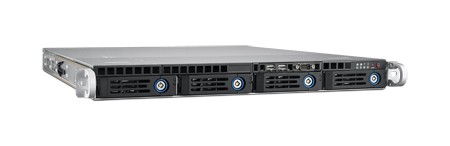

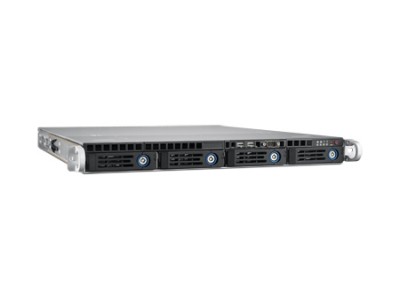

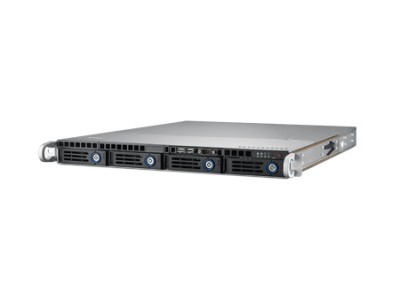

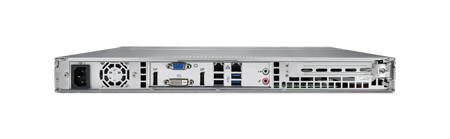

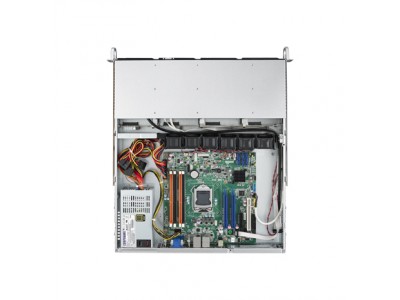

1U Rackmount Server Chassis for ATX/MicroATX Motherboard with 4 Hot-Swap HDD Trays & PCIe x16 Slot (HPC-7140-00A1E)
by Advantech
•Part #: HPC-7140-00A1E
View Detailed Description
$257.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
1U Rackmount Server Chassis for MircoATX/ATX Server board with 4 x 3.5" Hot-swap Drive Bays and 1 full-height/half-length PCI-E x16 Expansion Slot
- Supports EATX/ATX motherboard in short-depth (19.85 in.) 1U Rackmount chassis for dense computing applications

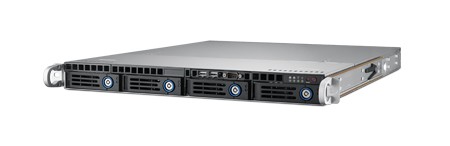

- Support for four hot swap 3.5" SAS/SATA/SSD drive bays

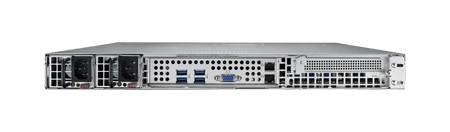

- Support 1U single and redundant power supply
- Supports 1 full-height/half-length PCI-E x16 Expansion Slot
- Easy swap and anti-vibration FAN design

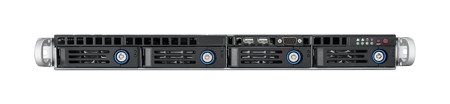

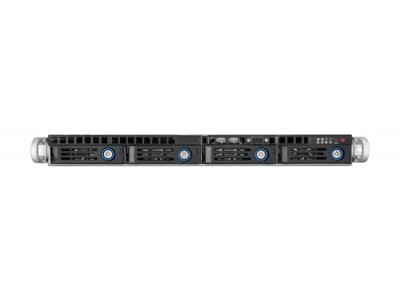

- Two front USB ports and one front COM port
- LED indicators on front panel
- Power Supply extra. Options include 400 Watt Redundant PS. See Accessories below.
| Cooling | System Fan | 4 (4cm / 23 CFM) |
| Drive Bay | Hot Swap External | 4 (3.5") |
| Slim Optical Drive External | 1 | |
| Environment | Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Non-Operating Vibration (5 ~ 500 Hz) | 0.5 Grms | |
| Non-Operational Temperature | -40 ~ 70° C (-40 ~ 158° F) | |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | |
| Operational Temperature | 0 ~ 35° C (32 ~ 95° F) | |
| Vibration (5 ~ 500 Hz) | 0.25 Grms | |
| Expansion Slots | PCIE | 1 x PCIe x16 |
| Front I/O Interface | COM Port | 1 |
| USB2.0 | 2 | |
| Miscellaneous | LED Indicators | Power, HDD, LAN1, LAN2, System Information |
| Physical Characteristics | Dimensions (W x H x D) | 437 x 43 x 504 mm (17.2" x 1.7" x 19.85") |
