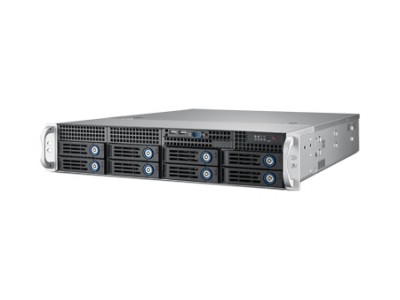

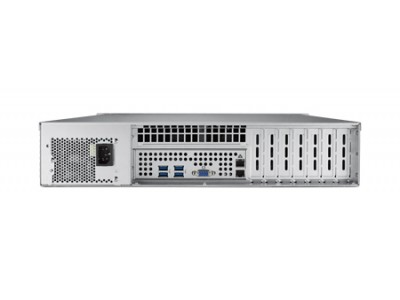

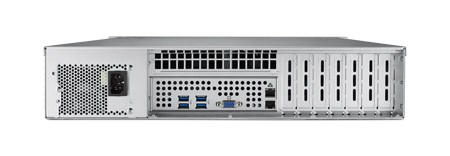

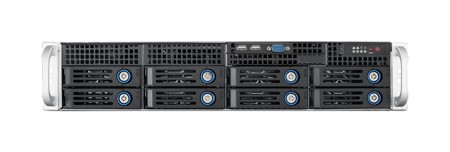

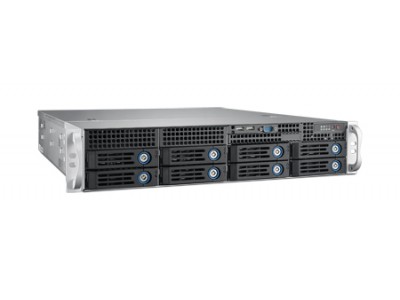

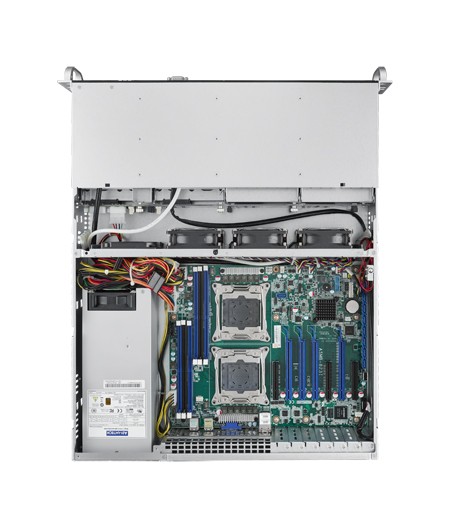

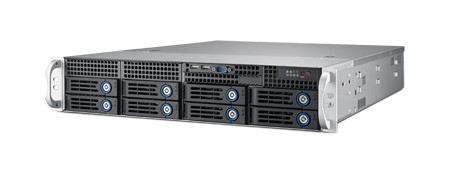

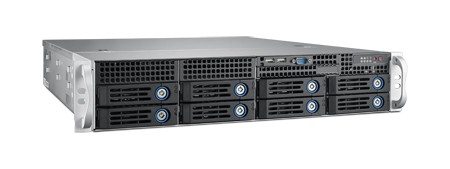

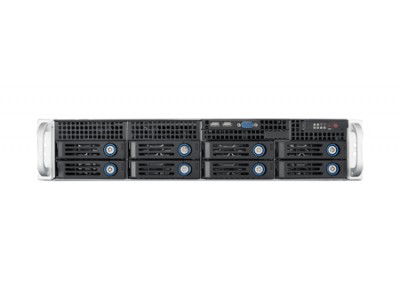

2U Rackmount Server Chassis for ATX/MicroATX Motherboard with 8 Hot-Swap HDD Trays & 7 PCIe x16 Expansion (HPC-7282-00A1E)
by Advantech
•Part #: HPC-7282-00A1E
View Detailed Description
$369.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

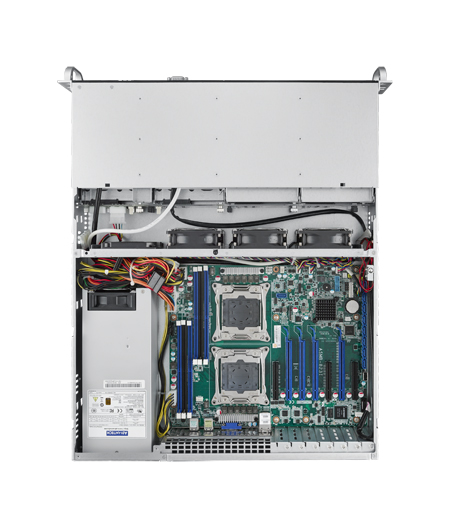

2U Rackmount Chassis for MircoATX/ATX Server Board with 8 Hot-swap Drive Bays, 7 Low Profile Expansion Slots
- Supports EATX/ATX motherboard in short-depth (21.06 in.) 2U Rackmount chassis for dense computing applications
- Support for eight hot swap 3.5" SAS/SATA/SSD drive bays, preinstalled
- Support 1U single and redundant power supply
- Supports7 low-profile/half-length PCI-E x16 Expansion Slot
- Easy swap and anti-vibration FAN design
- Two front USB ports and one front COM port
- 80PLUS Power Supply extra. Options include 700 Watt Redundant PS. See Accessories below.
| Cooling | System Fan | 3 x 80 mm Fan Module with swappable bracket |
| Drive Bay | Hot Swap External | 8 (3.5") Lockable |
| Internal 3.5" | 2 | |
| Slim Optical Drive External | 1 | |
| Environment | Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Non-Operating Vibration (5 ~ 500 Hz) | 0.5 Grms | |
| Non-Operational Temperature | -40 ~ 70° C (-40 ~ 158° F) | |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) | |
| Vibration (5 ~ 500 Hz) | 0.25 Grms | |
| Front I/O Interface | COM Port | 1 |
| USB2.0 | 2 | |
| Miscellaneous | LED Indicators | Power, HDD, LAN1, LAN2, System Information |
| Physical Characteristics | Dimensions (W x H x D) | 437 x 88.9 x 533.4 mm (17.2" x 3.5" x 21") |
