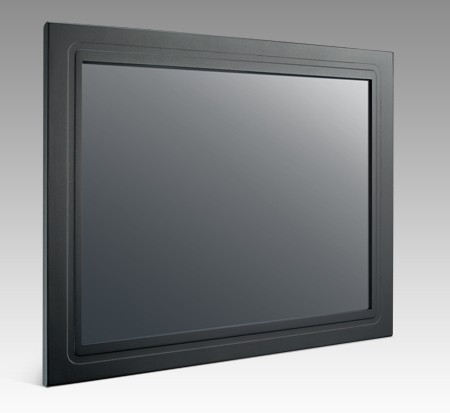

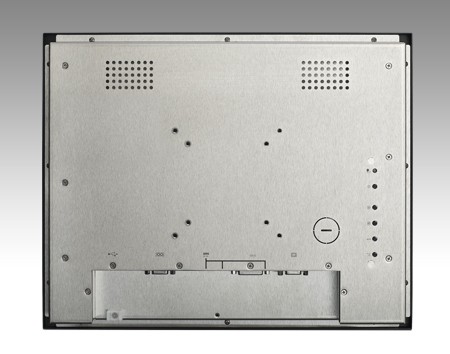

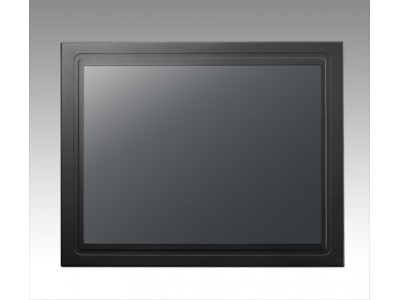

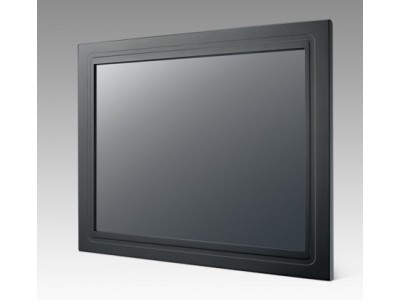

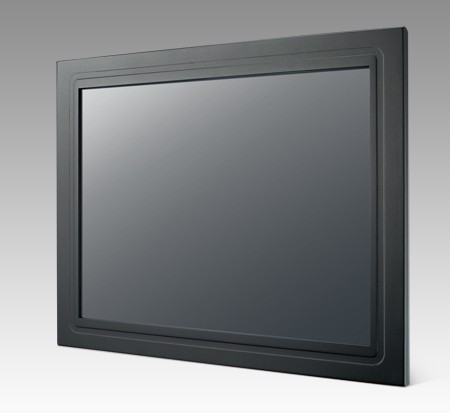

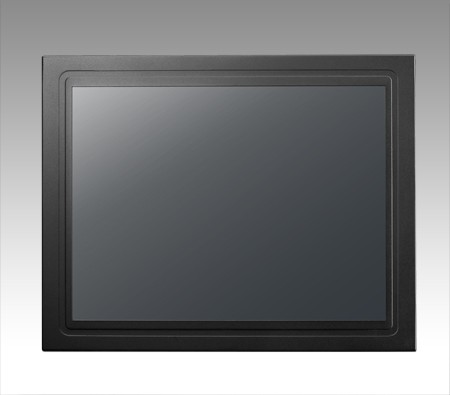

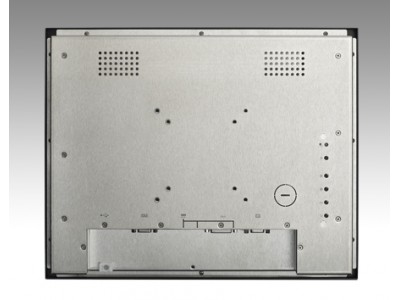

10.4" 800X600 SVGA Panel Mount Monitor, 400nits with Resistive Touch (IDS-3210R-40SVA1E)
by Advantech
•Part #: IDS-3210R-40SVA1E
View Detailed Description
$417.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
10.4" SVGA Industrial Panel Mount Monitor
- 10.4" SVGA LCD panel with LED backlight for 20% power saving and environmental protection
- -20° C ~ +60° C wide range operating temperature
- 5-wire resistive touchscreen solution
- Combo touch interface: RS-232 and USB
- Dual signal interface with VGA & DVI
| Environment | Operational Temperature | -20 ~ 60° C |
| Storage Temperature | -30 ~ 70° C | |
| Humidity | 5 ~ 95% @ 40° C, non-condensing | |
| LCD Display | Size | 10.4" |
| Resolution | 800x600, SVGA | |
| Viewing Angle (H/V°) | 160/140 | |
| Brightness | 400nits | |
| Colors | 262K/16.2M | |
| Contrast Ratio | 700 : 1 | |
| Response Time (ms) | 30 | |
| Backlight Type | LED | |
| Backlight Life (hrs) | 50,000 | |
| Touch Screen | 5-Wire Resistive | |

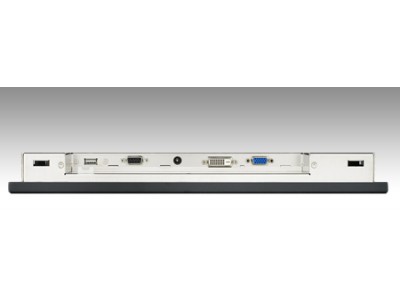

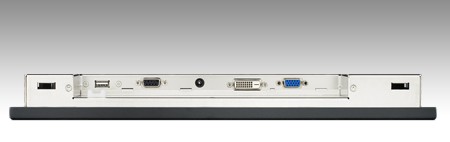

| Signal Interface | VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) | |
| Dimension | 290.2 x 237.64 x 35.1mm | |
| Weight | 2.1kg | |
| Touchscreen | Surface Hardness | 3H |
| Durability | 36 million touches | |
| Transparency | 80% |
