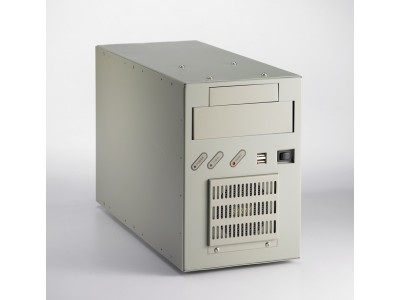

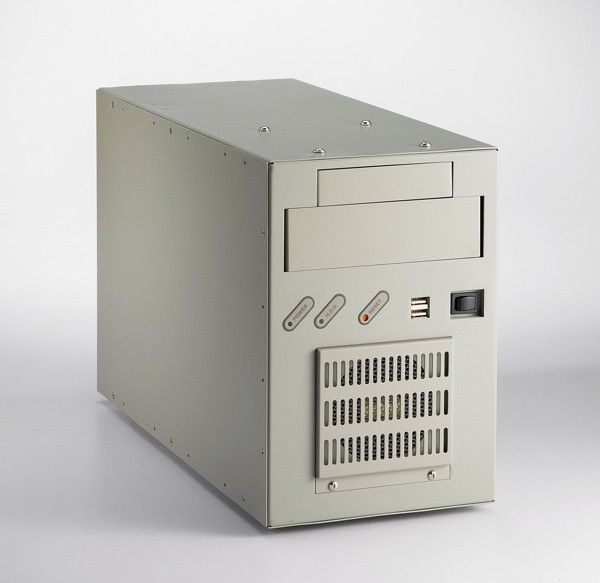

Desktop/Wallmount Barebone Chassis for SBC, RoHS (IPC-6606BP-00XE)
by Advantech
•Part #: IPC-6606BP-00XE
View Detailed Description
$99.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

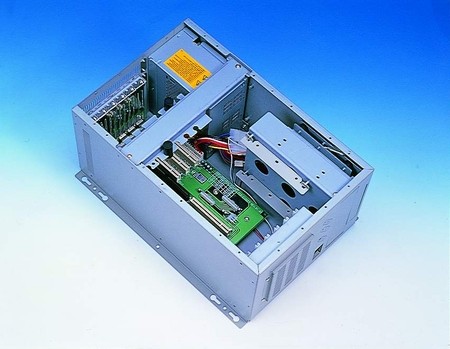

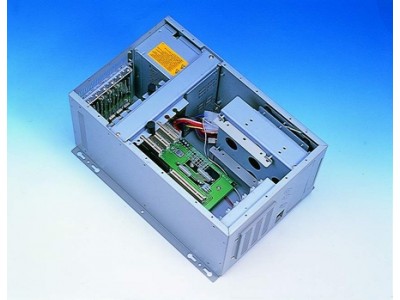

6-slot desktop/Wallmount chassis
- Cost-effective wallmount/desktop IPC chassis for 5-6 Slot PICMG backplane architecture
- Bidirectional options to mount the chassis on the wall or workbench
- Accepts up to 5 ISA/PCI full-length peripheral cards
- One 5.25" and one 3.5" front-accessible drive bays, plus one internal 3.5" drive bay One 53-CFM cooling fan with air filter
- 250 W and 300 W ATX power supply options available
- Two front accessible USB ports
| Backplane | PICMG 1.0/1.3 full size | NA |
| Cooling | System Fan | 1 (9cm / 53 CFM) |
| Air Filter | Yes | |
| Drive Bay | 5.25" | 1 |
| External 3.5" | 1 | |
| Internal 3.5" | 1 | |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Form Factor | Form Factor | PICMG 1.0/1.3 |
| Front I/O Interface | USB2.0 | 2 |
| Miscellaneous | LED Indicators | Power, HDD |
| Control | Power Switch, System reset | |
| Physical Characteristics | Weight | 9 kg ( 19.8 lb ) |
| Power Supplies | PS/2 | NA |
