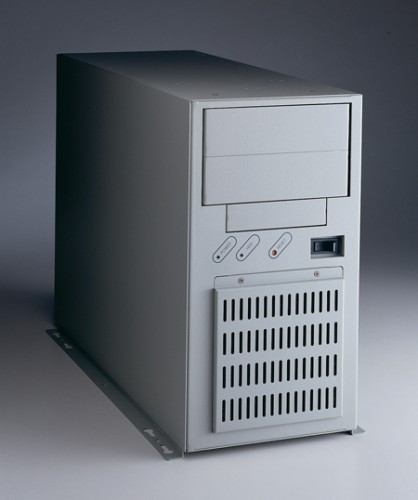

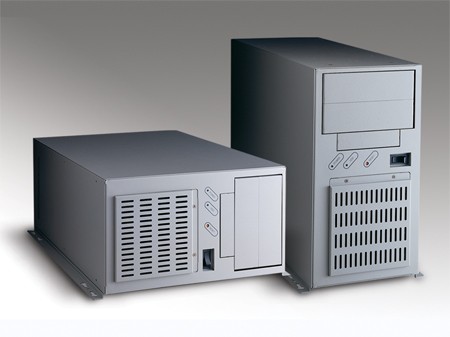

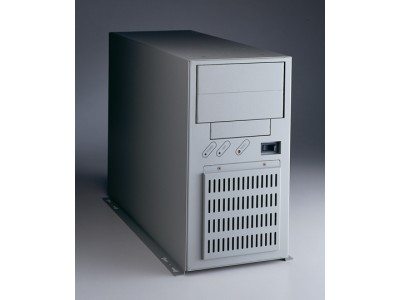

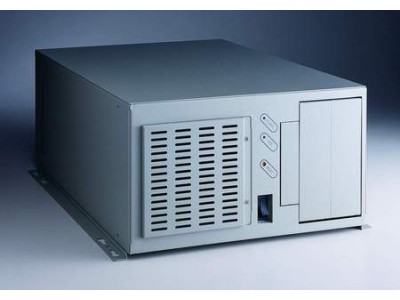

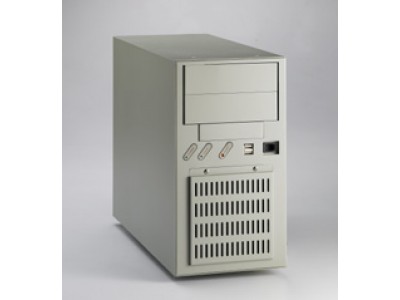

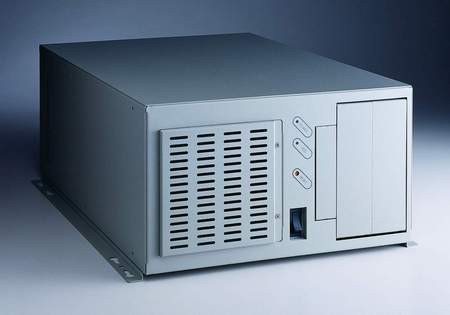

Desktop/Wallmount Chassis for SBC with RoHS (IPC-6608BP-00E)

by Advantech

Part #: IPC-6608BP-00E


View Detailed Description

$148.00

Qty:

8-Slot Desktop/Wallmount Chassis with PS/2 or Redundant Power Supply

  • Bidirectional options to mount the chassis on the wall or workbench

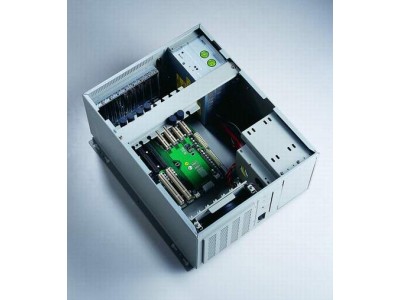

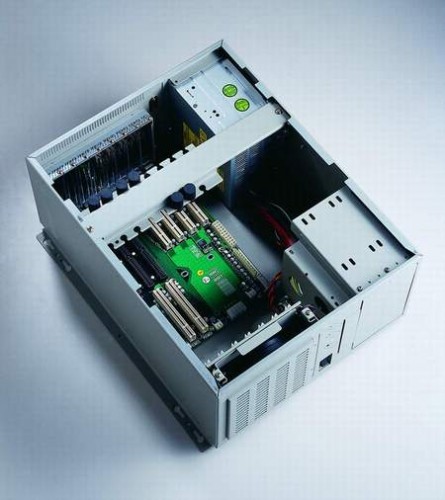

  • Equipped with an 8/6-slot ISA or ISA/PCI backplane to hold eight full-length cards
  • Two/One front accessed 5.25" disk drives and one 3.5" FDD
  • High-speed cooling fan supports abundant cooling and streamlined ventilation
  • Shockproof disk drive bay design for industrial applications
CoolingSystem Fan1 (12 cm/85 CFM)
Air FilterYes
Drive Bay5.25"2
External 3.5"1
Form FactorForm FactorPICMG 1.0/1.3
Front I/O InterfaceUSB2.02
MiscellaneousLED IndicatorsPower, HDD
ControlPower Switch, System reset
Physical CharacteristicsDimensions (W x H x D)173 x 315 x 410 mm ( 6.8" x 12.4" x 16.1" )
Weight11 kg ( 24.2 lb)
Andy W. on 01/06/2015
1 reviews

This is a great chassis for our Industrial application. The form factor fits our enclosure very well and we were able to work with L-Tron to get the exact configuration our application requires.
