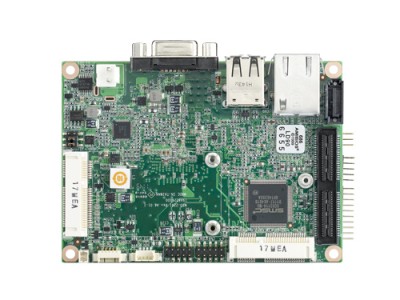

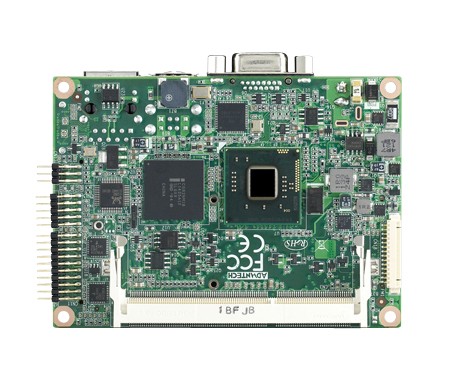

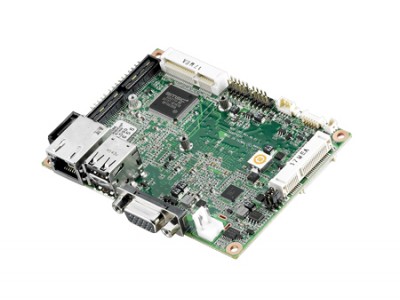

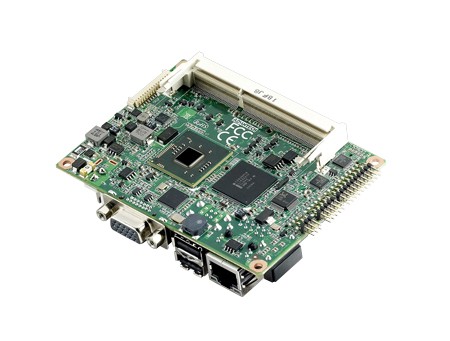

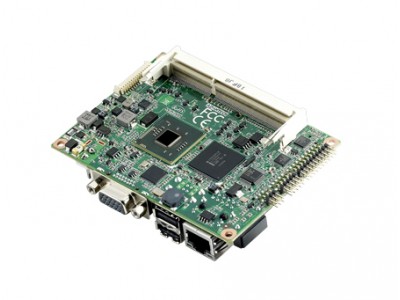

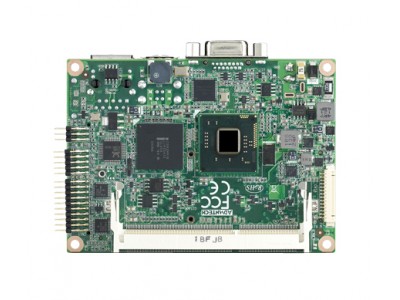

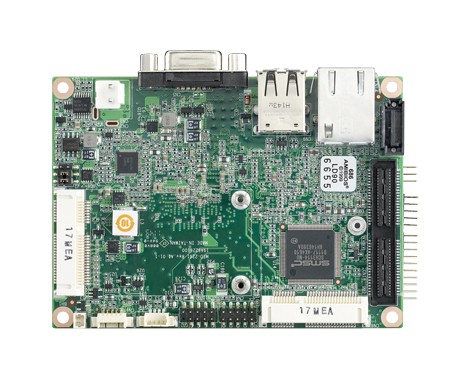

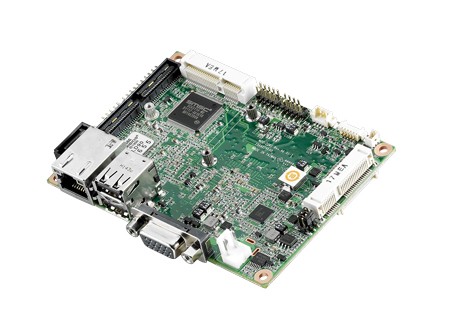

Intel Atom N2600 Pico-ITX SBC with DDR3, VGA, LVDS, GbE and MIOe Expansion – Wide Temp Version (MIO-2261Z-2GS6A1E)
by Advantech
•Part #: MIO-2261Z-2GS6A1E
View Detailed Description
$360.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Intel® Atom™ N2600/ N2800 Pico-ITX SBC, DDR3, 18/24-bit LVDS, VGA, 1 GbE, Half-size Mini PCIe, 4 USB, 2 COM, SMBus/I2C, mSATA & MIOe
- Embedded Intel® Atom™ N2600 1.6 GHz processor + NM10
- On-board 2GB DDR3 SODIMM Wide Temp DRAM
- DX 9, MPEG2 Decode in HW, Dual Independent display: 18/24-bit LVDS + VGA
- 1 GbE, Rich I/O interface with SATAII, 2 x USB 2.0, 2 x RS-232, GPIO
- MIOe expansion provides additional I/O via standard Advantech MIO module, or custom; 1 x Mini-PCIe expansion
- Supports 12 V +/- 10% input power and DC power hot plug
- Extended Temperature Version (-20~80°C)
- Supports embedded software APIs

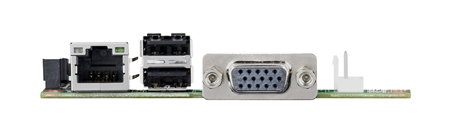

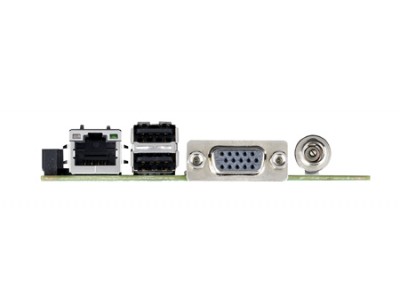

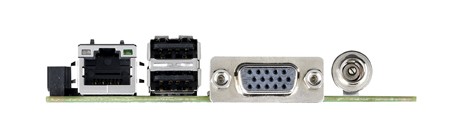

| Audio | CODEC | Realtek ALC892 |
| Interface | High Definition Audio (HD) | |
| Connector | Line-in, Line out | |
| Display | Controller | Integrated Intel GMA 3600 Series |
| Graphic Engine | DirectX 9 and OpenGL3.0 support HW Accelerated Decode: MPEG2, H.264, VC-1 | |
| LVDS | 18/24-bit LVDS1: up to 1366 x 768 | |
| VGA | Up to 1920 x 1200 at 60 Hz | |
| Multiple Display | VGA+LVDS | |
| Environment | Operational Temperature | -20 ~ 80° C (-4 ~ 176° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
| Ethernet | Speed | 10/100/1000Mbps |
| Controller | Intel 82583V | |
| Connector | RJ45 | |
| Expansion | Mini PCIe | 1 x Half-size |
| MIOe | SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset | |
| Internal I/O | USB | 2 x USB 2.0 |
| Serial | 2 x RS-232 (ESD protection for RS-232: Air gap ±15 kV, Contact ±8 kV) | |
| I2C | 1 (Shares with SMBus pin, supported by request) | |
| SMBus | 1 | |
| GPIO | 8-bit general purpose input/output | |
| Memory | Technology | DDR3 800MHz |
| Max. Capacity | 4 GB | |
| Socket | 1 x 204-pin SODIMM | |
| Physical | Dimension (mm) | 100 x 72 mm (3.9" x 2.8") |
| Weight | 0.48 kg (1.06 lb), weight of total package | |
| Total Height | Top Side: 15.65 mm (including heatsink); Bottom Side: 16.4 mm; PCB: 1.6 mm | |
| Power | Power Type | Single 12V DC power input (Supports DC power hot plug) |
| Power Supply Voltage | Supports single 12V input, ± 10% | |
| Total peripheral power supply output | 5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module | |
| Power Consumption (Typical) | 0.35 A @ 12 V (4.2 W) | |
| Power Consumption (Max) | 0.76 A @ 12 V (9.12 W) | |
| Power Management | ACPI | |
| Battery | 3V / 210 mAH | |
| Processor | CPU | Intel Atom N2600 |
| Frequency | 1.6 GHz | |
| Core Number | 2 | |
| L2 Cache | 1MB | |
| Chipset | Intel Atom N2600+ Intel NM10 | |
| BIOS | AMI EFI 16Mbit | |
| Rear I/O | Ethernet | 1 |
| VGA | 1 | |
| USB | 2 x USB 2.0 | |
| DC Power Jack | 1 | |
| Storage | mSATA | 1 (Integrates USB signal, supports either mSATA or USB interface module) |
| SATA | 1, up to 3Gb/s (300MB/s) | |
| Watchdog Timer | Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
