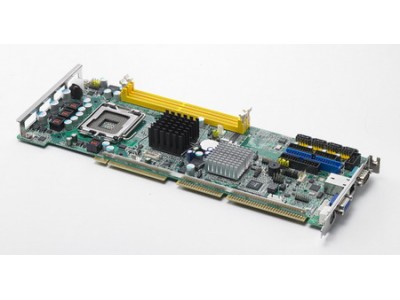

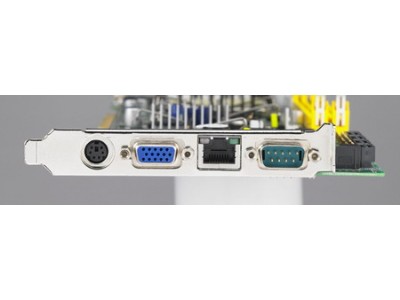

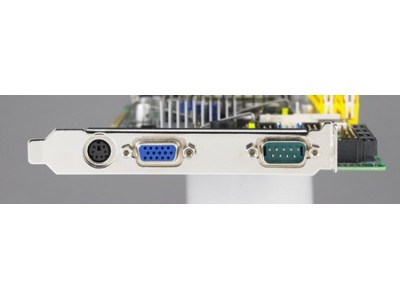

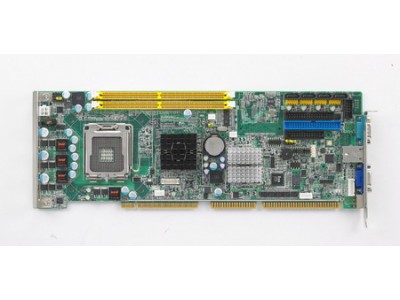

LGA 775 Intel Core 2 Duo Full-size Single Board Computer with VGA, Gigabit LAN, HISA and 8 USB (PCA-6010VG-00A1E)
by Advantech
•Part #: PCA-6010VG-00A1E
View Detailed Description
$287.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
LGA775 Intel® Core™2 Duo SBC with Dual GbE and DVI
- Supports LGA 775 Intel Core™ 2 Duo FSB 1066 MHz Processors
- Supports Dual Channel DDR2 667 SDRAM up to 4 GB
- Bus support for 32-bit PCI and HISA (High-Speed ISA)
- Single GbE LAN via PCIe x1 Lane
- 2 COM Ports, 4 SATA ports, 8 USB ports
| Certification | EMC | CE, FCC |
| Display | Controller | Intel GMA 950 Integrated |
| Graphic Memory | Shared with system memory up to 224MB | |
| Multiple Display | - | |
| Display Interface | VGA: Up to 2048 x 1536 | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Non-Operating Vibration | 2 Grms | |
| Ethernet | Controller | LAN1: Intel 82574L |
| Speed | 10/100/1000 Mbps | |
| Connector | 1 x RJ45 | |
| Expansion Interface | PCI | 1 |
| ISA | 1 | |
| LPC | 1 | |
| SMBus | 1 | |
| I2C Bus | 1 | |
| Form Factor | Form Factor | PICMG1.0 |
| I/O | COM | 1 x RS232 |
| COM Port | 2 x RS232 | |
| Ethernet | 1 | |
| Compact Flash | - | |
| Floppy | 1 | |
| GPIO | - | |
| IDE | - | |
| LPT | 1 | |
| PS/2 Keyboard/Mouse | 1 | |
| SATA | 4 x SATA II | |
| System Fan | 1 | |
| USB2.0 | 1 | |
| VGA | 1 | |
| Memory | Technology | DDR2 533/667 MHz |
| Capacity | Up to 4GB | |
| Socket | 2 x 240-pin DIMM | |
| Physical Characteristics | Dimensions (LxW) | 338 x 122 mm (13.3" x 4.8") |
| Weight | 0.5 kg | |
| Power Requirement | Voltage | +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V |
| Current | 3.82A/5A/0A/0.024A/0A/0A | |
| Processor System | CPU | Intel Core 2 Duo: E7400/E6400/E4300 Intel Pentium: E6500/E5300/E2160 Intel Celeron: E1500/440 Intel Pentium4: 651/551/531 Intel CeleronD: 352/341 |
| CPU TDP | Up to 65 W | |
| Frequency | Up to 3.4 GHz | |
| Core Number | Up to 2 | |
| L2 Cache | Up to 4MB | |
| BIOS | Award 4 MBit | |
| Chipset | Intel 945GC + ICH7 | |
| Integrated Graphics | - | |
| FSB | 533/800/1066 MHz | |
| WatchDog Timer | Output | System Reset |
| Interval | Programmable 1~255 sec |
