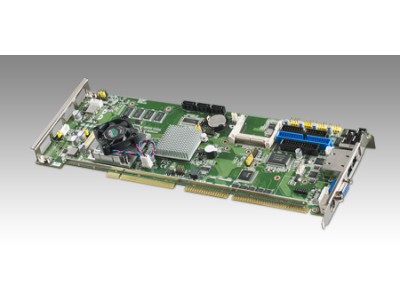

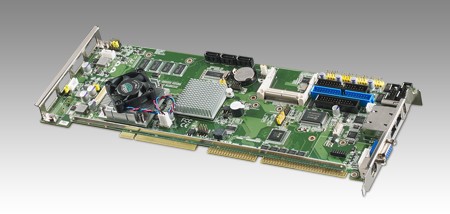

Intel Atom N455 Full-Sized Single Board Computer with DDR3, GbE LAN and SATAII (PCA-6013VG-00A1E)

by Advantech

Part #: PCA-6013VG-00A1E


View Detailed Description

$404.00

Call for Availability

Intel® Atom™ N455/D525 SBC with Anti-surge LAN/COM

  • Atom N455 CPU Single Board Computer enables fanless design, ICH8M
  • 1GB DDR3 800 SO-DIMM mounted on-board for anti-vibration, up to 3 GB maximum board memory
  • IE61000-4-5 LV.3 anti-surge certificated rear I/O: LAN, COM ports and optional module for 4x RS-485 w/Auto-flow control
  • 1 x GbE LAN
  • 2 RS-232 onboard pin-headers, plus four ports of RS-485 with auto-flow control (via optional module)
  • 3 Channel SATAII & 1 x GPIO port
  • 0 ~ 60° C Operating temperature
CertificationEMCCE, FCC
DisplayControllerIntel HD graphics Integrated
Graphic MemoryShared with system memory up to 256MB
Multiple DisplayDual
Display InterfaceVGA: Up to 1400 x 1050
EnvironmentOperational Temperature0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature-40~ 85° C and 60° C @ 95% RH Non-Condensing
Non-Operating Vibration2 Grms
EthernetControllerLAN1: Intel 82567V
Speed 10/100/1000 Mbps
Connector1 x RJ45
Expansion InterfacePCI1
ISA1
LPC1
SMBus1
I2C Bus1
Form FactorForm FactorPICMG1.0
I/OCOM1 x RS232
COM Port2 x RS232
Ethernet1
Compact Flash -
Floppy1
GPIO8-bit
IDE1
LPT1
PS/2 Keyboard/Mouse1
SATA3 x SATA II
System Fan-
USB2.0-
VGA1
MemoryTechnologyDDR3 667 MHz
CapacityUp to 2GB
Socket2 x 204-pin DDR3
Physical CharacteristicsDimensions (LxW)338 x 122 mm (13.3" x 4.8")
Weight0.5 kg
Power Requirement Voltage+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V
Current0.16A/2.81A/0A/0.13A/0A/0A
Processor SystemCPUIntel Atom N455
CPU TDPUp to 6.5W
FrequencyUp to 1.66 GHz
Core Number1
L2 Cache512KB
BIOSAMI 16 MBit
ChipsetIntel ICH8M
Integrated GraphicsYes
FSB-
WatchDog TimerOutputSystem Reset
IntervalProgrammable 1~255 sec
