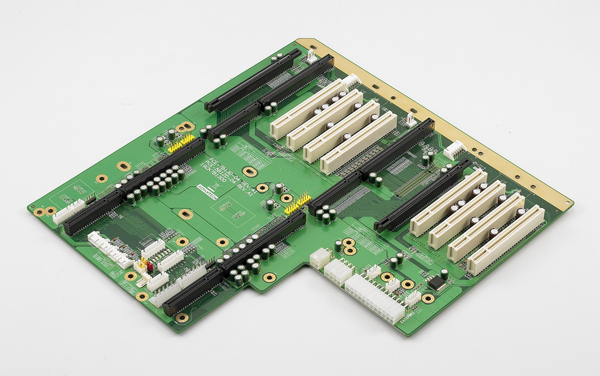

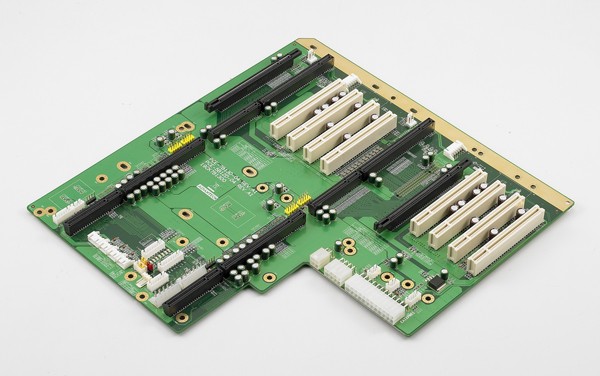

12-slot Dual Segment PICMG 1.3 Backplane; One CPU Card, One PCIe x16, 4PCI per Segment, RoHS (PCE-5B12D-04A1E)

by Advantech

Part #: PCE-5B12D-04A1E


View Detailed Description

$117.00

Call for Availability

Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech's SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

  • 12-slot BP for 14-slot chassis
  • Segments: 2
  • Each segment:
  • One CPU card slot
  • PCIe slot: One x16
  • PCI-X slot: N/A
  • PCI slot: Four 32/33
  • Compatible with IPC chassis: ACP-4010
Expansion InterfacePCI Express x 161
PCI Express x 80
PCI Express x 40
PCI Express x 10
PCI4
PCI-X0
