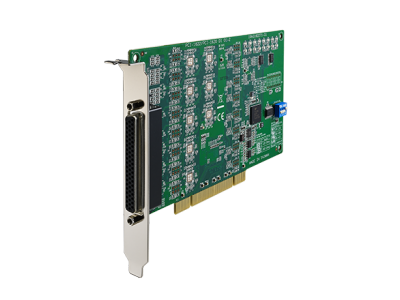

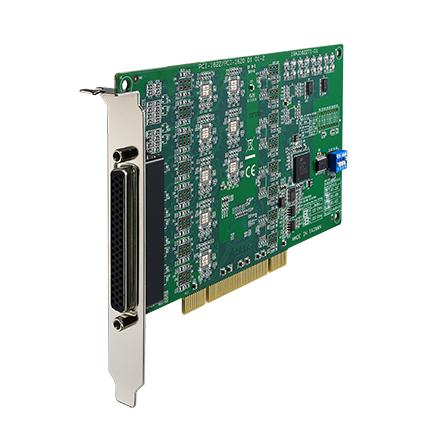

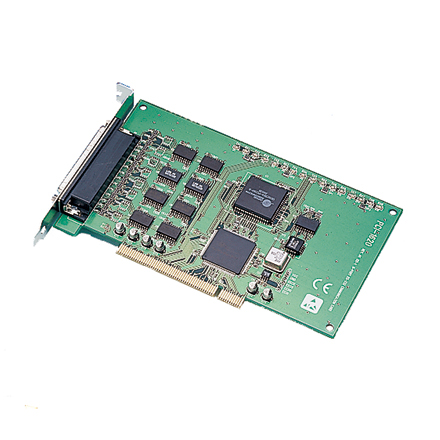

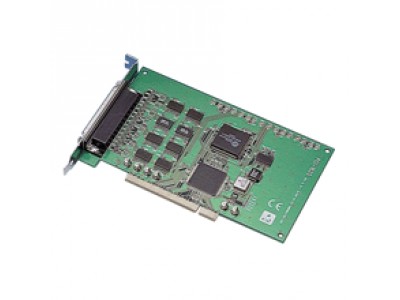

8-Port RS-232 Universal PCI Communication Card (PCI-1620A-CE)
by Advantech
•Part #: PCI-1620A-CE
View Detailed Description
$145.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- PCI bus 2.2 compliant, supports serial speed up to 921.6 kbps
- 8-port RS-232, or 8-port RS-422/485
- OXuPC1954 UARTs with 128-byte FIFOs standard
- I/O address automatically assigned by PCI Plug & Play
- OS supported: Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux, and QNX
- Space reserved for termination resistors
- Automatic RS-485 data flow control
- Powerful and easy to use utility (ICOM Tools)
- Universal PCI, supports 3.3 V or 5 V PCI bus signal
| Communications | RS-232 | V |
| Data Bits | 5, 6, 7, 8 | |
| Stop Bits | 1, 1.5, 2 | |
| Parity | None, even, odd | |
| Data Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND | |
| FIFO | 128 bytes | |
| Data Flow Control | RTS/CTS, Xon/Xoff | |
| IRQ | Assigned by Plug & Play | |
| Communication Controller | OXuPCIe958 | |
| Display | Ports | 8 |
| Environment | Temperature (Operating) | -10 ~ 60° C (14 ~ 140° F) |
| Temperature (Storage) | -25 ~ 85°C (-13 ~ 185°F) | |
| Humidity (Operating) | 5 ~ 95 % RH, non-condensing | |
| General | Power Consumption | 600 mA @ +5 V |
| Bus | Universal PCI V2.2 | |
| Certifications | CE, FCC class A | |
| OS Support | Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux and QNX | |
| Dimensions | 185 x 100 mm (7.3" x 3.9") | |
| Connector | 1 x Female DB62 | |
| Network | Cable Connector Type | Optional |
| Protection | ESD Protection | 8 KV (air), 4KV (contact) |
| EFT Protection | 1 KV | |
| Software | Bundled Software | ICOM Tools |
