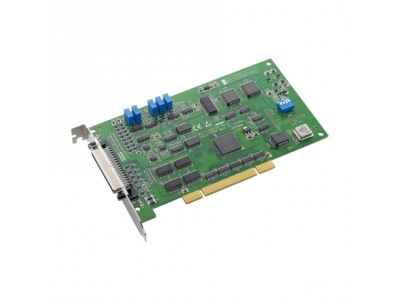

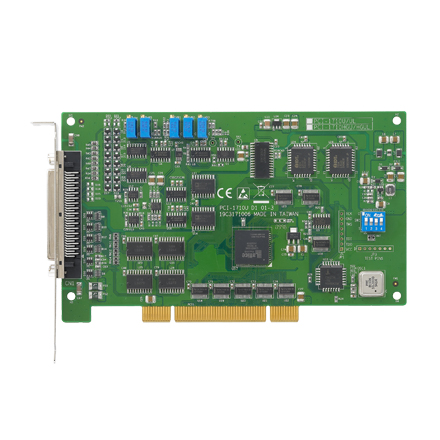

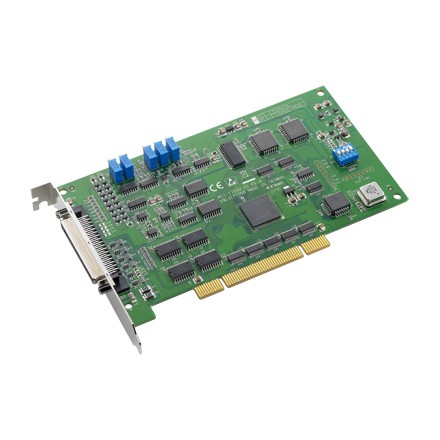

16-Channel Universal PCI Multifunction Card with High Gain, 100 kS/s, 12-bit (PCI-1710HGU-DE)

by Advantech

Part #: PCI-1710HGU-DE


View Detailed Description

$595.00

Qty:

The PCI-1710HGU is a multifunction DAS card for the PCI bus. Its advanced circuit design provides higher quality and more functions, including the five most desired measurement and control functions: 12-bit A/D conversion, D/A conversion, digital input, and counter/timer.

  • 16 single-ended, 8 differential or a combination of analog inputs
  • 12-bit A/D converter, with up to 100 kHz sampling rate
  • Programmable gain for each input channel
  • Free combination of single-ended and differential inputs
  • On-board 4 K samples FIFO buffer
  • Two 12-bit analog output channels
  • 16 digital inputs and 16 digital outputs
  • Programmable pacer/counter
Analog InputSampling Rates(S/s)100 k
Resolution (Bits)12
Channels16
Unipolar Input (V)0~ 10, 0~1, 0~0.1, 0~0.01
Bipolar Inputs (V)±10, 5, 1, 0.5,0.1, 0.05, 0.01, 0.005
Input Impedance300MO
TypeScan
Analog OutputChannels2
Resolution(Bits)12
Output Ranges0 ~ +10 V, 0 ~ +5 V
Update Rate(S/s)Static
GeneralPower ConsumptionTypical: 5 V @ 850 mA; Max.: 5 V @ 1 A
I/O Connectors1 x 68-pin SCSI female connector
Operating Temperature0 ~ 60°C (32 ~ 140° F)
BusPCI
Dimensions175 x 100 mm (6.9" x 3.9")
OS Support32-bit/64-bit Windows 7/8/10, and Linux
Programming LanguageC#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt
Timer/CounterResolution16 bits
Max. Input Frequency10 MHz
Channels1
TTL DI/O Input Channels16
Output Channels16
