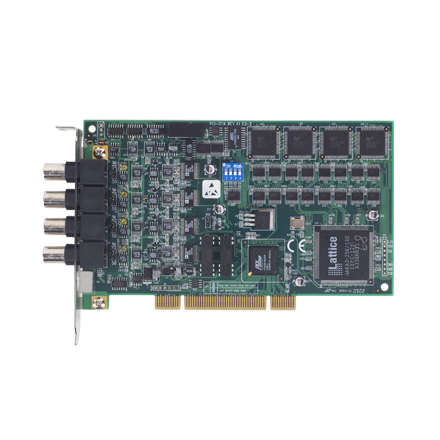

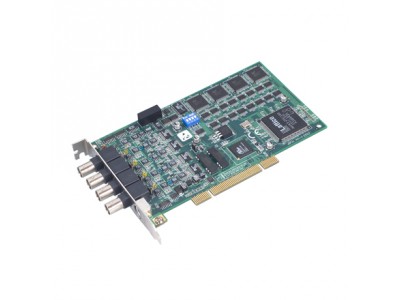

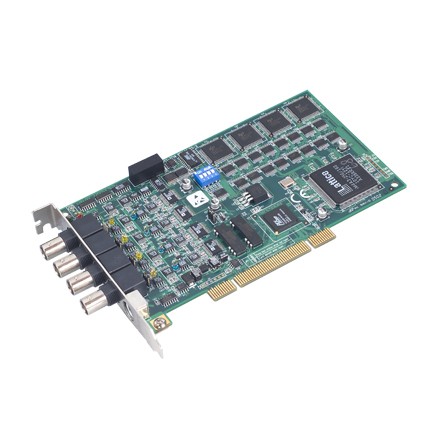

4-Channel Simultaneous Analog Input Universal PCI Card, 10 MS/s, 12bit (PCI-1714UL-BE)

by Advantech

Part #: PCI-1714UL-BE


View Detailed Description

$995.00

Call for Availability

PCI-1714U/PCI-1714UL and PCIE-1744 are advanced high-performance data acquisition cards based on the PCI/PCIe bus. With a large FIFO of 32,768 for each channel, the maximum sampling rate of PCI-1714U/PCIE-1744 can get up to 30 MS/s, on each channel, with an emphasis on continuous, non-stop, high-speed, streaming data of samples to host memory. The low-cost PCI-1714UL offers 10 MS/s on each channel at a stable rate, and has also been equipped with a universal PCI interface.

  • 4 single-ended analog input channels
  • 12-bit A/D converter, with up to 30 MHz sampling rate
  • Programmable gain
  • Onboard FIFO memory(PCI-1714: 32,768 samples PCI-1714UL: 8,192 samples, each channel)
  • 4 A/D converters simultaneously sampling
  • Multiple A/D triggering modes
  • Programmable pacer/counter
  • BoardID™ switch
  • Universal PCI Bus (support 3.3 V or 5 V PCI bus signal)
Analog InputSampling Rates(S/s)10M
Resolution (Bits)12
Bipolar Inputs (V)±5, ±2.5, ±1, ±0.5
Channels4
Input Impedance50/10M/High Z selectble
Overvoltage Protection30 Vp-p
TypeSimul. Sample
GeneralOperating Temperature0~70° C (32~158° F)
Power ConsumptionTypical: 5V @ 850 mA ; 12V @ 600 mA; Max.: 5V @ 1 A; 12V @ 700mA
I/O Connectors4 x BNC, 1 x PS/2
BusPCI
Dimensions175 x 100 mm (6.9" x 3.9")
OS Support32-bit/64-bit Windows 7/8/10, and Linux
Programming LanguageC#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt
