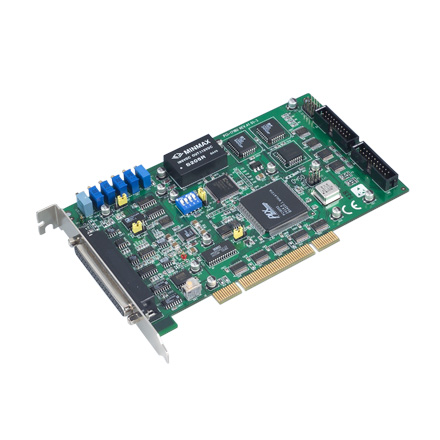

16-Channel Universal PCI Multifunction Card, 100 kS/s, 12-bit (PCI-1718HDU-AE)
by Advantech
•Part #: PCI-1718HDU-AE
View Detailed Description
$490.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The PCI-1718 series and the PCL-818H series are 100 kS/s multifunction data acquisition cards that offer the fi ve most desired measurement and control functions: 12-bit A/D conversion, 12-bit D/A conversion, digital input, digital output, and counter/timer. With 3-way compatibility, migration is possible from ISA bus to PCI bus. The HG cards have the same specifi cations as the HD cards, but also offer a special high-gain programmable instrument amplifi er for reading very low input signals.
- ISA-Compatible with PCL-818HD/818HG
- 16 single-ended or 8 differential analog inputs
- 12-bit A/D converter, with up to 100 kHz sampling rate
- Programmable gain
- Automatic channel/gain scanning
- Onboard FIFO memory (1024 samples)
- One 12-bit analog output channel
- 16 digital inputs and 16 digital outputs
- Universal PCI bus (support 3.3 V or 5 V PCI bus signal)
| Analog Input | Sampling Rates(S/s) | 100 k |
| Resolution (Bits) | 12 | |
| Channels | 16 | |
| Unipolar Input (V) | 0~10, 0~5, 0~0.25, 0~1.25 | |
| Bipolar Inputs (V) | ±10, 5, 2.5, 1.25, 0.625 | |
| Input Impedance | 100MO | |
| Overvoltage Protection | 30 Vp-p | |
| Type | Scan | |
| Analog Output | Channels | 1 |
| Resolution(Bits) | 12 | |
| Output Ranges | 0 ~ +10 V, 0 ~ +5 V | |
| Update Rate(S/s) | 100 k | |
| General | Power Consumption | Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A |
| I/O Connectors | 37-pin DSUB female for Analog One 20-pin Box Header for DI One 20-pin Box Header for DO | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140° F) | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Timer/Counter | Resolution | 16 bits |
| Max. Input Frequency | 10 MHz | |
| Channels | 1 | |
| TTL DI/O | Input Channels | 16 |
| Output Channels | 16 |
