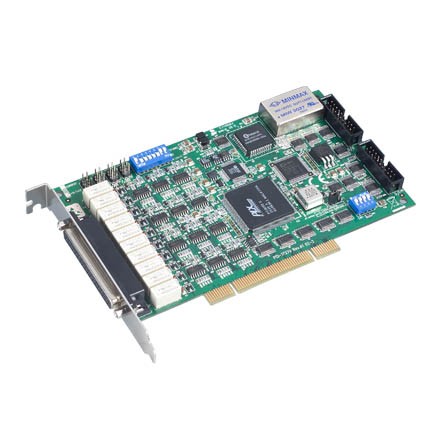

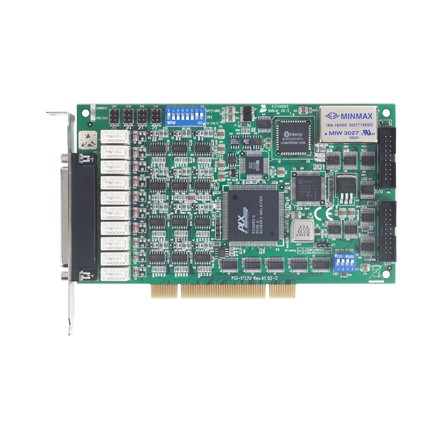

12-Channel Synchronized Analog Output Universal PCI Card with 32-Channel Digital I/O, 14bit (PCI-1727U-AE)
by Advantech
•Part #: PCI-1727U-AE
View Detailed Description
$795.00
PCI-1727U provides twelve 14-bit analog output channels, and is pin-complatible with the ISA PCL-727 card for easy migration. It supports both +/-10 V and 0 ~ 20 mA current loop (sink). The card's on board DC-to-DC converter ensures the full 10 V D/A output is always available.<br>Each analog output channel has a built-in fuse to protect the circuit, PC and the external devices. PCI-1727U is an ideal, economical solution for the applications which require multiple PID control loops. In addition to its analog outputs, PCI-1727U provides 16 TTL DI and 16 TTL DO channels that are easily applied with industrial on/off control applications.
- 12 independent analog output channels
- Fuse on each channel
- Universal PCI for 5 V and 3.3 V support
- BoardID™ switch
- Synchronized output function
| Analog Output | Channels | 12 |
| Resolution(Bits) | 14 | |
| Output Ranges | 0 ~ 5, 0 ~ 10, ±5, 4 ~ 20 mA | |
| Update Rate(kS/s) | Static | |
| General | Bus | PCI |
| Operating Temperature | 0 ~ 50°C (32 ~ 122°F) | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| Power Consumption | Typical: 5 V @ 250 mA; Max.: 5 V @ 500 mA | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| TTL DI/O | Input Channels | 16 |
| Output Channels | 16 |
