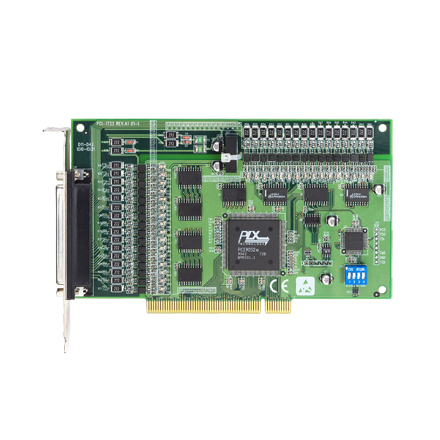

CIRCUIT BOARD, 32ch Isolated Digital Input Card (PCI-1733-BE)
by Advantech
•Part #: PCI-1733-BE
View Detailed Description
$204.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
PCI-1730U, PCI-1733, and PCI-1734 offer isolated digital input channels as well as isolated digital output channels with isolation protection up to 2,500 VDC, which makes them ideal for industrial applications where high-voltage isolation is required. There are also 32 TTL digital I/O channels on PCI-1730U.
- ISA-Compatible with PCL-733
- 32-ch Isolated digital input
- High output driving capacity
- Interrupt handling capability
- D-type connector for isolated input channels
| General | Power Consumption | Typical: 5 V @ 200 mA, 12 V @ 50 mA, Max.: 5 V @ 350 mA |
| I/O Connectors | 37-pin D-Sub female | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140°F) | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Isolated Digital I/O | Input Channels | 32 |
| Input Range | 5 ~ 30 VDC |
