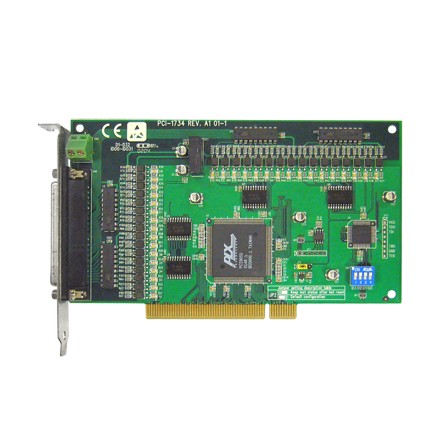

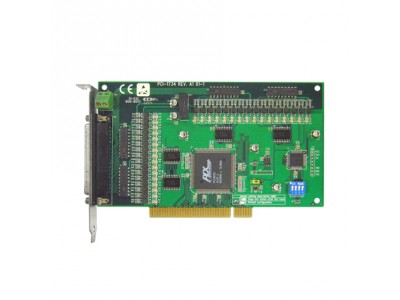

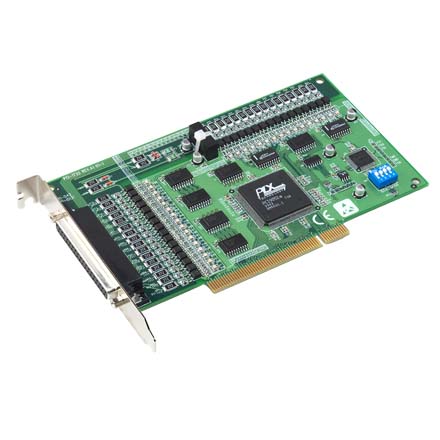

CIRCUIT BOARD, 32-ch Isolated Digital Output Card (PCI-1734-CE)

by Advantech

Part #: PCI-1734-CE


View Detailed Description

$210.00

Call for Availability

PCI-1730U, PCI-1733, and PCI-1734 offer isolated digital input channels as well as isolated digital output channels with isolation protection up to 2,500 VDC, which makes them ideal for industrial applications where high-voltage isolation is required. There are also 32 TTL digital I/O channels on PCI-1730U.

  • ISA-Compatible with PCL-734
  • 32-ch Isolated digital output
  • High output driving capacity
  • D-type connector for isolated output channels
  • High-voltage isolation on output channels
GeneralPower ConsumptionTypical: 5 V @ 150 mA, 12 V @ 15 mA, Max.: 5 V @ 250 mA
I/O Connectors37-pin D-Sub female
Operating Temperature0 ~ 60°C (32 ~ 140°F)
BusPCI
Dimensions175 x 100 mm (6.9" x 3.9")
OS Support32-bit/64-bit Windows 7/8/10, and Linux
Programming LanguageC#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt
Isolated Digital I/OOutput Channels32
Output Ranges5 ~ 40 VDC
