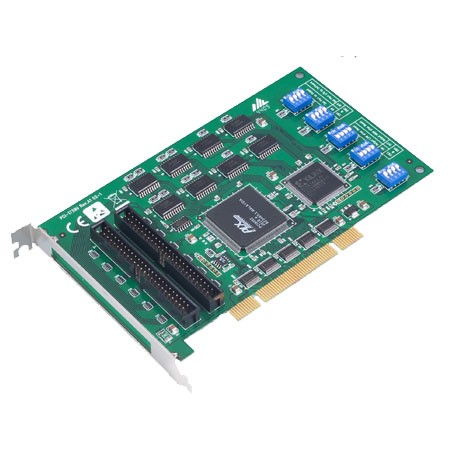

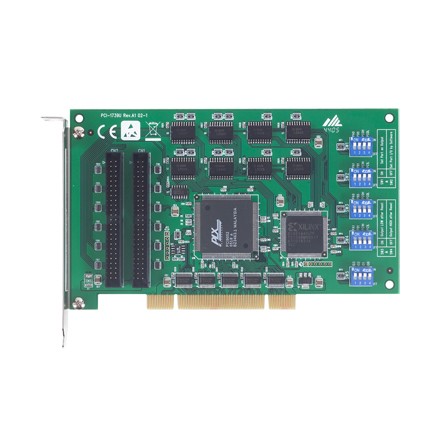

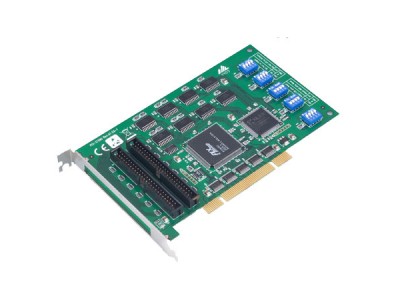

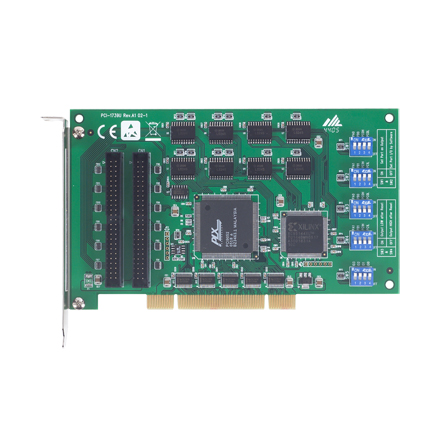

48-Channel TTL Digital I/O Universal PCI Card (PCI-1739U-AE)

by Advantech

Part #: PCI-1739U-AE


View Detailed Description
  • In Stock (3)
  • Ships Within 1 - 2 Weeks
  • Free Shipping for most products over $125
  • View Datasheet

$195.00

Qty:

48-ch Digital I/O Universal PCI Card

  • ISA-Compatible with PCL-731
  • 48 TTL digital I/O channels
  • Emulates mode 0 of 8255 PPI
  • Interrupt handling
  • Opto-22 compatible 50-pin connectors
  • Output status readback
  • PCI universal card
GeneralPower ConsumptionMax.: 5 V @ 720 mA
I/O Connectors50-pin insulation displacement connectors
Operating Temperature0 ~ 60°C (32 ~ 140° F)
BusPCI
Dimensions175 x 100 mm (6.9" x 3.9” )
OS Support32-bit/64-bit Windows 7/8/10, and Linux
Programming LanguageC#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt
TTL DI/O Input Channels48 (shared)
Output Channels48 (shared)
