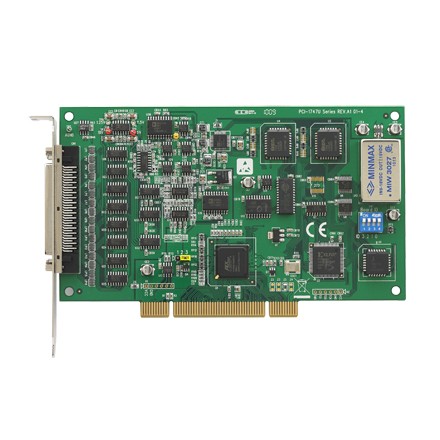

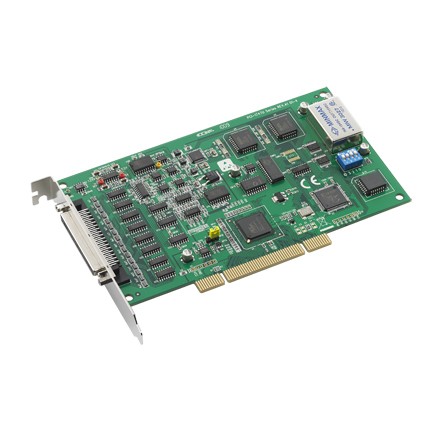

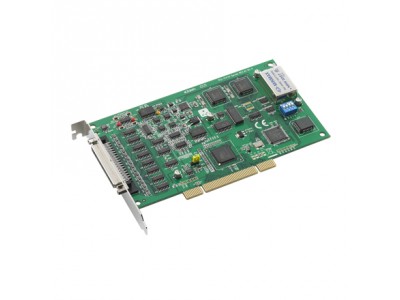

64-Channel High-resolution Analog Input Universal PCI Card, 250 kS/s, 16bit (PCI-1747U-AE)
by Advantech
•Part #: PCI-1747U-AE
View Detailed Description
$795.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
PCI-1747U is a high-resolution, high-channel-count analog input card for the PCI bus. Its sampling rate is up to 250 kS/s and 16-bit resolution provides the resolution needed for most data acquisition applications. PCI-1747U provides 64 single-ended, 32 differential analog input channels or a combination of these. It also has built in a 1,024 FIFO buffer for analog input data.
- 64 single-ended or 32 differential or a combination of analog inputs
- 16-bit A/D converter, with up to 250 kHz sampling rate
- Auto calibration
- Onboard FIFO memory (1024 samples)
- PCI-Bus mastering data transfer
- Universal PCI Bus (support 3.3 V or 5 V PCI bus signal)
- BoardID™ Switch
| Analog Input | Sampling Rates(S/s) | 250k |
| Resolution (Bits) | 16 | |
| Unipolar Input (V) | 0 ~ 10, 0 ~ 5, 0 ~ 2.5, 0 ~ 1.25 | |
| Bipolar Inputs (V) | ±10, 5, 2.5, 1.25, 0.625 | |
| Channels | 64 | |
| Input Impedance | 100MO | |
| Type | Scan | |
| General | Operating Temperature | 0 ~ 60°C (32 ~ 140° F) |
| Power Consumption | Typical: 5V @ 850 mA ; Max: 5V @ 1 A | |
| I/O Connectors | 1 x 68-pin SCSI female connector | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt |
