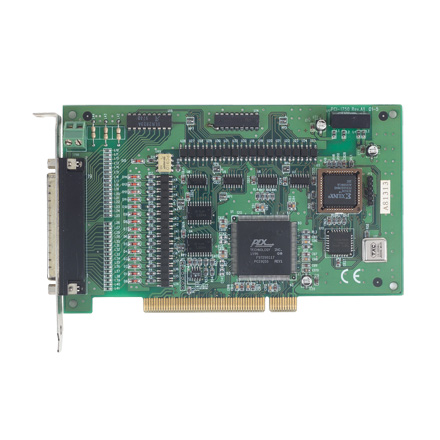

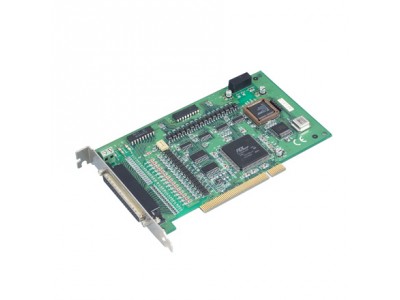

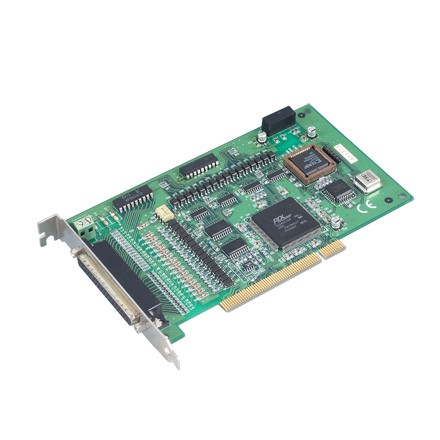

CIRCUIT BOARD, 32ch Isolated Digital I/O Card w/Counter (PCI-1750-BE)

by Advantech

Part #: PCI-1750-BE

View Detailed Description
  • In Stock (7)
  • Ships Within 1 - 2 Weeks
  • Free Shipping for most products over $125
  • View Datasheet



PCI-1750 offers 16 isolated digital input channels, 16 isolated digital output channels, and one isolated counter/timer for the PCI bus. With isolation protection of 2,500 VDC, and dry contact support, PCI-1750 is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the PCI-1750 corresponds to a bit in a PC I/O port. This makes PCI-1750 very easy to program. This card also offers a counter or timer interrupt and two digital input interrupt lines to a PC. So you can then easily do configurations by software.

  • 16 isolated DI and 16 isolated DO channels
  • High voltage isolation on all isolated channels (2,500 VDC)
  • High sink current on isolated output channels (200 mA/channel)
  • Supports dry contact or 5 ~ 50 VDC isolated inputs
  • Interrupt handling capability
  • Timer/counter interrupt capability
GeneralPower ConsumptionTypical: 5 V @ 850 mA, Max.: 5 V @ 1 A
I/O ConnectorsDB-37 female connector
Operating Temperature0~70° C (32~158° F)
Dimensions175 x 100 mm (6.9" x 3.9")
OS Support32-bit/64-bit Windows 7/8/10, and Linux
Programming LanguageC#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt
Isolated Digital I/OInput Channels16
Input Range5 ~ 50 VDC
Output Channels16
Output Ranges5 ~ 40 VDC
Timer/CounterResolutionOne 16-bit Optically-Isolated Counter
Max. Input Frequency1 MHz
