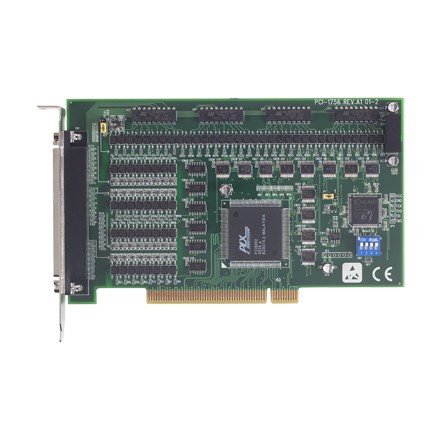

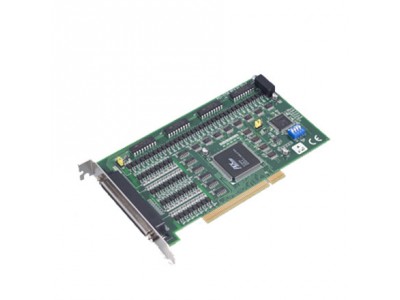

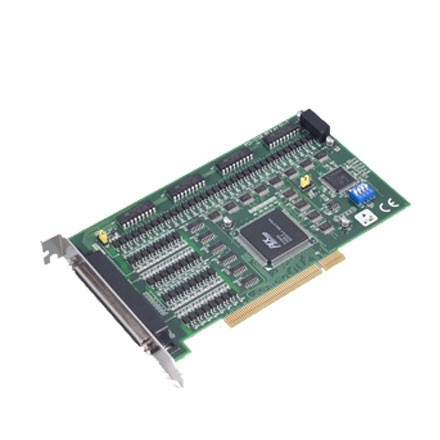

CIRCUIT BOARD, 64ch Isolated Digital I/O Card (PCI-1756-BE)

by Advantech

Part #: PCI-1756-BE


View Detailed Description
  • In Stock (5)
  • Ships Within 1 - 2 Weeks
  • Free Shipping for most products over $125
  • View Datasheet

$267.00

Qty:

64-ch Isolated Digital I/O PCI Card

  • Either ± voltage input for DI by group
  • High-voltage isolation input/output channels (2,500 VDC)
  • 2,000 VDC ESD protection for DI
  • High over-voltage protection (70 VDC) for DI
  • High-sink current on isolated output channels (200 mA max./channel)
  • Output status readback
  • Keeps output settings/ values after system hot reset
  • Interrupt handling capability
  • High-density 100-pin SCSI connector
GeneralPower ConsumptionTypical: 5 V @ 285 mA, Max.: 5 V @ 475mA
I/O Connectors100-pin SCSI-II female
Operating Temperature0 ~ 60°C (32 ~ 140°F)
BusPCI
Dimensions175 x 100 mm (6.9" x 3.9")
OS Support32-bit/64-bit Windows 7/8/10, and Linux
Programming LanguageC#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt
Isolated Digital I/OInput Channels32 (Sink)
Input Range10 ~ 50 VDC
Output Channels32 (Sink)
Output Ranges5 ~ 40 VDC
