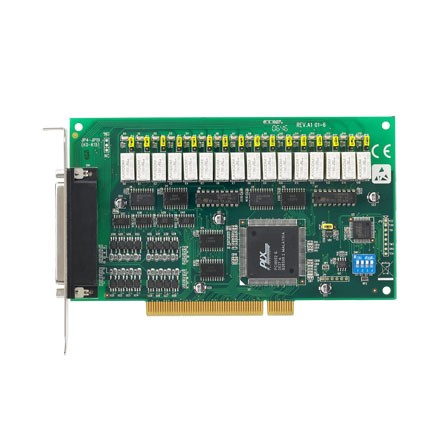

CIRCUIT BOARD, 16ch Relay & 16ch Isolated DI Card (PCI-1762-BE)

by Advantech

Part #: PCI-1762-BE


View Detailed Description
  • In Stock (5)
  • Ships Within 1 - 2 Weeks
  • Free Shipping for most products over $125
  • View Datasheet

$282.00

Qty:

The PCI-1762 relay actuator and isolated D/I card is a PC add-on card for the PCI bus. It provides 16 opto-isolated digital inputs with isolation protection of 2,500 VDC for collecting digital inputs in noisy environments, 16 relay actuators for serving as on/off control devices or small power switches. For easy monitoring, each relay is equipped with one red LED to show its on/off status. The PCI-1762’s sixteen optically-isolated digital input channels are ideal for digital input in noisy environments or with floating potentials.

  • 16 relay output channels and 16 isolated digital input channels
  • LED indicators to show activated relays
  • Jumper selectable Form A/Form B-type relay output channel
  • Output status read-back
  • Retain relay output values when hot system reset
  • High-voltage isolation on input channels (2,500 VDC)
  • High ESD protection (2,000 VDC)
  • High over-voltage protection (70 VDC)
  • Wide input range (10 ~ 50 VDC)
GeneralPower ConsumptionTypical: 5 V @ 250 mA, Max.: 5 V @ 620mA
I/O Connectors62-pin D-type female
Operating Temperature0 ~ 60°C (32 ~ 140°F)
BusPCI
Dimensions175 x 100 mm (6.9" x 3.9")
OS Support32-bit/64-bit Windows 7/8/10, and Linux
Programming LanguageC#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt
Isolated Digital I/OInput Channels16
Input Range10 ~ 50 VDC
Relay OutputMax. Switching Power125 VA, 15 W
Channels16
