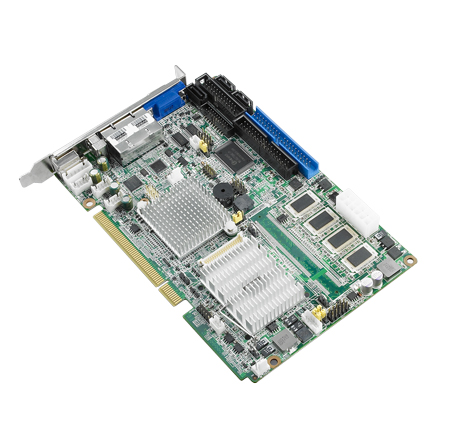

Intel Atom N450/D510, PCI Half-Sized SBC with Onboard DDR2/VGA/LVDS/Dual GbE/SATA/COM (PCI-7031D-S6A1E)

by Advantech

Part #: PCI-7031D-S6A1E


View Detailed Description

$308.00

Call for Availability

Intel® Atom™ N450/D510 PCI Half-size SBC with Onboard DDR2/VGA/LVDS/Dual GbE/SATA/COM

  • Ultra low power, fan-less N450 CPU and 1 GB on-board DDR2 667 memory (Only for N SKU)
  • Dual core high performance D510 CPU and maximum 2 GB DDR2 800 memory (Only for D SKU)
  • VGA/LVDS dual video outputs
  • Optional module for 4 x RS-485 w/ auto-flow control
  • Supports embedded software APIs and Utilities
CertificationEMCCE, FCC
DisplayControllerIntel Embedded Gen3.5+ GFX Core technology Integrated
Graphic MemoryShare with system memory up to 224 MB
Multiple DisplayDual
Display InterfaceVGA: Up to 2048 x 1563 LVDS: 18 bit, Up to 1366 x 768/ 1280 x 800
EnvironmentOperational Temperature0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature-40~ 85° C and 60° C @ 95% RH Non-Condensing
EthernetControllerLAN1: Intel 82579V LAN2: Intel 82583V
Speed 10/100/1000 Mbps
Connector2 x RJ45
Expansion InterfacePCI1
Form FactorForm FactorPCI half-size
I/OCOM Port2 (2 x RS232)
Compact Flash 1 x Type I/II Socket
Floppy1
GPIO-
IDE1
LPT1
PS/2 Keyboard/Mouse1
SATA3 x SATA II
System Fan-
USB2.06
Management Solution SoftwareSUSIAccess 2.0
MemoryTechnologyDDR2 667 MHz
CapacityUp to 2 GB (2 GB per DIMM)
ECC Support-
Socket1 x 200-pin SODIMM
Onboard Memory-
Physical CharacteristicsDimensions (LxW)185 x 122 mm (7.3" x 4.8")
Power Requirement Voltage+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total
Current0.31 A/2.19 A/0 A/0.2 A/0 A/0 A/ 14.87 W
Processor SystemCPUIntel Atom D510
CPU TDPUp to 13 W
FrequencyUp to 1.66 GHz
Core Number2
L2 Cache1 MB
BIOSAMI 16 MBit
ChipsetIntel ICH8M
Integrated GraphicsYes
FSB-
Rear I/O InterfaceUSB2.01
PS/21 (for mouse and keyboard, a Y cable is included in the package)
Ethernet2
VGA1
WatchDog TimerOutputSystem Reset
IntervalProgrammable 1~255 sec
