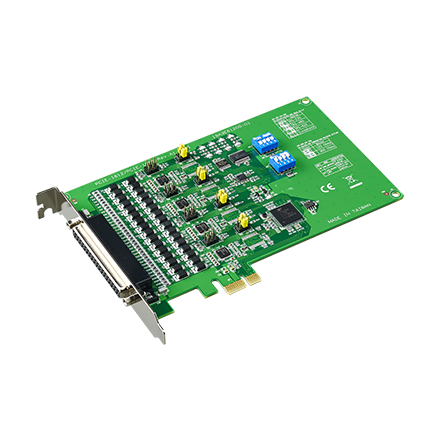

CIRCUIT BOARD, 4-port RS-232/422/485 PCIe Comm. Card (PCIE-1612B-AE)

by Advantech

Part #: PCIE-1612B-AE


View Detailed Description

$140.00

Call for Availability

4-port RS-232/422/485 PCI Express Communication Card w/Surge

  • PCI Express bus 2.0 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 4 x RS-232 or RS- 232/422/485 ports
  • Operating systems supported: Windows 2000/XP/Vista/7, Linux 2.4/ 2.6/ 3.x.x, QNX6.5 and Vxworks
  • XR17V354 UART with 256-byte FIFOs
CommunicationsRS-232V
RS-422V
RS-485V
Data Bits5,6,7,8
Stop Bits1,1.5,2
ParityNone, Even, Odd, Mark and Space
FIFO256 bytes
Communication ControllerXR17V352
Speed50 bps ~ 921.6 kbps, any baud rate setting
Data Flow ControlDTR/DSR,RTS/CTS, Xon/Xoff
EnvironmentOperating Temperature-10 ~ 60° C (14 ~ 144° F)
Storage Temperature-25 ~ 85°C (-13 ~ 185°F)
Operating Humidity5 ~ 95 % RH, non-condensing
GeneralPower Consumption260 mA @ +3.3 V (typ.)
Ports4
CertificationsCE, FCC, RoHS
Dimensions168 x 111 mm (6.6" x 4.4")
Connectors1x Female DB37
Bus InterfacePCIe
OS Support32-bit/64-bit Windows 7/8/10, and Linux
ProtectionSurge Protection1KV
EFT Protection1KV
ESD Protection15KV (air), 8KV (contact)
SoftwareBundled SoftwareICOM Tools
