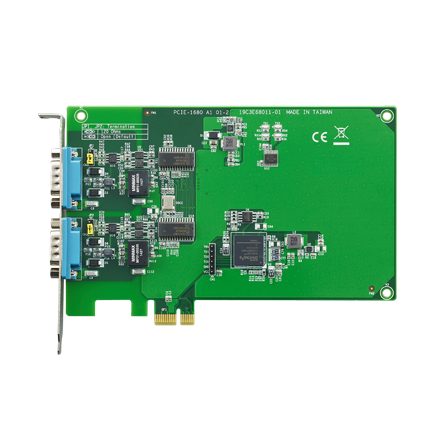

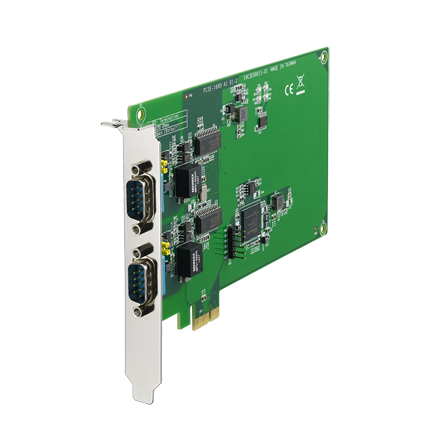

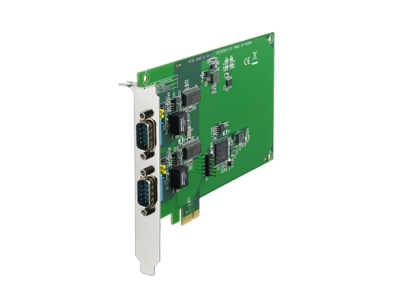

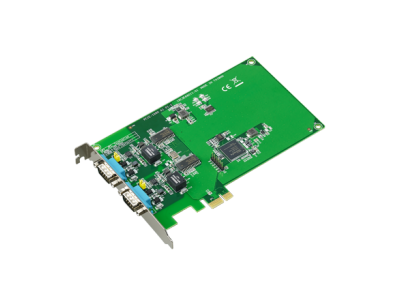

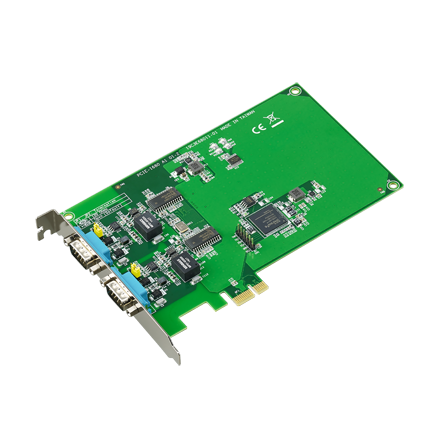

CIRCUIT BOARD, 2-Port CAN-Bus PCIE card w/ Isolation (PCIE-1680-AE)
by Advantech
•Part #: PCIE-1680-AE
View Detailed Description
$335.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The PCIE-1680 is a special purpose communication card that offers connectivity to Controller Area Networks (CAN) on your PC. With its built-in CAN controllers, the PCIE-1680 provides bus arbitration and error detection with an automatic transmission repetition. This drastically reduces the chance of data loss and ensures system reliability.You can run both CAN controllers independently at the same time. The PCIE-1680 operates at baud rates up to 1 Mbps.
- PCIe bus specification 1.2 compliant
- Operates two separate CAN networks at the same time
- High speed transmission up to 1 Mbps
- 16 MHz CAN controller frequency
- Optical isolation protection of 2,500 VDC ensures system reliability
- Windows DLL library and examples included
- Supports Windows CE5/CE6/XP/7 driver and utility
- Supports Linux 2.4.xx / 2.6.xx; Intel x86 hardware platform
| Communications | CAN Controller | NXP SJA-1000 |
| CAN Frequency | 16MHz | |
| CAN Transceiver | NXP TJA1051T | |
| Data Transfer Rates | Programmable up to 1 Mbps | |
| Protocol | CAN 2.0 A/B | |
| Signal Support | CAN_H, CAN_L | |
| Environment | Operating Humidity | 5-95% RH, non-condensing |
| Operating Temperature | 0 ~ 70°C (32 ~ 158°F) | |
| Storage Temperature | -40 ~ 85°C ( -40 ~ 185°F) | |
| General | Bus Type | PCI Express V1.0 |
| Certification | CE, FCC | |
| Connectors | 2x Male DB9 | |
| Dimensions (L x W) | 168 x 100 mm (6.6" x 3.9") | |
| Ports | 2 | |
| Power Consumption | 3.3 V @ 600 mA (Typical) | |
| Protection | Isolation Protection | 2,500 VDC |
