16-Channel PCIE Multifunction Card, 12bit, 800kS/s (PCIE-1810-AE)
by Advantech
•Part #: PCIE-1810-AE
View Detailed Description
$395.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

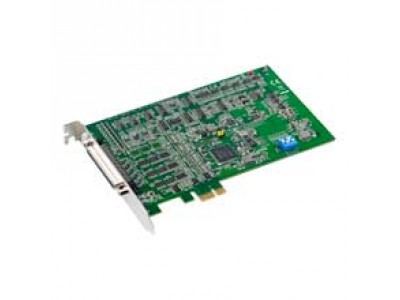

The PCIE-1810 is a multifunction PCI Express card that includes digital I/O, analog I/O and counter functions. It also features a 800KS/s 12-bit A/D converter and supports analog trigger for A/D data accquisition.
- 16 analog inputs, up to 800 KS/s, 12-bit resolution
- 2 analog outputs, up to 500 KS/s, 12-bit resolution
- Support for digital trigger and analog trigger (AI only)
- 24 programmable digital I/O lines, Two 32-bit programmable counter/timers
- Onboard FIFO memory ( 4 K samples)
- Automatic channel/ gain scanning
- Support for Microsoft Windows 7/XP
| Analog Input | Sampling Rates(S/s) | 800 k |
| Resolution (Bits) | 12 | |
| Channels | 16 | |
| Unipolar Input (V) | 0~10, 0~5, 0~0.25, 0~1.25 | |
| Bipolar Inputs (V) | ±10V, ±5, ±2.5, ±1.25, ±0.625 | |
| Input Impedance | 1 GO | |
| Trigger Mode | Start trigger, Delay to Start trigger, Stop trigger, Delay to Stop trigger | |
| Overvoltage Protection | 30 Vp-p | |
| Type | Scan | |
| Analog Output | Channels | 2 |
| Resolution(Bits) | 12 | |
| Output Ranges | 0 ~ +10 V, 0 ~ +5 V -5V ~ +5 V -10 V ~ +10 V | |
| Update Rate(S/s) | 500 k | |
| General | Power Consumption | Typical: 3.3 V @ 488 mA; Max.: 3.3 V @ 2.25 A |
| I/O Connectors | 68-pin SCSI female connector | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140°F) (refer to IEC 60068-2-1, 2) | |
| Bus | PCIe | |
| Dimensions | 167 x 100 mm | |
| Triggering | 12 bits Analog x 2 / Digital x 2 | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Timer/Counter | Resolution | 32 bits |
| Max. Input Frequency | 10 MHz | |
| Channels | 2 | |
| TTL DI/O | Input Channels | 24 (shared) |
| Output Channels | 24 (shared) |
