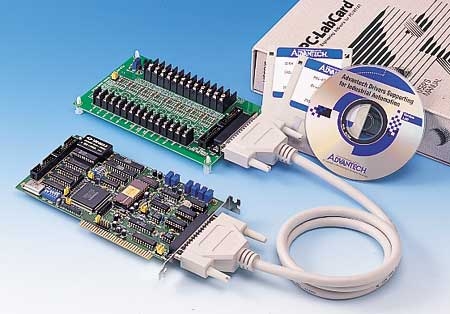

16-Channel High-gain Multifunction ISA Card, 100 kS/s, 12bit (PCL-818HG-CE)

by Advantech

Part #: PCL-818HG-CE


View Detailed Description

$595.00

Call for Availability

The PCL-818L series was designed for entry-level models to the PCL-818 series. The cards have been designed with the cost-sensitive customer in mind, but still offers the same functions as the rest of the series, except that they have a 40 kHz sampling rate and only accepts bipolar inputs. They are fully software and connector compatible with the PCL-818HD and PCL-818HG. This lets you upgrade your applications to these higher performance cards without hardware or software changes.The PCL-818LS bundle consists of the PCL-818L card, the PCLD-8115 wiring terminal board and a DB37 cable assembly. The PCLD-8115 accommodates onboard passive signal conditioning components (resistors and capacitors), allowing you to easily implement a low-pass filter, a voltage attenuator or a 4 ~ 20 mA voltage converter.

  • 16 single-ended or 8 differential analog inputs
  • 12-bit A/D converter, with up to 100 kHz sampling rate
  • Programmable gain
  • Automatic channel/gain scanning
  • Onboard FIFO memory (1024 samples, PCL-818HD/HG only)
  • One 12-bit analog output channel
  • 16 digital inputs and 16 digital outputs
  • Onboard programmable counter
Analog InputBipolar Inputs (V)±10, 5, 1, 0.5,0.1, 0.05, 0.01, 0.005
Channels16 SE/8 Diff
Resolution 12 bits
Sampling Rates100 kS/s
Unipolar Input (V)0~ 10, 0~1 0~0.1, 0~0.01
Analog OutputResolution12 bits
Digital I/ODigital Input Channels16
Digital Output Channels16
GeneralBusISA
Timer/CounterResolution16 bits
Time Base10 MHz
