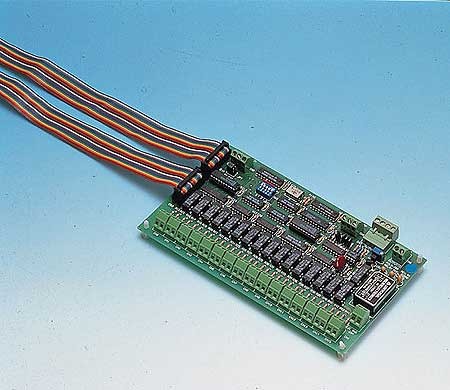

Relay Scanner/multiplexer Board (PCLD-788-AE)
by Advantech
•Part #: PCLD-788-AE
View Detailed Description
$250.00
PCLD-788 multiplexes 16 channels into a single I/O channel of an A/D converter, voltmeter or IEEE-488-based instrument. Up to 16 PCLD-788s can be cascaded for a total of 256fully-isolated differential channels. The PCLD-788 can be controlled by any PC-LabCard™ product via a 16-bit 20-pin digital output port, found on cards such as the PCL-711B,PCL-812PG or the PCL-818 series.Channel selection (0-15) and board selection (0-15) are done by programming the high-order four bits and low order four bits of a digital output byte from the main I/O card in use.
- 16 to 1 channel expansion
- Differential and fully isolated multiplexing
- Break-before-make relay control
- “Channel closed” signal for precise A/D triggering
- Up to 16 PCLD-788s can be cascaded for 256 channels
- Easy wiring for large channel count configuration
- Onboard cold-junction circuitry for thermocouple measurement
