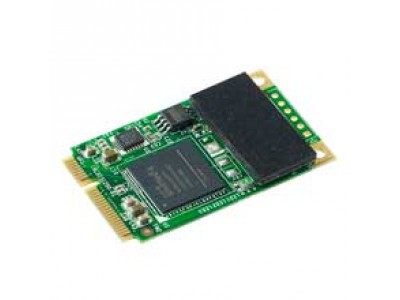

2MB Industrial MRAM Mini-PCIe Card (PCM-2300MR-AE)
by Advantech
•Part #: PCM-2300MR-AE
View Detailed Description
$199.00
iDoor Module: MR4A16B, MRAM, 2 MByte, mPCIe The PCM-23 series is categorized as Industrial storage or memory modules for the mPCIe interface which is able to extend connection to the connector through iDoor technology with different functions. They are all compatible with the PCI Express® Mini Card Specification Revision 1.2. including Isolated / Non-Isolated RS-232/422/485 communication cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless communication models for data exchange during the management and machine level of automation application, Zigbee module as an IoT terminal or controller and PoE function for smart camera in detect inspection application of production. This is a flexible design that enables customers to customize their features which meet iDoor Technology.
- Meets Advantech Standard iDoor Technology
- PCI Express® Mini Card Specification Revision 1.2 compliant
- 2MB MRAM Storage, Data always non-volatile for >20-years at temperature
- Read / Write Memory speed 6 MB/Sec
- I/O address automatically assigned by PCIe plug & play
| Environment | Operating Temperature | -20 ~ 60°C (-4 ~ 140°F) |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | |
| Operating Humidity | 5-95% RH, non-condensing | |
| Maximum magnetic field immunity during write | 8000 A/m | |
| Maximum magnetic field during read or standby | 8000 A/m | |
| General | Power Consumption | Typical : +3.3V @ 150mA |
| Certifications | CE, FCC class A | |
| Dimensions | Module: 51 x 30 x 12.4mm (2" x 1.18" x 0.49"), I/O Plate: 81 x 19.4 x 41mm (3.19" x 0.76" x 1.61") | |
| Bus Type | PCI Express Mini Card Revision 1.2 | |
| Memory | Memory | Everspin MR4A16B |
| Size | 2 MB | |
| Read/Write Speed | 6 MB/sec | |
| Software | Driver | Microsoft® Windows CE5/CE6 Microsoft® Windows Enterprise Server 2008 Microsoft® Windows Embedded Standard WES7/2009 Microsoft® Windows XP/7 |
