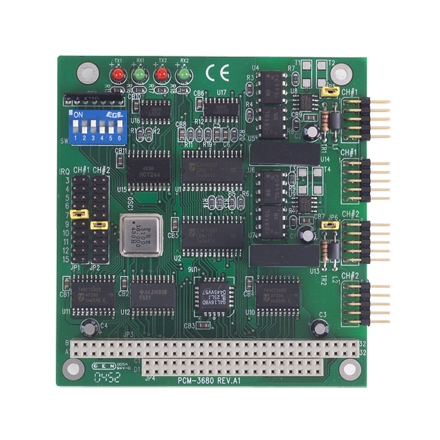

Dual Port Isolated CAN Module (PCM-3680-BE)
by Advantech
•Part #: PCM-3680-BE
View Detailed Description
$128.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The PCM-3680 is a special purpose communication module which offers connectivity of the Controller Area Network to your PC. With the built-in CAN controller, the PCM-3680 provides bus arbitration and error detection with automatic transmission repeat function.
- Operates two separate CAN networks at the same time
- High speed transmission up to 500 kbps
- 16 MHz CAN controller frequency
- Optical isolation protection of 1000 VDC ensures system reliability
- Wide IRQ selection for each port: IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 15
- LEDs indicate Transmit/Receive status on each port
- Direct memory mapping enables very fast access to the CAN controllers
- Windows DLL library and examples included
- Supports Windows 95/98/2000/XP and Linux
| Communications | CAN | V |
| Display | Ports | 2 |
| Network | Cable Connector Type | DB9 Male |
| Protection | Isolation Protection | 1000 VDC |
