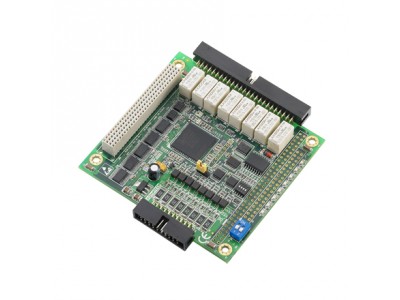

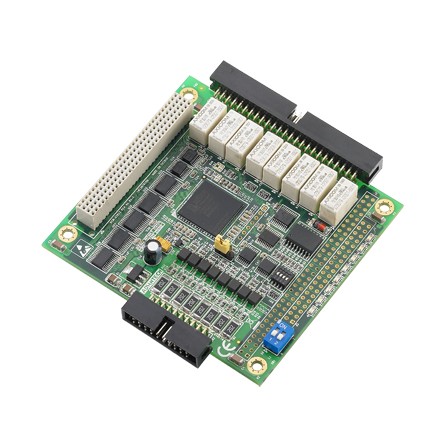

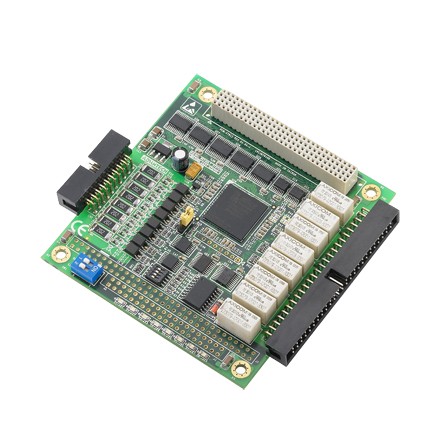

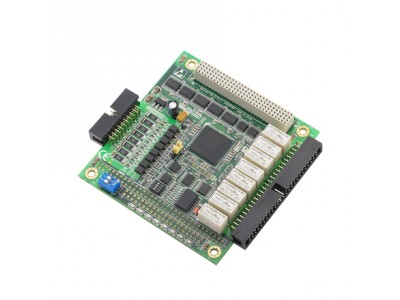

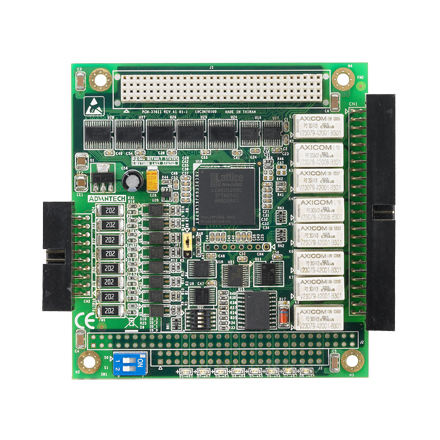

PCI-104 8-ch Relay & 8-ch Isolated DI Card (PCM-3761I-AE)

by Advantech

Part #: PCM-3761I-AE

View Detailed Description



PCM-3761I, an 8-ch Relay and 8-ch Isolated Digital Input PCI-104 card, not only features 8 Form C type relay channels and 8 channels of digital input with isolated protection, but also delivers reliable operation and the fast new PCI-104 form factor for machine and production automation purposes.

  • 8 Form C type relay output channels
  • Retained relay output values when hot system reset
  • High-voltage isolation on input channels (2,500 VDC)
  • Wide input range (5 ~ 30 VDC)
  • Interrupt handling capability
Isolated Digital I/OInput Channels8
Input Range5 ~ 30 VDC
Output Channels8 x Form C
Output Ranges0.25A @
240 VAC
1A @ 30 VDC
