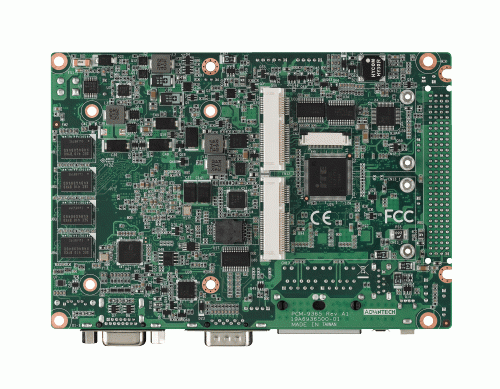

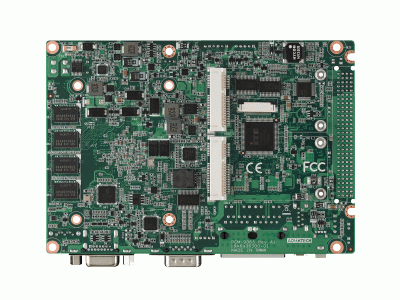

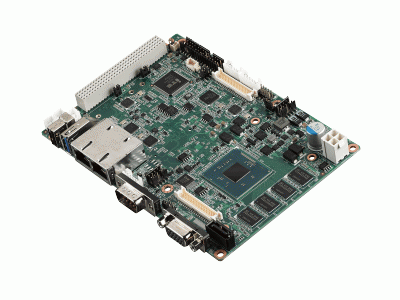

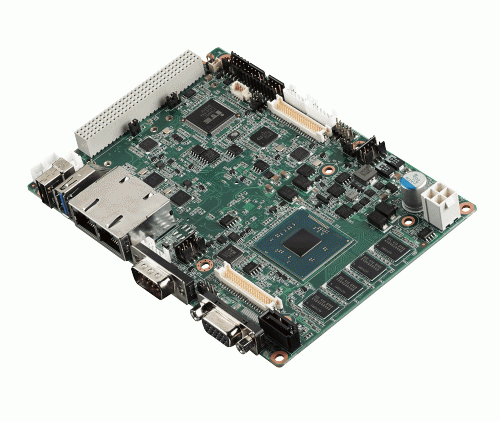

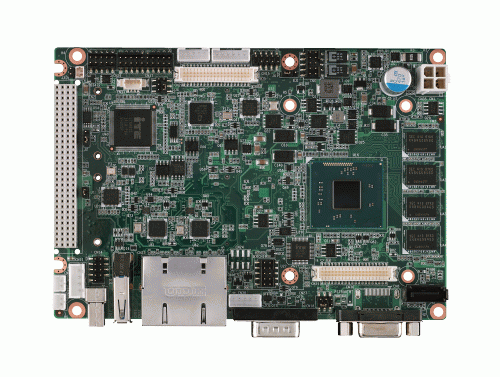

Intel Atom E3825 3.5" Compact SBC with PCI-104 2G RAM/VGA+LVDS (Wide Temp -40 ~ 85° C) (PCM-9365EZ22GS3A1E)

by Advantech

Part #: PCM-9365EZ22GS3A1E


View Detailed Description

$420.00

Call for Availability

Intel® Atom™ E3825 & Celeron® N2930, 3.5" SBC, 2GB/4GB On-board Memory, VGA, 48-bit LVDS, 2GbE, Mini PCIe, PCI-104, iManager

  • Intel® Atom™ E3825 with DDR3L-1066/1333MHz 2GB/4GB on-board memory
  • DirectX11, OpenGL3.2, OpenCL1.1, 3 independent display: VGA+LVDS/HDMI+LVDS*/Dual LVDS
  • Support PCI-104 expansion
  • 2 GbE, rich I/O: 4COM, SATA, USB3.0, SMBus/I2C, GPIO, full-size Mini PCIe,full-size mSATA
  • Supports iManager, SUSIAccess and Embedded Software APIs
AudioCODECRealtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
DisplayControllerIntel Gen7 graphic engine
Processor GraphicsDirectX11, OpenGL3.2, OpenCL1.1;Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2
VGA2560 x 1600 at 60Hz
LVDS48-bit dual LVDS up to WUXGA 1920 x 1200 at 60Hz, the 2nd LVDS is supported by request; Supports 3.3/5/12V for VDD power, 1A@5V/12V for inverter
HDMIHDMI 1.4a for HD video playback, 1080P at 60Hz
Multiple DisplayVGA + LVDS, HDMI*+ LVDS, LVDS + LVDS*
EnvironmentOperational Temperature-40 ~ 85° C (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature-40° C ~ 85° C and 60° C @ 95% RH non-condensing
EthernetSpeed10/ 100/ 1000 Mbps
ControllerRealtek RTL8111E-VL-CG
Connector2 x RJ-45
ExpansionMini PCIe1 x Full-size
PCI-1041
Internal I/OSerial3 RS-232 (ESD protection: Air gap ±15kV, Contact ±8kV)
USB2.04
I2C1 (Shared with SMBus pin)
SMBus1
GPIO8-bit
MemoryTechnologyDDR3L 1066 MHz
Max. Capacity4GB
Onboard Memory2GB
Physical CharacteristicsDimensions (L x W)146 x 102 mm (5.7" x 4"), same as 3.5"
Weight0.54kg (1.19lb), weight of total package
HeightTop Side: 19.5 mm; Bottom Side: 7.8 mm; PCB: 1.6 mm
PowerPower TypeSingle 12V DC power input
Power Supply Voltage12V ± 10%
Power Consumption (Typical)0.39A @ 12V (4.68W)
Power Consumption(Max, test in HCT)0.49A @ 12V (5.88W)
Power ManagementACPI
BatteryLithium 3 V / 210 mAH
ProcessorCPUIntel Atom E3825
Burst Frequency1.33 GHz (Dual-Core)
Max Turbo FrequencyN/A
L2 Cache1 MB
BIOSAMI UEFI BIOS at 64 Mb

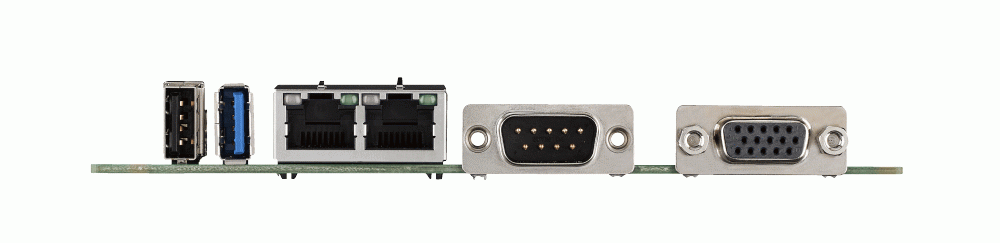

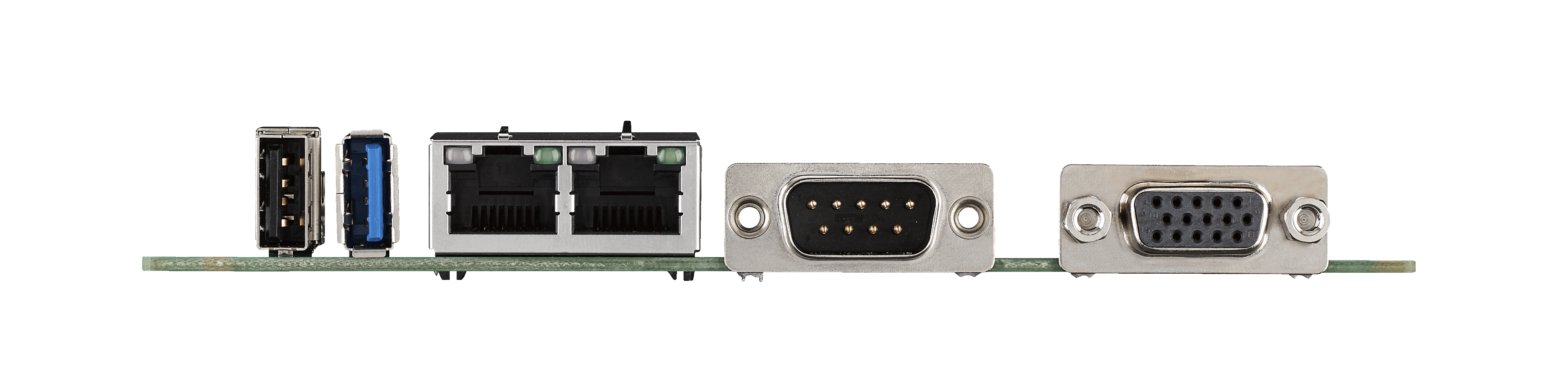

Rear I/OEthernet2 (10/100/1000Mbps)
VGA1
HDMI1 (support by request)
USB 2.01
USB 3.01
Serial1 RS232/422/485 support auto flow control
StorageSATA1, up to 3Gb/s (300 MB/s)
mSATA1 x Full-size
Watchdog TimerOutput System reset, Programmable counter from 1 ~ 255 minutes/ seconds
