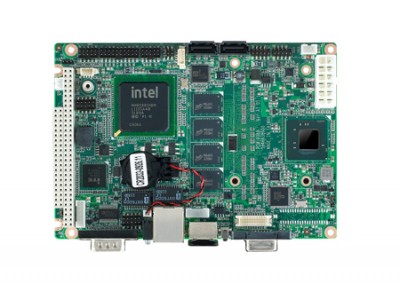

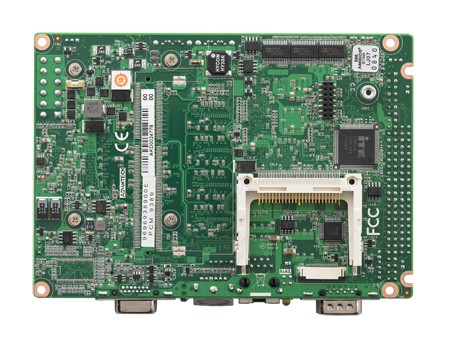

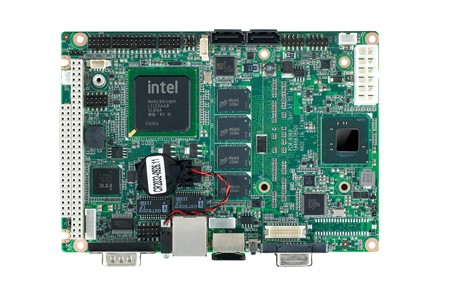

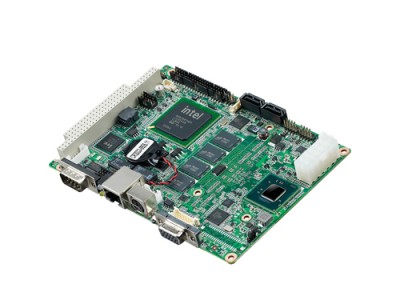

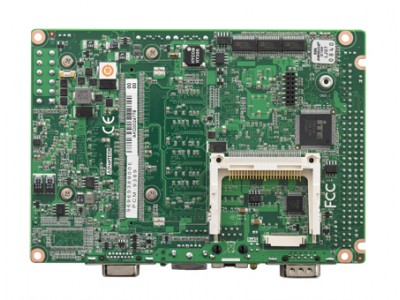

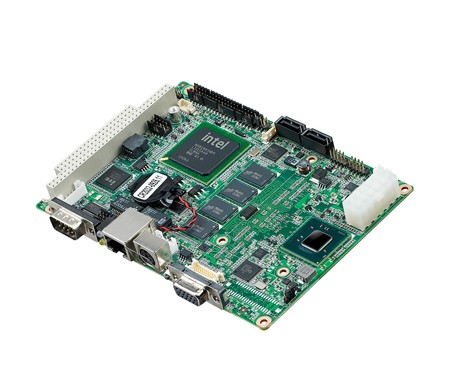

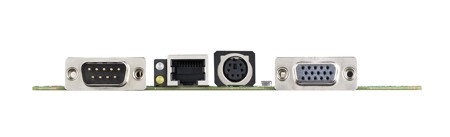

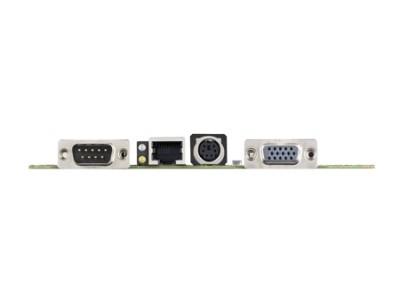

Intel Atom D525 3.5" SBC with VGA+LVDS, Audio, SATAII (PCM-9389D-S8A1E)
by Advantech
•Part #: PCM-9389D-S8A1E
View Detailed Description
$295.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Intel® Atom™ N455/D525 3.5" SBC, DDR3 SODIMM/on-board SDRAM, 24-bit LVDS/TTL, VGA, 2 GbE, LPC, CF, PC/104, iManager
- Intel® Atom D525 1.8 GHz processor + ICH8M
- DDR3 SO-DIMM memory up to 4GB
- High performance with legacy PC/104 support platform
- Dual independent display by VGA + LVDS (VGA + TTL on request)
- Rich I/O interface with 4 x COM, 2 x SATAII, 4 x USB and GPIO
- Internal LPC connector available to support four extra COM ports
- Supports Advantech iManager 2.0 and Utilities
| Audio | Audio Interface | HD Audio |
| CODEC | Realtek ALC892, High Definition Audio (HD) | |
| Connector | pinheader (Line-in, Line out, Mic-in) | |
| Certification | EMC | CE, FCC |
| Display | Controller | Intel Atom D525 |
| Graphic Engine | Intel 3.5 Gen. DX9, MPEG2 Decode in HW, Embedded Gen3.5+GFX Core | |
| Graphic Memory | Share with system memory up to 224 MB | |
| VGA | Support SXGA up to 2048 x 1536 | |
| LCD (TTL/LVDS/eDP) | Support single channel 18/24-bit LVDS up to WXGA 1366x768 TTLsupportetd by request | |
| Multiple Display | Dual | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Ethernet | Controller | GbE1: Intel 82567V GbE2: Intel 82583V |
| Speed | 10/100/1000 Mbps | |
| Connector | RJ45 on Ethernet1, box header on Ethernet2 | |
| Expansion | LPC | 1 |
| SMBus | 1 (shared with I2C) | |
| I2C Bus | 1 (shared with SMBus) | |
| PC/104 | 1 | |
| Form Factor | Form Factor | 3.5" CPU Boards |
| I/O | USB2.0 | 4 |
| GPIO | 1, 8-bit GPIO | |
| COM Port | 4 (3xRS-232, 1xRS-232/422/485) | |
| Keypad | 1 | |
| Smart Fan | 1 | |
| Memory | Technology | DDR3 800MHz |
| Max. Capacity | 4GB | |
| Socket | 1 x 204-pin SODIMM | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| SUSIAccess | SUSI 3.0 | |
| Physical | Dimension (mm) | 146 x 102 mm |
| Weight | 0.64kg (1.41 lb), weight of total package | |
| Construction | Aluminum with fan design | |
| Power | Power Type | AT/ ATX |
| Power Supply Voltage | 5V±5% (+12V option for LCD, PC/104) | |
| Connector | 2x6pin power connector | |
| Power Consumption (Idle) | 1.94 A @ 5 V (9.7 W) | |
| Power Consumption (Full Load) | 2.9 A @ 5 V (14.5 W) | |
| Battery | Lithium 3 V / 210 mAH | |
| Processor | CPU | Intel Atom D525 |
| CPU TDP | 13 W | |
| Frequency | 1.8 GHz | |
| Core Number | 2 | |
| L2 Cache | 1 MB | |
| BIOS | AMI EFI 16Mbit | |
| Chipset | Intel ICH8M | |
| Storage | SATA | 2 x SATAII (Max. Data Transfer Rate 300 MB/s) |
| CompactFlash | CompactFlash Type I/II (Primary Master IDE Channel) | |
| Watchdog Timer | WatchDog Timer | Yes |
