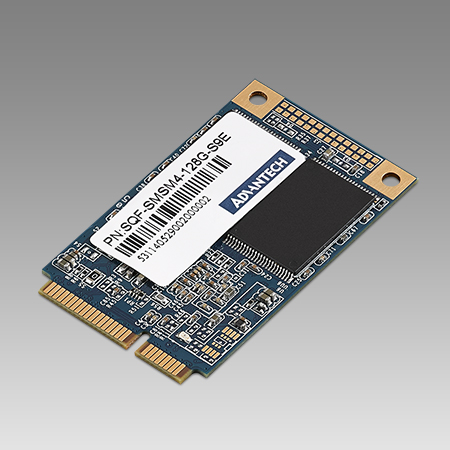

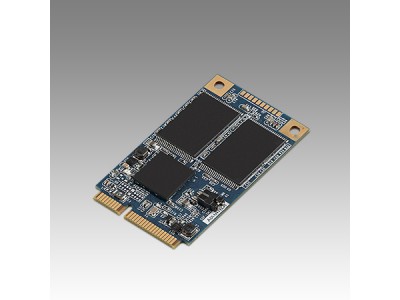

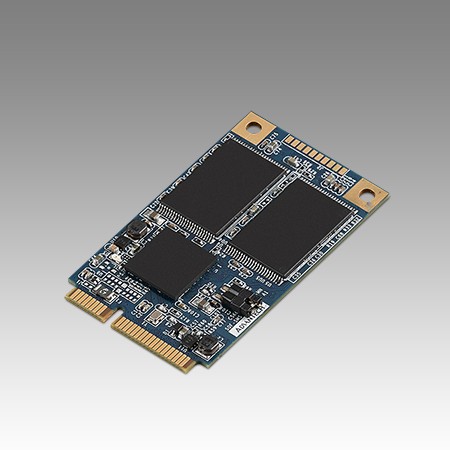

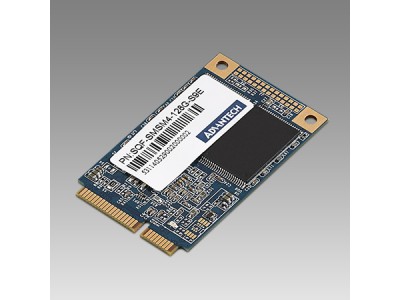

SQF MSATA 630 128G MLC (SQF-SMSM4-128G-S9C)
by Advantech
•Part #: SQF-SMSM4-128G-S9C
View Detailed Description
$115.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Advantech SQFlash 630 series mSATA delivers all the advantages of Flash Disk technology with the Serial ATA III (6.0Gb) interface, fully compliant with standard mSATA form factor. The SQF-SMS is based on the mSATA form factor which is generated by JEDEC and could provide a wide range capacity from 1GB to 64GB for SLC and 4GB to 256GB for MLC which delivers the read / write performance up to 480MB/s and 180MB/s.
- Supports Fragment Writing Technology and Flush Manager
- Support hardware write protect
- GUI management tool & software API package
- Shock resistance, anti-vibration and low power consumption
- Low power consumption SATA III storage module
- Supports 72 bit ECC correct per 1K Byte data
- Compliant with SATA III and SATA v 3.0 standard
- MO-300 mSATA Module
| SQFlash | Interface | SATA |
| Transfer Protocol | SATA III (6.0Gb) | |
| Connector | Mini PCIe with SATA pin-out | |
| Flash Type | MLC | |
| Capacity | 128 GB | |
| Operational Temperature | 0 ~ 70 °C | |
| SQFlash Utility | Support | |
| Shock | 1,500G, Peak / 0.5 ms | |
| Vibration | 20G, Peak / 80 ~ 2,000 Hz |
