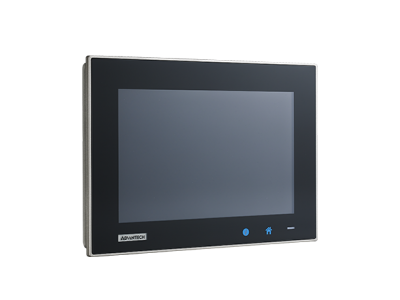

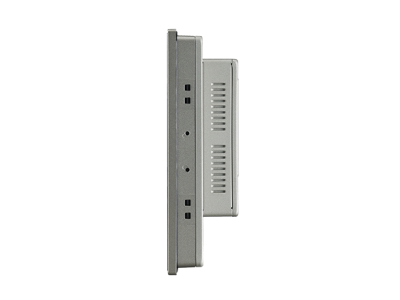

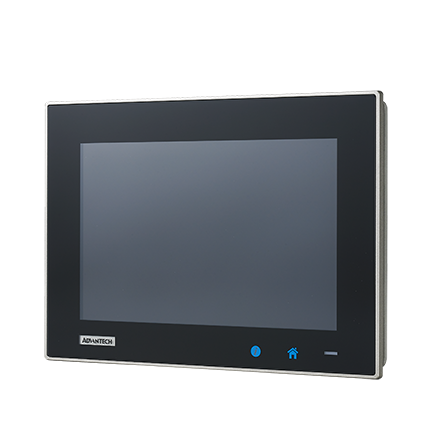

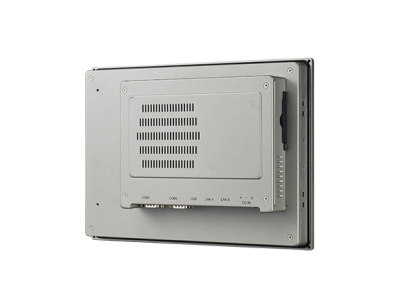

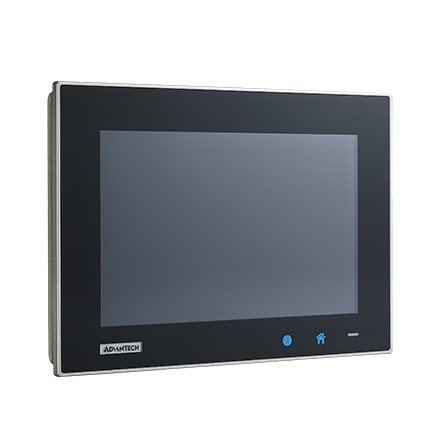

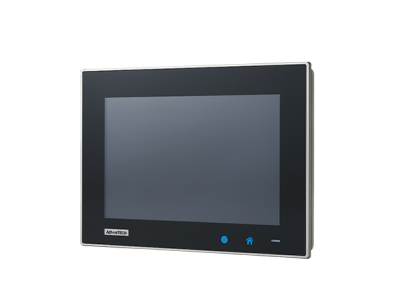

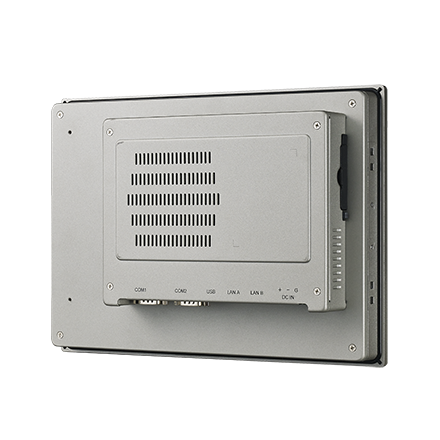

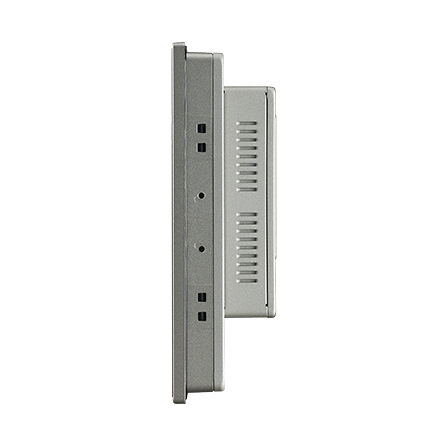

COMPUTER SYSTEM, 10.1 Touch Panel Computer Atom E3827 4G DDR3 PCT (TPC-1051WP-E3AE)

by Advantech

Part #: TPC-1051WP-E3AE


View Detailed Description

$1,130.00

Qty:

  • Industrial 10.1 TFT LCD with 25K Lifetime LED Backlight
  • Intel® Atom™ E3827 1.75 GHz Processor with 4GB DDR3L SDRAM
  • 16:9 Wide Screen with PCT Multi-Touch
  • IP66 Approved Front Protection & Panel Mounting
  • Built-in Intelligent Home key and i Key for an intuitive user interface
  • Front LED Indicator to Show Operating Status
  • Supports iDoor with optional accessory kit
  • Chassis Grounding Protection
  • Anti-scratch surface: 7H hardness
  • AC/DC support (option by Power adapter)
  • Supports Advantech SNMP Subagent
  • Supports Advantech SusiAccess Remote Device Management Software
EnvironmentHumidity10 ~ 90% RH @ 40°C, non-condensing
Ingress ProtectionFront panel: IP66
Operating Temperature-20 ~ 55°C (-4 ~ 131°F)
Storage Temperature-30 ~ 70°C (-22 ~ 158°F)
Vibration ProtectionWith HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
GeneralBIOSAMI UEFI
CertificationsBSMI, CCC, CE, FCC Class A, UL
Cooling SystemFanless design
Dimensions (W x H x D)283.1 x 202.3 x 61.4 mm ( 11.15" x 7.96" x 2.42)
EnclosureFront bezel: Die-cast Aluminum alloy, Back housing: SECC
MountingDesktop, Wall, Panel Mount, and VESA mount ((with optional kit))
OS SupportMicrosoft® Windows WES7 32bit/64bit / Windows 7 32bit/64bit / Win EMB 8.1 Industry Pro
Power Consumption36 W (typical)
Power Input 24VDC ±10%
Watchdog Timer1 ~ 255 sec (system)
Weight (Net)2.56 kg (5.64 lbs)
LCD DisplayContrast Ratio1300:1
Display Size10.1"
Display TypeXGA TFT LED LCD
Luminance (cd/m2)300
Max. Colors262 K
Max. Resolution1280 x 800
Viewing Angle (H/V°)170/170
System HardwareCPUIntel® Atom™ E3827 1.75 GHz Processor
Expansion SlotsFull-size Mini PCI-E

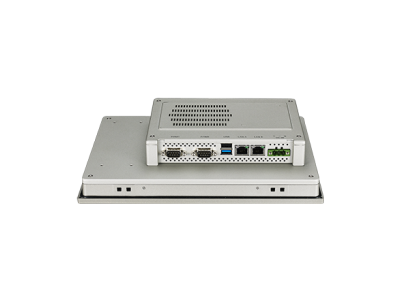

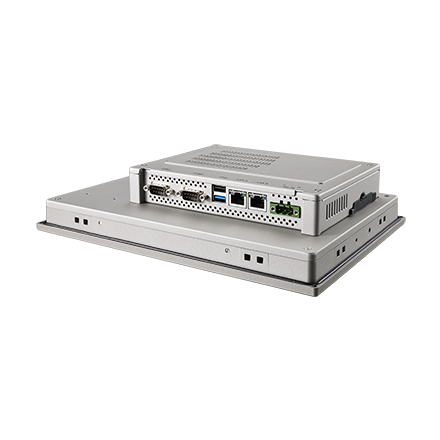

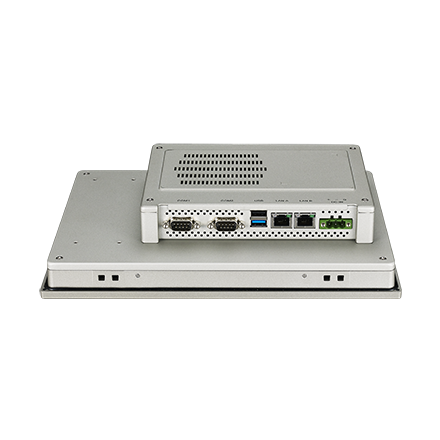

I/ORS-232 x 1, RS-232/422/485 x 1, USB3.0 x 1, USB2.0 x 1
LAN10/100/1000Base-T x 2
Memory4GB (8GB optional) DDR3L 1600MHz SO-DIMM
StorageCFast slot x 1, 2.5" SATA HDD x 1(optional)
TouchscreenLight Transmission90% ± 3%
Resolution2048 x 2048
TypeProjected capacitive

Be the first to review this product!

Write a review

Note: HTML is not translated!
0 1 2 3 4 5

Product Questions & Answers

Still not finding what you're looking for? Try .
A:

This TPC-1051WP-E3AE unit has not been tested with Linux yet and has not been added to Advantech's Linux image. It has a Bay trail CPU, so it should work with Ubuntu. If you have any additional questions regarding this, feel free to contact me at jeremy.miller@l-tron.com.

by on

A:

Yes, the Advantech TPC-1051WP-E3AE unit has one USB 3.0 port.

by on
