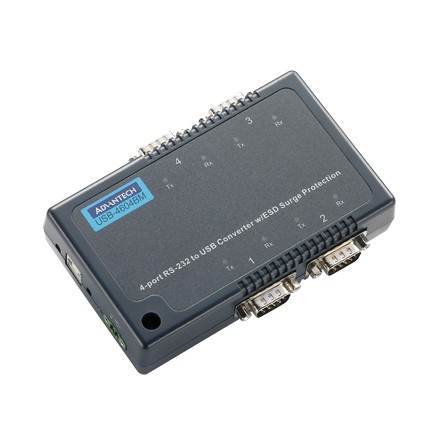

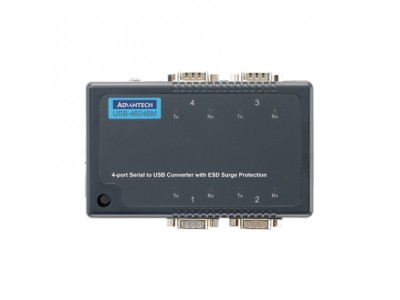

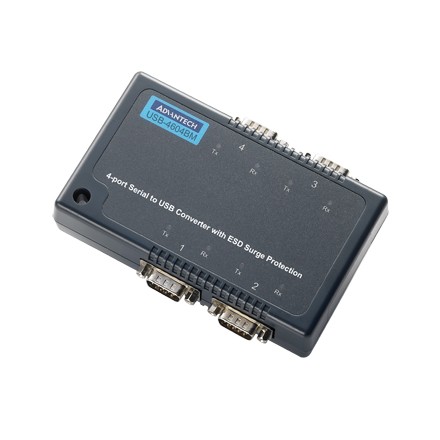

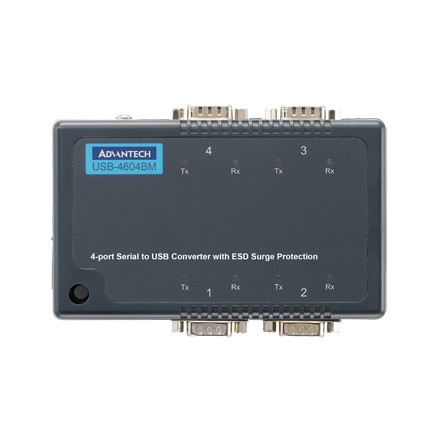

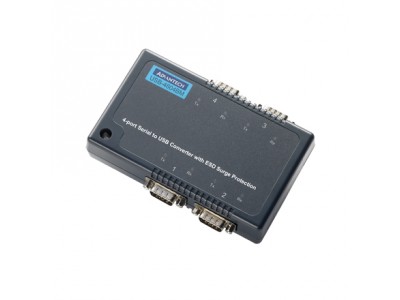

4 Port RS-232/422/485 to USB Converter with Surge Protection (USB-4604BM-AE)
by Advantech
•Part #: USB-4604BM-AE
View Detailed Description
$310.00
USB-4604 series allows PC users to connect a serial device to a system that use a USB interface. To attach the USB-4604B/4604BM to a PC, you don’t need to open the chassis or power down your PC. Instantly get extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. This makes the USB-4604B/4604BM especially suitable for modems, printers, POS systems and industrial control devices. Supporting USB2.0 high speed, USB-4604B/4604BM features several powerful functions such as high-speed 921.6 kbps transmission, support for various operating systems, independent RS-232/422/485 ports and more. By simply plugging in a USB hub, USB-4604B and USB-4604BM eliminates the configuration issues associated with high-priced, older card solutions. You only have to install the drivers, no need to set cards slots, IRQ addresses, DMA channels, or device addresses. This reduces programming effort.
- Full compliance with USB V1.1 and V2.0 specifications.
- RS-232/422/485 port supported
- Transmission speed up to 921.6 kbps
- Automatic RS-485 data flow control
- Bus-powered; no need for external power supply
- Plug & Play installation
- No additional IRQs or I/O ports required
- Hot swap function supported
| Connector | Serial | DB9 |
| USB | Type B | |
| Display | Interface | USB 1.1/2.0 |
| Protection | Surge Protection | 2500 VDC |
| Serial Communication | Ports | 4 |
| Type | RS-232/422/485 | |
| Software | Baud Rate | 50 ~ 921.6 Kbps |
| Driver | Windows 2000/XP/2003, CE5.0 |
