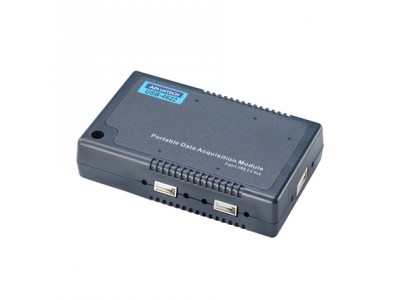

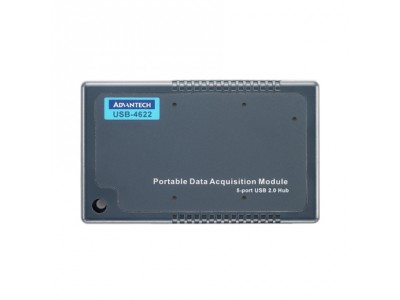

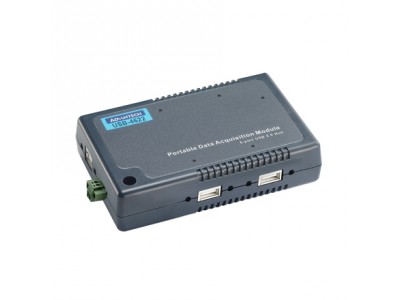

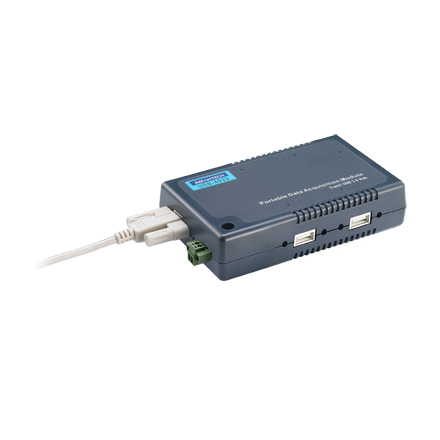

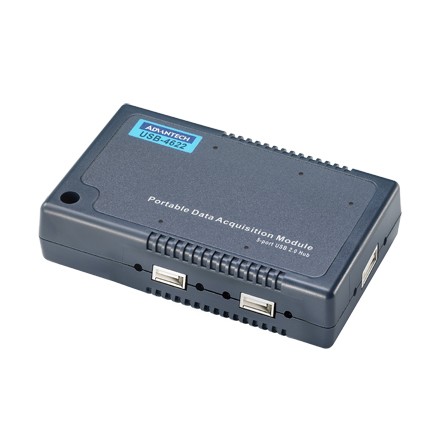

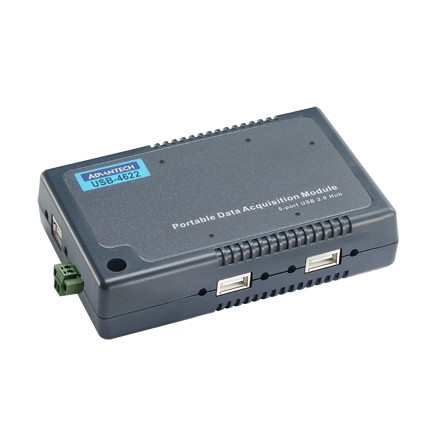

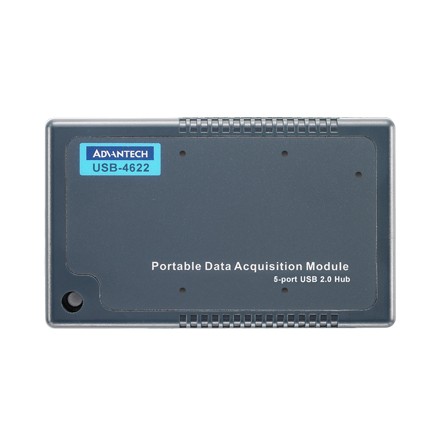

5-port High-speed USB 2.0 Hub (USB-4622-CE)
by Advantech
•Part #: USB-4622-CE
View Detailed Description
$195.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
USB-4622 is a USB 2.0 hub capable of connecting at most 5 USB salve modules. It supports the USB 2.0 high-speed mode that can achieve 480Mbps data transmitting rate, realizing the USB-4700 series' high performance for heavy-loaded applications. The Advantech's unique lockable cable design secures the slave module connections, preventing the cable from being unplugged accidently.
- 5 downstream USB 2.0 ports
- Compatible with USB 2.0 High-speed, USB 2.0 Full-speed, USB 1.0
- 480 Mbps high-speed data transfer
- LED indicator
- Suitable for DIN-rail mounting
- One lockable USB cable included
- 10 ~ 30 VDC power input (power adapter not included*)
| General | Power Consumption | 24 V @ 36 mA |
| Bus | USB 2.0 | |
| Ports | Upstream x 1 (Type B); Downstream x 5 (Type A) | |
| Supply Current | 500 mA max. per channel | |
| Compatibility | USB 2.0 High-speed, USB 2.0 Full-speed, USB 1.0 | |
| Transfer Speed | 480 Mbps/12 Mbps/1.5 Mbps | |
| DC Power Input | 10 ~ 30 VDC | |
| Dimensions | 132 x 80 x 32 mm (5.2" x 3.15" x 1.26") |
