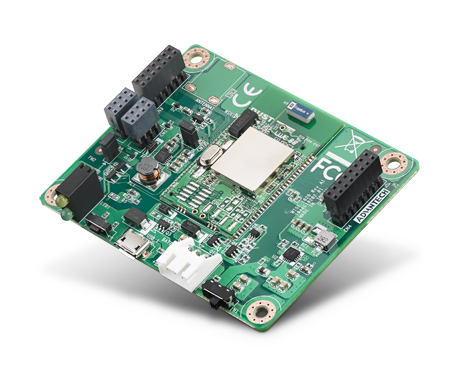

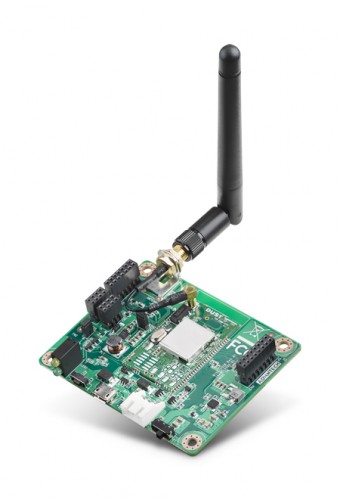

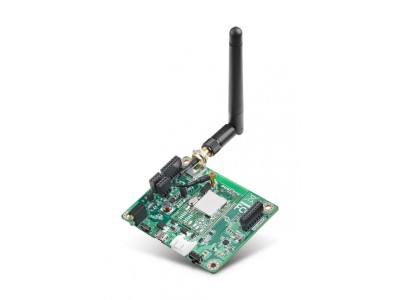

Wireless IoT Node with SMA connector and antenna (WISE-1020-0S01E)

by Advantech

Part #: WISE-1020-0S01E


View Detailed Description

$120.00

Call for Availability

WISE-1020 series is a wireless IoT node with Linear/Dust Network ARM Cortex-M3 Processor, which is a self-forming and self-healing mesh network complaint to 6LoWPAN and IEEE802.15.4e standard. With time synchronization, channel hopping and full mesh network, it offers wire-like reliability and the world’s lowest power WSN solution.

  • Self-forming and self-healing mesh network
  • Interference robust by time synchronization and transmission frequency hopping design
  • Network-wide 99.999% network reliability
  • Compliant to 6LoWPAN and IEEE802.15.4e standard
  • Industry-leading low power radio technology with: • > 4.5mA to Receive a packet • > 5.4mA to Transmit at 0dBm • > 9.7mA to Transmit at 8dBm
  • Supports various power sources: USB DC power, battery power and solar power
CertificationRFCE, FCC, TELEC
EMCCE, FCC Class B
Safety CertificationsLVD
EnvironmentOperating Temperature-40 ~ 85° C
Operating Humidity5% ~ 95% Relative Humidity, non-condensing
I/O InterfaceAnalog Input3
DIODI 4/DO 3 (up to 16 DIO by OCSDK development request)
UART1, for CLI interface only
MechanicalDimensions75 x 60 mm
Weight35g
PowerMicro USB DC PowerDC 5V
3-Pin DC Input PowerDC 5-12V
ProcessorMCULinear/ Dust Network ARM Cortex-M3 Processor
SRAM72kB
Flash512kB
RadioFrequency Band2.4000 ~ 2.4835 GHz
Number of Channels15
Channel Separation5MHz
ModulationIEEE 802.15.4 Direct Sequence Spread Spectrum (DSSS)
Raw Data Rate250 kbps
Antenna Pin ESD Protection±6000 V
Radio Power ConsumptionReceive a Packet4.5mA
Transmit at 0dBm5.4mA
Transmit at 8dBm9.7mA
