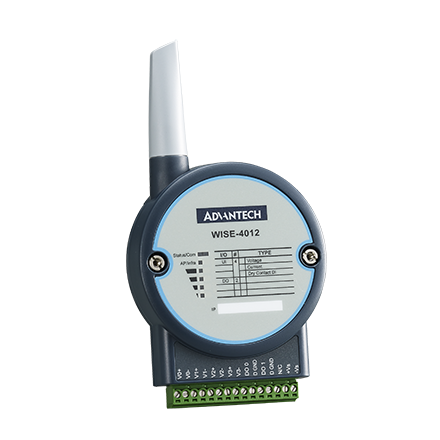

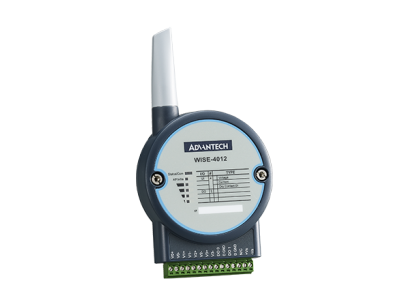

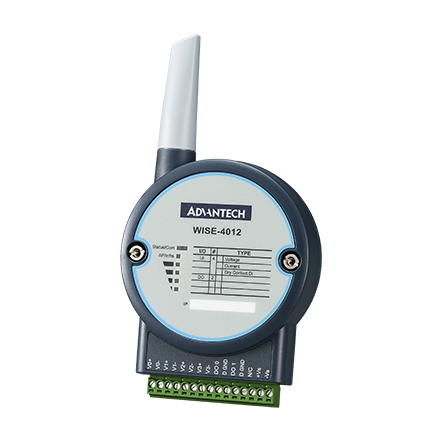

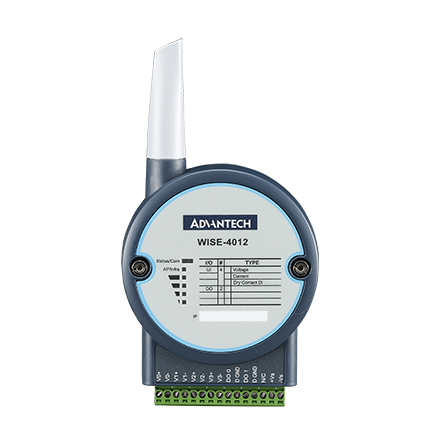

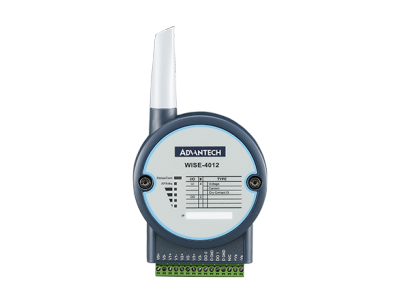

CIRCUIT BOARD, 4-ch UI and 2-ch DO IoT Wireless I/O Module (WISE-4012-AE)

by Advantech

Part #: WISE-4012-AE


View Detailed Description

$150.00

Call for Availability

Advantech's new generation of remote I/O devices bring an IT oriented spirit to the market. With the advanced concepts of data A-P-P, data Acquisition, data Processing to data Publishing, fulfilling mobile monitoring and controlling needs under an IoT framework. Broad adoptability has made WISE a reliable source of big data which benefits users in identifying their next steps and which action to take. With intelligent processing and publishing features, the time it takes to generate insightful reports can be shortened. Thus users can quickly notice and identify possible issues and system downtime can be minimized or even avoided. The WISE-4012, an IoT wireless I/O module with 4-ch universal input and 2-ch digital output, has an integrated Wi-Fi interface wuth AP mode and web configuration which can be accessed by mobile device directly. Data can be logged in the I/O module and then automatically pushed to the file-based cloud.

  • 2.4 GHz IEEE 802.11b/g/n WLAN
  • Supports both wireless client and server modes that can be accessed directly without AP or router
  • Supports mobile device web configuration with HTML5 without the platform limitation
  • Supports file-based cloud storage (preliminary) and local logging with RTC time stamp
  • Supports RESTful web API in JSON format for IoT integration
  • Supported Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP
  • Supports 10~30VDC power with reverse protection
  • Supports 3000 Vrms isolation protection with dual watchdog timer for system and communication
Analog InputAccuracyVoltage: ±0.1% of FSR; Current: ±0.2% of FSR
Burn-out DetectionYes (4~20 mA only)
Channels4-ch
Input ImpedanceVoltage: >10MΩ; Current: 120Ω
Input Range±150mV, ±500mV, ±1V, ±5V, ±10V, 0~150mV, 0~500mV, 0~1V, 0~5V, 0~10V, 0~20mA, 4~20mA, ±20mA
Isolation3,000 Vrms
lnput TypeV, A, Dry contact DI
Over Voltage Protection±35 VDC
Resolution16-bit
Sampling Rate10 Hz (Total)
Digital InputChannelsShared with AI
Counter Input2Hz (32 bit + 1 bit overflow)
Frequency Input0.1 ~ 2Hz
Inverted DI StatusSupport
Isolation3,000 Vrms
Keep/Discard Counter Value when Power OffSupport
Logic levelDry contact: Logic 0: Open, Logic 1: Close to GND
Digital OutputChannels2-ch (Sink Type)
Isolation3,000 Vrms
Output Rating (Resistive Load)Open collector to 30 V, 400 mA max.
Pulse Output5 kHz
EnvironmentOperating Humidity20 ~ 95% RH (non-condensing)
Operating Temperature-25 ~ 70°C (-13~158°F)
Storage Humidity0 ~ 95% RH (non-condensing)
Storage Temperature-40 ~ 85°C ( -40 ~ 185°F)
GeneralCertificationsCE, FCC, R&TTE, NCC, SRRC, RoHS
ConnectorsPlug-in screw terminal block (I/O and power)
Data LoggerUp to 10000 samples with RTC time stamp
Dimensions (W x H x D)80 x 148 x 25 mm
EnclosurePC
LED IndicatorsStatus, Communication, Network Mode, Quality
MountingDIN 35 rail, wall, and stack
ProtocolModbus/TCP, TCP/IP, UDP, HTTP, DHCP
Real-time ClockYes, with battery backup
Watchdog TimerSystem (1.6 second) & Communication (programmable)
Web ServerRESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3
PowerInput Range10 ~ 30 VDC
Power Consumption2.5 W @ 24 VDC
ProtectionPower Reversal Protection
Wireless InterfaceAntenna ConnectorReverse SMA
Frequency Band2.4GHz
IEEE StandardIEEE 802.11b/g/n
Network ModeInfrastructure, Limited AP
Outdoor Range110m (L.O.S.)
SecurityWPA2 Personal & Enterprise
