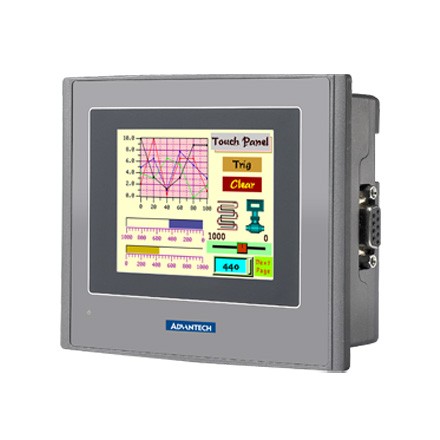

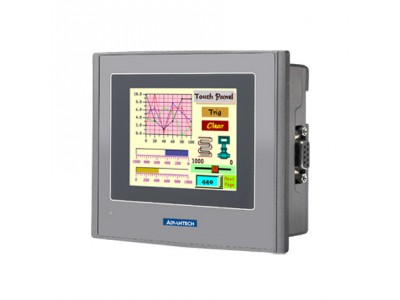

3.5" WQVGA, 32MB, 128MB(NAND), Ethernet,Micro-SD (WOP-2035V-N1AE)

by Advantech

Part #: WOP-2035V-N1AE


View Detailed Description

$290.00

Call for Availability

To satisfy the stringent standards required in the automation market, especially packaging, label slitting, and motion-based robot dispensing, Advantech offers the WebOP-2000 series which are designed with ARM9-based RISC CPU with 70~200MHz and 4~16MB flash memory size for application software. The WebOP-2000 series also support a variety of LCD size from 3.5" to 12.1" for different applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. WebOP Designer 2.0 is a software development kit which helps create application solutions for labor-saving, improved efficiency of manufacturing and easy control of every machine in the factory. The WebOP-2000 series is bundled with WebOP Designer 2.0 offering an outstanding price performance ratio for various markets such as conventional operator panels, HMI Low mini SCADA systems, and HMI communication gateways.

  • Various LCD sizes (3.5", 5.7", 7", 8", 10.4", 12.1")
  • Supports ARM9-based CPUs with 70~200MHz and 4~16MB flash memory
  • Supports RTC, battery backup RAM, and Ethernet-based operator panels
  • Supports runtime data downloads through Serial, Ethernet, USB
  • Supports adjustable brightness controls via touch panel
  • Reliable firmware for 24/7 operation
  • Supports Windows XP/ Vista-based WebOP Designer 2.0 development tool
  • Easy to switch one application to different LCD sizes in seconds
  • Supports vertical and horizontal application screen rotation
DisplaySize3.5"
Max. Resolution320 x 240
EnvironmentTemperature (Operating)0 ~ 50°C (32 ~ 122° F)
Temperature (Storage)-20 ~ 60°C (-4 ~ 140° F)
Humidity (Operating)10 ~ 95% RH @ 40° C, non-condensing
Ingress ProtectionFront panel: IP65
Vibration Protection1 Grms (5 ~ 500 Hz)
GeneralPower Consumption10 W
Power Input 24VDC ±10%
MountingPanel Mount
CertificationsCE, BSMI, CCC, UL, FCC Class A
Dimensions130 x 106.2 x 45 mm (5.11" x 4.18" x 1.77")
Cooling SystemFanless design
Enclosure HousingPC/ABS
OS SupportHMI RTOS, WebOP Designer
Weight (Net)0.27 kg (0.59 lbs)
LCD DisplayViewing Angle (H/V°)120/110
Luminance (cd/m2)350
Backlight LifeLED, 20,000
Max. Colors256 colors
Display TypeQVGA TFT LCD
System HardwareCPURISC 32 bits, 70MHz
Memory1 MB SDRAM
Storage4MB NOR Flash

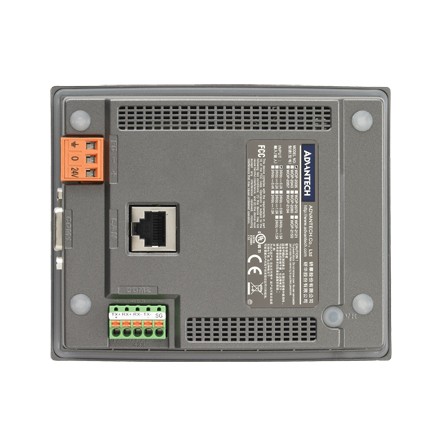

LAN10/100Base-T x 1
I/OCOM1: RS232/422/485 (DB9 Femail) COM2: RS422/485 (Terminal 5pin)
Battery Backup Memory128KB
TouchscreenLifespan1 million times with an 8mm diameter finger of silicone rubber
ResolutionLinearity
Touch Type4-wire, analog resistive
