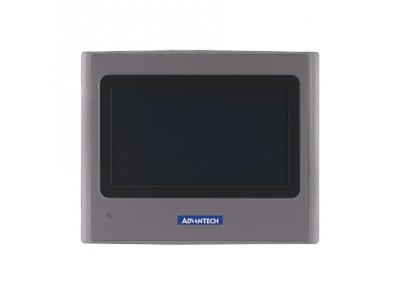

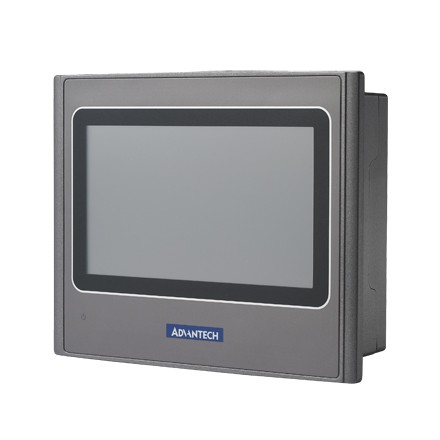

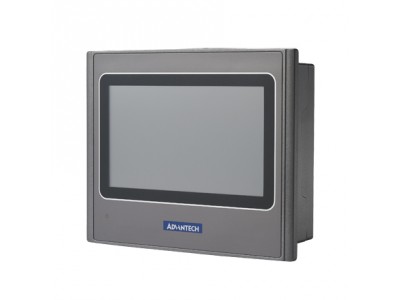

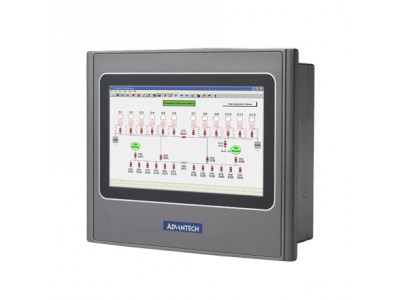

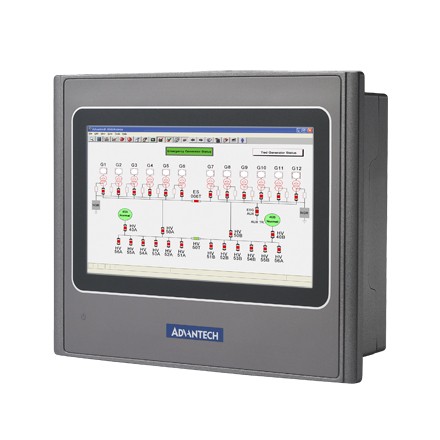

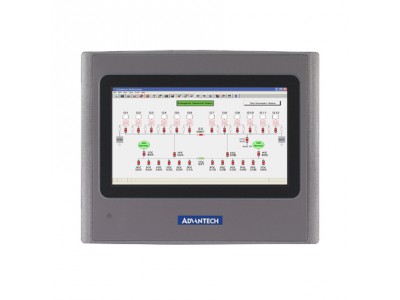

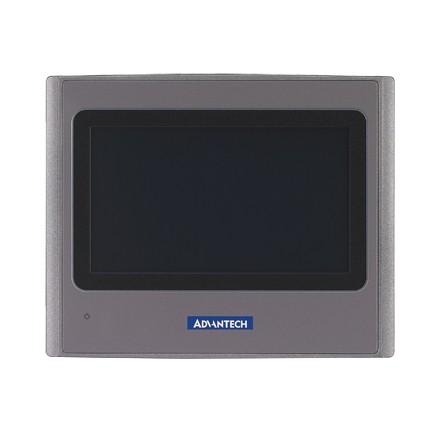

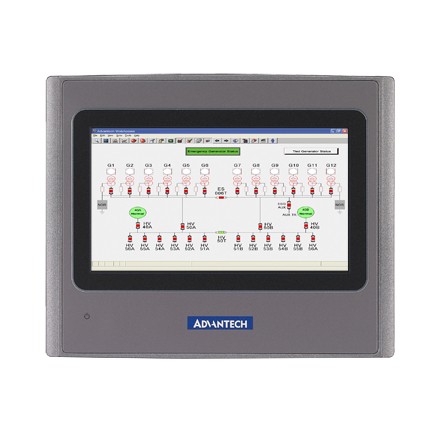

4.3" WQVGA Operator Panel with WebOP Designer Software, 32MB (WOP-2040T-S1AE)

by Advantech

Part #: WOP-2040T-S1AE


View Detailed Description

$240.00

Call for Availability

To satisfy the stringent standards required in the automation market, especially packaging, label slitting, and motion-based robot dispensing, Advantech offers the WebOP-2000T series with 200MHz ARM9-based RISC CPU's and 128MB flash memory for application software. The WebOP-2000T series also support a variety of LCD sizes from 4.3" to 10.1" for different applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. The WebOP-2000T series is bundled with WebOP Designer: a software development kit which helps create application solutions for labor-saving, improved efficiency of manufacturing and easy control of every machine in the factory. WebOP Designer offers an outstanding price performance ratio for various markets such as conventional operator panels, HMI Low mini SCADA systems, and HMI communication gateways.

  • Supports ARM9-based CPUs with 200MHz and 128MB flash memor
  • Supports RTC, battery backup RAM, and Ethernet-based operator panels
  • Supports runtime data downloads through Serial, Ethernet, USB
  • Supports adjustable brightness controls via touch panel
  • Reliable firmware for 24/7 operation
  • Supports Windows XP/ Vista-based WebOP Designer development tool
  • Supports over 300 PLC industrial communication protocols
  • Communicates with up to four types of devices
  • Front panel is NEMA4/IP66 compliant
DisplaySize4.3"
Max. Resolution480 x 272
EnvironmentTemperature (Operating)0 ~ 50°C (32 ~ 122° F)
Temperature (Storage)-20 ~ 60°C (-4 ~ 140° F)
Humidity (Operating)10 ~ 95% RH @ 40° C, non-condensing
Ingress ProtectionFront panel: IP66
Vibration Protection1 Grms (5 ~ 500 Hz)
GeneralPower Consumption5 W
Power Input 24VDC ±10%
MountingPanel Mount
CertificationsCE, BSMI, CCC, UL, FCC Class A
Dimensions130 x 106.2 x 36.4mm (5.11" x 4.18" x 1.43")
Cooling SystemFanless design
Enclosure HousingPC/ABS
OS SupportHMI RTOS, WebOP Designer
Weight (Net)0.3 kg (0.66 lbs)
LCD DisplayViewing Angle (H/V°)100/95
Luminance (cd/m2)400
Backlight LifeLED, 20,000
Max. Colors65,536 colors
Display TypeWQVGA(16:9) TFT LCD
System HardwareCPURISC 32 bits, 200MHz
Memory32 MB SDRAM
Storage8MB NOR Flash

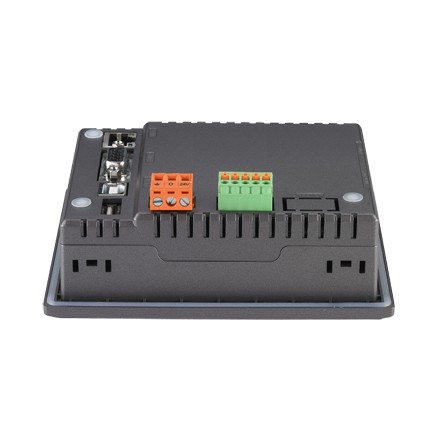

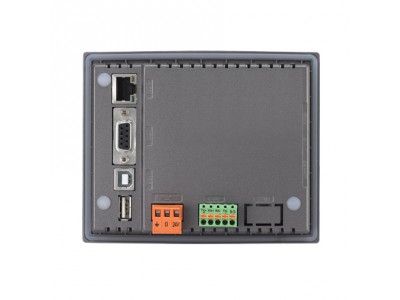

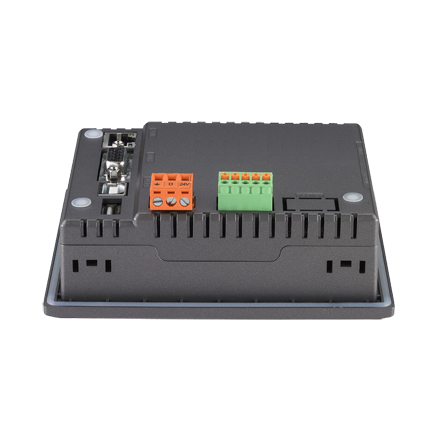

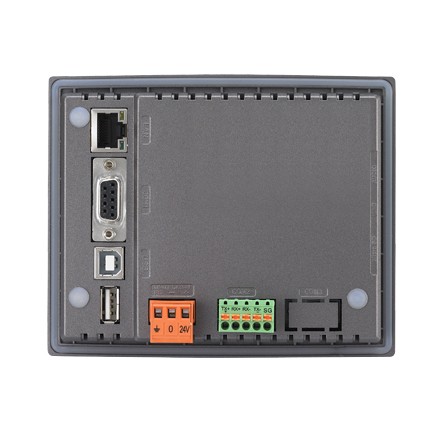

I/OCOM1: RS232/422/485 (DB9 Femail) COM2: RS422/485 (Terminal 5pin) COM3: RS232
Battery Backup Memory128KB
TouchscreenLifespan1 million times with an 8mm diameter finger of silicone rubber
ResolutionLinearity
Touch Type4-wire, analog resistive
