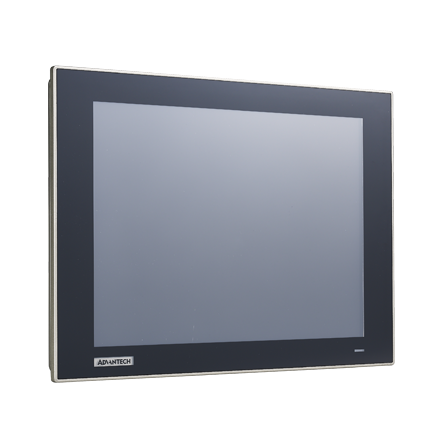

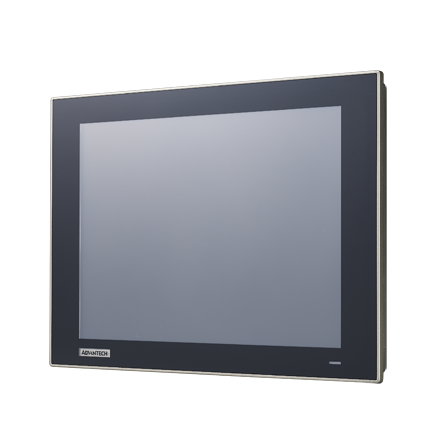

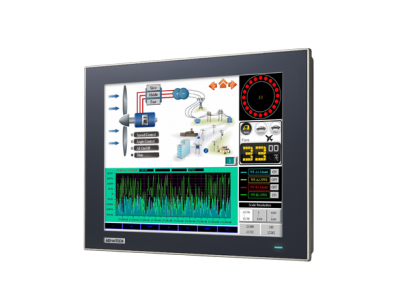

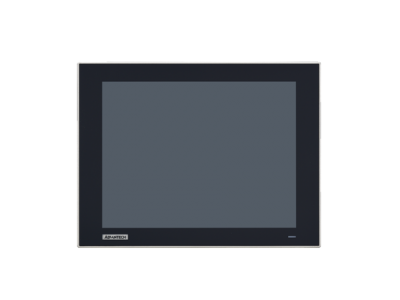

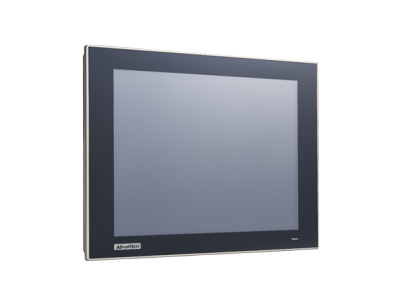

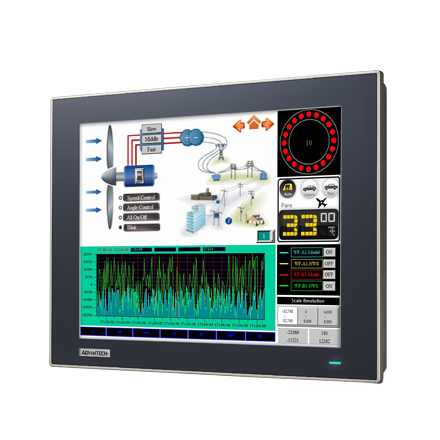

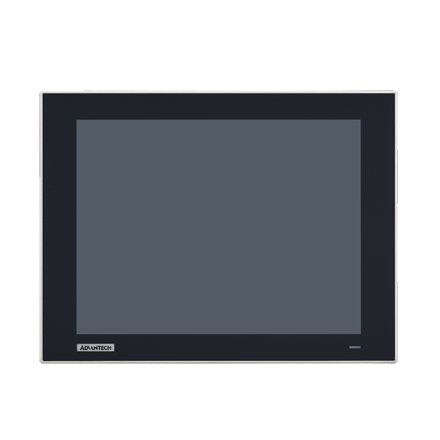

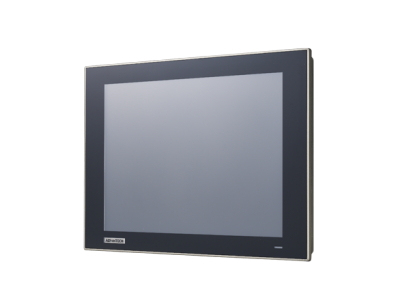

12" XGA Cortex - A8 Operator Panel with Wide Temperature Range (WOP-3120T-C4AE)
by Advantech
•Part #: WOP-3120T-C4AE
View Detailed Description
$1,095.00
With brand-new ID design, the WebOP-3120T provides stringent standards required in the automation market. Advantech offers the WebOP-3120T with Cortex™-A8 processor which consumes minimum power without sacrificing performance. The WebOP-3000T supports a variety of LCD sizes from 4.3" to 12" for different applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. It’s also provided with a wide operating temperature range to fulfill the requirements of harsh environments. The built-in Microsoft® WinCE 6.0 OS platform which bundles WebOP Designer lets the WebOP-3120T become a control HMI solution for flexible system integration.
- RISC 32 bits TI ARM® Cortex™-A8 processor
- Full line LED BL TFT LCD with 50K life time
- Embedded Microsoft® WinCE 6.0 OS
- Bundle Panel Express HMI Runtime software (300 tags)
- Backup Memory FRAM in 128KB (64 words) without battery concern
- -20°C ~ 60°C wide operating temperature range
- Support CANopen library registered by CiA 301 V4.02
- RS-422/RS-485/CAN terminal I/O ports support Termination Resistor 120Ω
- Front panel IP66 compliant

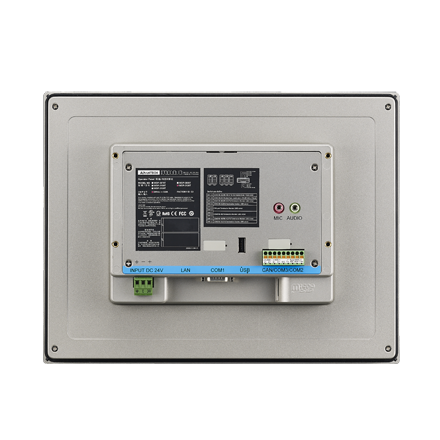

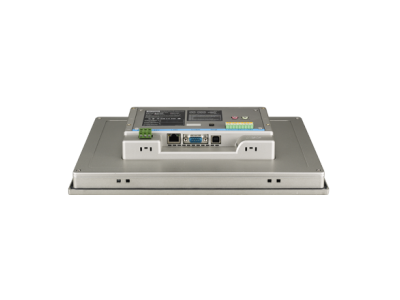

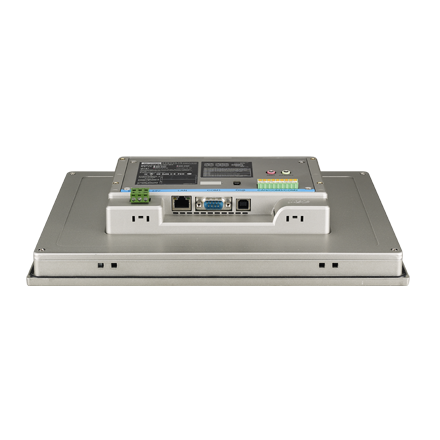

| Communications | COM1 | RS-232/RS-422/RS-485 (DB9) |
| I/Os | USB 2.0 Client x 1, USB 2.0 Host x 1 (Top), Micro-SD Slot, Audio 1 Line-out / 1 Mic-in | |
| COM2 | RS-422/RS-485 (Terminal 4pin+Ground) | |
| COM3 | RS-485 (Terminal Plug 2-Pin) | |
| CAN | Terminal Plug 2-Pin | |
| Ethernet | 10/100-BaseT | |
| Display | Size | 12" |
| Environment | Temperature (Operating) | -20 ~ 60°C (-4 ~ 140°F) |
| Temperature (Storage) | -30 ~ 70° C (-22 ~ 158° F) | |
| Humidity (Operating) | 10 ~ 90% RH @ 40°C, non-condensing | |
| Ingress Protection | Front panel: IP66 | |
| Vibration Protection | Operating, radom vibration 1 Grms (5 ~ 500 Hz) | |
| General | Certifications | CE, BSMI, CCC, UL 61010, FCC Class A |
| Dimensions | 311 x 237 x 46.8 mm (12.24" x 9.33" x 1.84") | |
| Cut-out Dimensions | 302.5 x 228.5 mm (12.1" x 9.14") | |
| OS Support | Microsoft® Windows WES7 32bit/64bit /WE8S 64bit /Windows 7 32bit/64bit / Windows 8 64 bit / Linux Kernel | |
| Power Input | 24VDC ±10% | |
| Power Consumption | 12 W | |
| Enclosure Housing | PC + ABS | |
| Mounting | Panel | |
| Weight (Net) | 2.5 kg (5.51 lbs) | |
| LCD Display | Display Type | XGA TFT LED LCD |
| Max. Resolution | 1024 x 768 | |
| Max. Colors | 64K | |
| Luminance (cd/m2) | 500 | |
| Backlight Life | LED, 50,000 | |
| Viewing Angle (H/V°) | 160/140 | |
| Dimming | Adjustable by touch panel | |
| Contrast Ratio | 500 : 1 | |
| System Hardware | CPU | RISC 32 bits, 600 MHz (ARM® Cortex™-A8) |
| Battery Backup Memory | FRAM 1M bit (=128K Byte, 64word | |
| Flash Memory | DDR2 256MB on board | |
| Storage | 512MB on board SLC type | |
| Power-On LED | Yes | |
| Touchscreen | Lifespan | 36 million touches at 8mm-diameter finger poin through silicone rubber bearing at least 250g 2 times per second. |
| Light Transmission | Transmission Above 80% | |
| Resolution | Linearity | |
| Touch Type | 5-wire, analog resistive |
