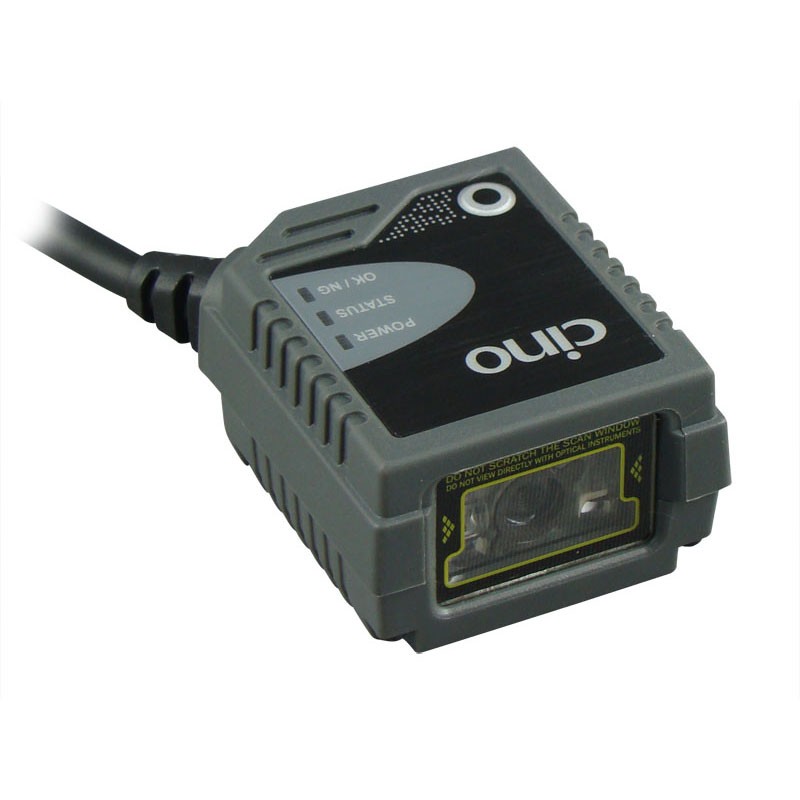

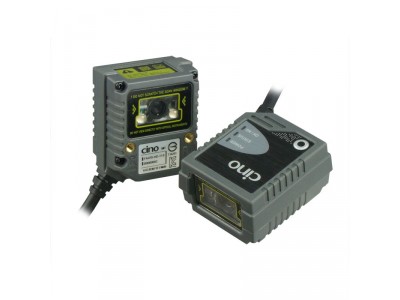

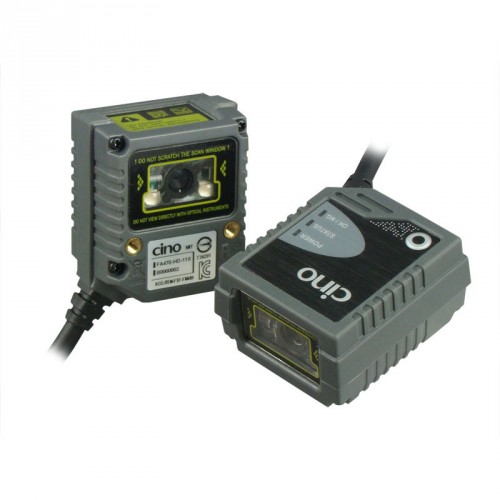

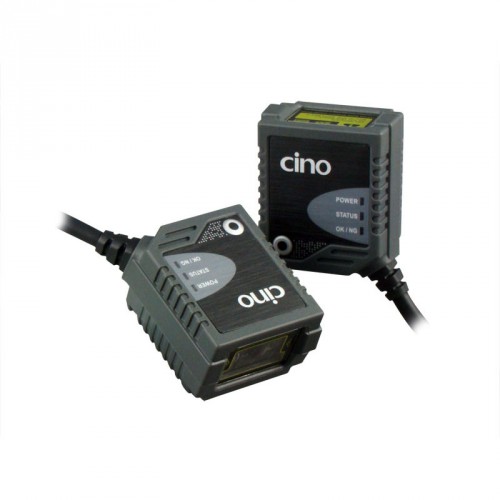

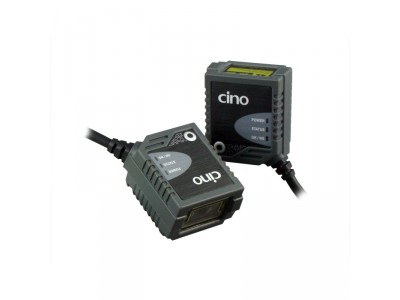

CINO FA470-HD Series (LTC-GPFSA470111FK11)

CINO FA470 USB Interface, Front-View Fixed Mount High Density 2D Barcode Imager. (USB)

by Cino

Part #: LTC-GPFSA470111FK11


View Detailed Description
  • Ships Within 2 - 4 Weeks
  • Free Shipping for most products over $125
  • View Datasheet

MSRP: $255.00

$242.25

Call for Availability

Equipped with a small 2D barcode imaging engine the FA470 is designed for OEM applications. It is IP54 ultra-compact, durable, over-molded deisgn, high performance low cost 2d imager.

The CINO FA470 series fixed mount scanner comes with FuzzyScan Imaging Technology 3.0 for outstanding scanning performance, functionality and reliability. The FA470 Area Imaging fixed mount scanner delivers a superior cost-performance solution to help enterprises increasing their efficiency and productivity. Size of a product plays a very important role in OEM system integration and space-constrained environments, the FA470 is a small OEM 2D imaging scanner.

Features

  • Small and easy to mount
  • Multiple triggering methods
  • IP54 durable over-molded construction
  • Flexible user-defined serial trigger command supported
  • Support RS232, USB HID, USB COM host interfaces
  • Support serial command trigger and external trigger
  • Universal model supports OK and NG output signals for control
  • Read most of popular 1D, stacked and 2D bar codes
  • Superior readability on most of real world bar codes
  • High-density and standard range model are available
  • Choice of Front-view or side-view version

What's in the Box

  • Scanner
  • Integrated USB cable
Performance Characteristics
Scan Pattern Area Image
Print Contrast 20% minimum reflective difference
Light Source Aiming Pattern : 630nm LED
Illumination : 630nm LED
Min. Resolution SR Model
4 mil Code 39
7 mil DM HD Model
3 mil Code 39
5 mil DM
Roll, Pitch, Skew Roll: 360°; Pitch: ± 75°; Skew: ± 65°
Motion Tolerance Up to 25 inch/63.5 cm per second
Reading Range
SR Model
5 mil (0.13mm) C39
13 mil (0.33mm) UPC/EAN
10 mil (0.25mm)
5.7-16.7(2.24"-6.57")
4.7-39.7(1.85"-15.63")
4.7-17.2(1.85"-6.77")
HD Model
3 mil (0.07mm) C39
5 mil (0.13mm) C39
13 mil (0.33mm) UPC/EAN
5 mil (0.13mm) DM
10 mil (0.25mm) QR
4.7-9.7(1.85"-3.82")
4.7-12.7(1.85"-5.0")
4.2-18.2(1.65"-7.17")
5.2-10.7(2.05"-4.21")
5.2-9.7(2.05"-3.82")
Operating Modes Trigger, Alternative, Level, Force, Presentat
Host Interfaces RS232 serial
USB HID (USB Keyboard)
USB COM port emulation
User Interfaces 3 LEDs for power, Status, OK/NG indications
Test button
Programmable beeper
Configuration Setup Bar code command, Serial command
Windows utility - FuzzyScan PowerTool
Data Editing Condensed DataWizard via bar code command
Full-feature DataWizard via FuzzyScan PowerTool
DataWizard Premium via FuzzyScan PowerTool
Image Capture Graphic Format : BMP
Supported Symbologies
1D Linear Codes Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey , GS1 DataBar, Linear & Linear Stacked
2D Codes PDF417, Micro PDF417, Codablock F, Code 16K, Code 49, Composite Codes, DataMatrix, MaxiCode, QR Code, Aztec, MicroQR
Postal Codes Australian Post, US Planet, US Postnet, Japan Post
Dutch KIX code, Intelligent Mail, British Post
Physical Characteristics
Dimension 47.6 mm (L) x 40.6 mm (W) x 25.6 mm (H)
Weight 101g
Scan Window Choice of front-view or side-view model
Connector 9-pin D-sub female (RS232 version)
USB 4-pin Type A (USB version)
15-pin D-sub HD female (Universal version)
Input Voltage 5VDC ± 10%
Current Operating : Typical 285 mA @5VDC
Standby : Typical 160 mA @5VDC
User Environment
Drop Specifications Withstand multiple 1.5m/5ft. drops to concrete
Environmental Sealing IP54
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% related humidity, non-condensing
Ambient Light Immunity 0 ~ 100,000 lux
ESD Protection Functional after 15kV discharge
Accessories
Cables USB Power Steal Cable
Others 5VDC Power Suply Unit
