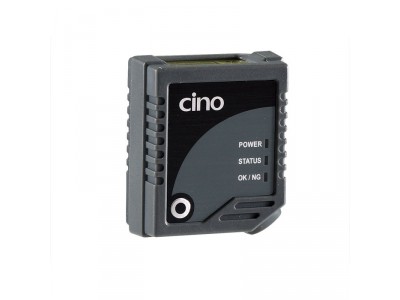

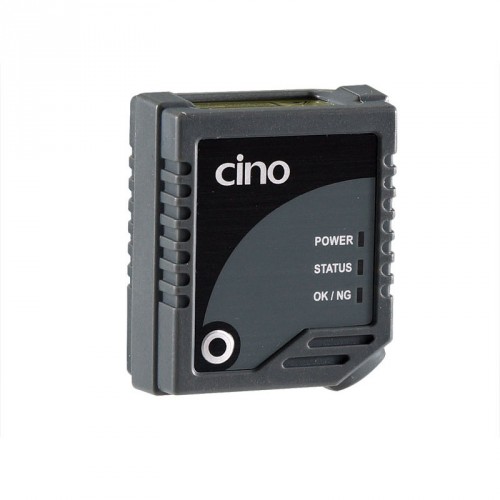

CINO FM480 Series (LTC-GPFSM48011S0K01)

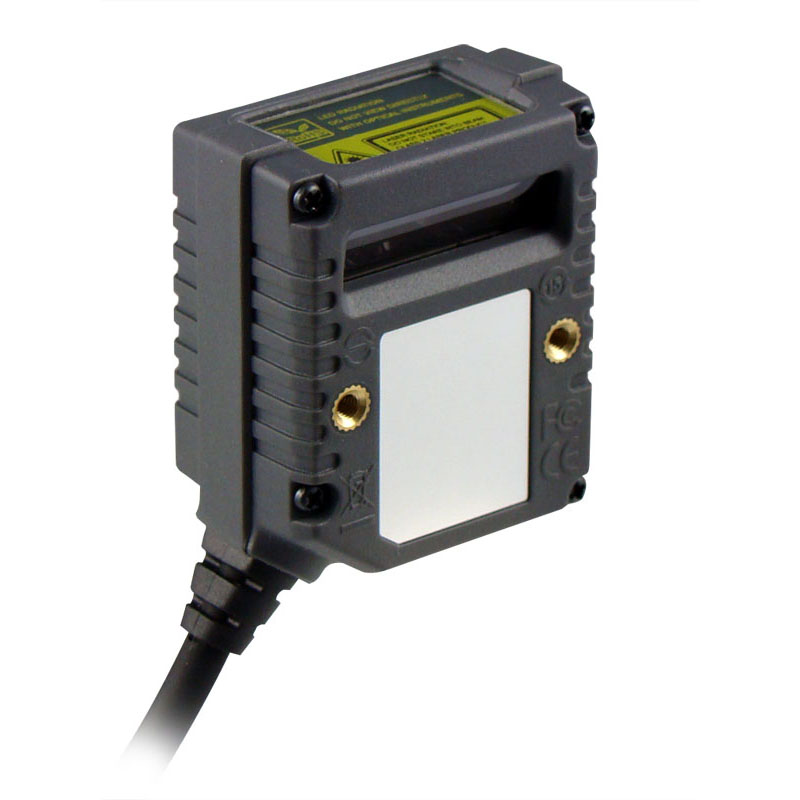

CINO Fixed Mount Linear Imager with integrated USB cable, Side view

by Cino

Part #: LTC-GPFSM48011S0K01


View Detailed Description
  • Ships Within 2 - 4 Weeks
  • Free Shipping for most products over $125
  • View Datasheet

MSRP: $158.00

$150.10

Qty:

The FM480 series Fixed Mount Scanner from Cino is a high performance low cost OEM linear barcode scanner with outstanding scanning performance with Fuzzyscan 3.0 technology. Thanks to it's ultra-compact, robust overmold and IP54 rating construction, the FM480 is ideal for OEM embedded scanning solutions such as kiosks and lottery terminals, but also perfect for industrial applications such as conveyer line scanning and test tube verification. The choice of front-view or side-view model and the design of industrial level M3 mounting holes make F480 easy to be mounted anywhere and integrated with any device.

Features

  • Durable construction and IP54 design
  • Ultra-compact and easy mounting design
  • Front-view or side-view models
  • Rich indication and user interface for intuitive operations
  • Up to 34” reading distance on 100% UPC/EAN symbols
  • High speed scanning rates up to 500 scans per second
  • Reads low contrast, soiled, poorly-printed or damaged barcodes

What's in the Box

  • Scanner
  • Integrated USB cable
Performance Characteristics
Optical System High performance Linear Imaging Engine
Print Contrast 20% minimum reflective difference
Minimum Resolution Typical 3 mil (code 39, PCS 0.9)
Working Distance Up to 24 inches on 100% UPC/EAN symbols
Up to 34 inches on 20 mil Code 39
Light Source 630nm visible red LED
Scan Rate Dynamic scanning rate up to 500 scans per second
Reading Direction Bi-directional (forward and backward)
Pitch/Skew ± 65°/ ± 65°/ ± 55°
Operating Modes Trigger, Alternative, Level, Force, Presentation
Host Interfaces RS232 serial
USB HID (USB Keyboard)
USB COM port emulation
Configuration Setup Bar code command, Serial command
Windows utility - FuzzyScan PowerTool
Data Editing Condensed DataWizard via bar code command
Full-feature DataWizard via FuzzyScan PowerTool
User Interfaces 3 LEDs for power, Status, OK/NG indications
Test button
Programmable beeper
Supported Symbologies
1D Linear (FM480) Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic
Code 128, GS1-128, Codabar, Code 11, Code 93
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5
German Postal Code, China Postal Code, IATA
UPC/EAN/JAN, UPC/EAN/JAN with Addendum
Telepen, MSI/Plessey & UK/Plessey
GS1 DataBar (formly RSS) Linear, Linear-stacked
Linear-stacked (FM488) PDF417, Micro PDF417, Codablock, Composite
User Environment
Drop Specifications Withstand 1.5m/5ft. drop to concrete
Environmental Sealing IP54
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% related humidity, non-condensing
Ambient Light Immunity 0 ~ 100,000 lux
ESD Protection Functional after 15kV discharge
Physical & Electrical Characteristics
Dimension 47.6 mm (L) x 40.6 mm (W) x 23.1 mm (D)
1.87 in. (L) x 1.60 in. (W) x 0.91 in. (D)
Weight 120g (RS232 and Universal version)
95g (USB version)
Scan Window Choice of front-view or side-view model
Connector 9-pin D-sub female (RS232 version)
USB 4-pin Type A (USB version)
15-pin D-sub HD female (Universal version)
Mounting 2 screw holes (M3 x 4mm in depth)
Input Voltage 5VDC ± 10%
Current Operating : Typical 165 mA @5VDC
Standby : Typical 70 mA @5VDC
Safety & Regulatory
EMC CE,FCC,BSMI,VCCI,KC
Safety LED Eye Safety IEC62471, Exempt Group
Environmental Compliant with RoHS directive
Accessories
Cables USB Power Steal Cable
Others 5VDC Power Suply Unit
