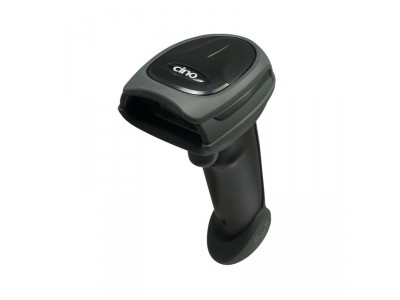

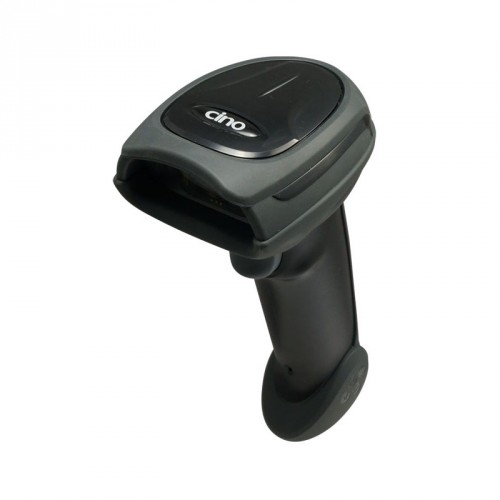

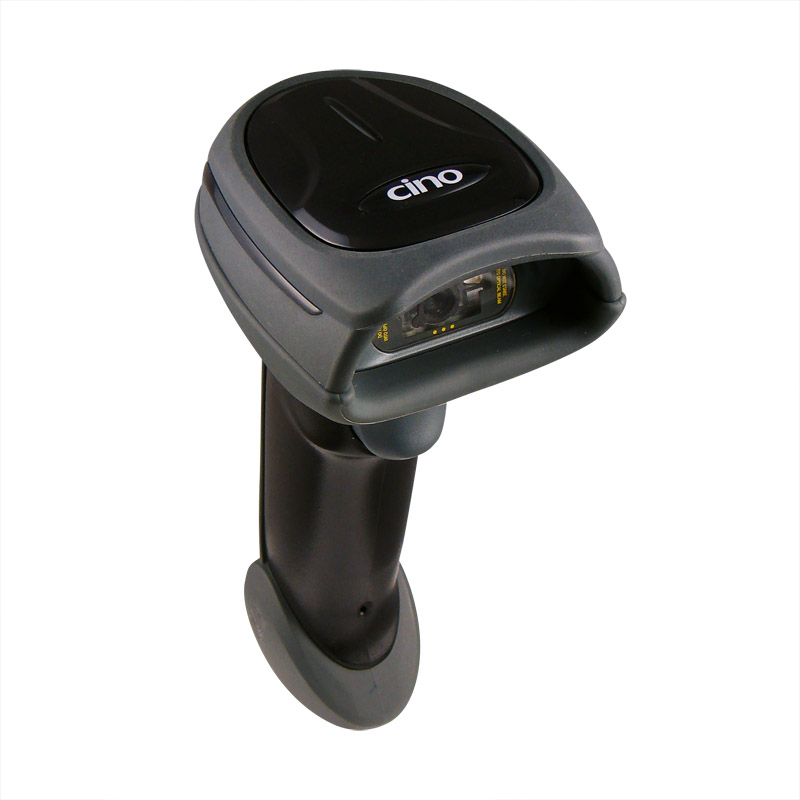

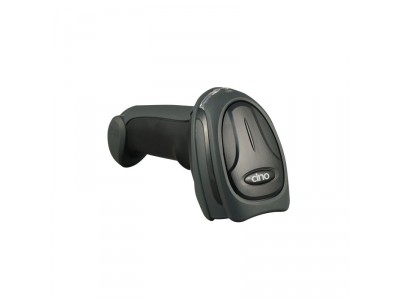

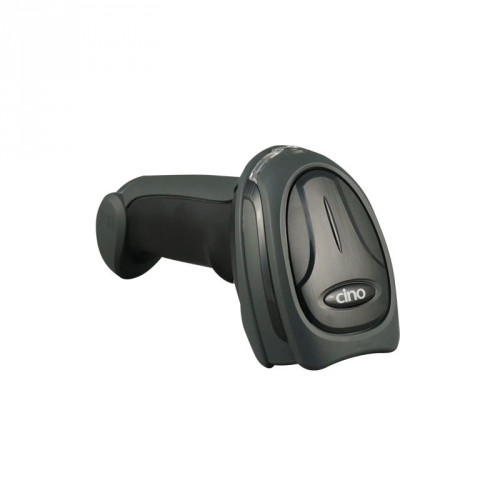

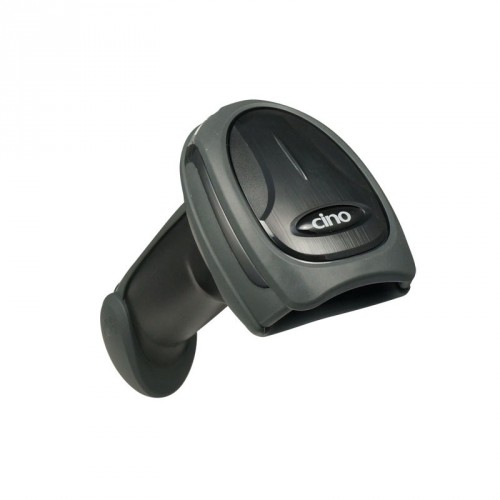

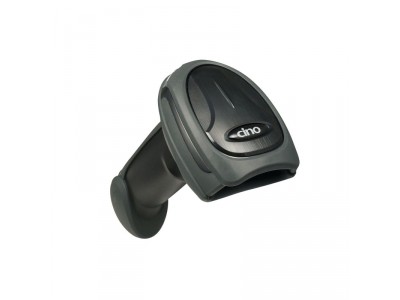

Cino FuzzyScan A770 (LTC-GPHS77001100K13)

FuzzyScan A770 High Density Area-Imaging Scanner (HD Focus, 1D & 2D, Serial Kit, Black)

by Cino

Part #: LTC-GPHS77001100K13

View Detailed Description
  • Ships Within 2 - 4 Weeks
  • Free Shipping for most products over $125
  • View Datasheet

MSRP: $231.00


Call for Availability

The A770 is an outstanding 2D area imaging scanner for linear and 2D scanning applications. With the innovative FuzzyScan 3.0 Imaging Technology, the FuzzyScan A770 can read most widely-used linear and 2D bar codes on paper and LCD display. Durable over-mold design, outstanding reading performance and versatile features sets offer business exceptional value with increased employee productivity and streamlined business processes. The A770 provides an ideal solution for retail, logistics, healthcare and industrial applications.

Outstanding readability The A770 supports most popularly-used linear, 2D bar codes and postal codes. It also supports digital image capture function, enabling you to scan barcodes and capture images with a single device. Especially the mobile commerce application is emerging and becoming increasingly popular. The A770 can read paper-based and electronic bar codes. The A770 not only can fulfill versatile data capture requirements, but also lower the total cost of ownership.

Superior reading performance High density and standard range models are designed to meet the needs of various barcode scanning applications. The high density model is ideal for applications wherein high density bar codes are commonly used. The standard range model is suitable for general purpose applications. It can also perform exceptional reading performance on barcode printed on reflective material, and on curved surface. A770 presents superior adaption of most real world barcodes, such as poorly printed, distorted and damaged barcodes.

Omni-directional scanning capability The A770 presents superior omni-directional scanning of both 1D and 2D bar codes. Users can read barcode in any orientation without having to align the bar code or pause between scans. This scanning capability improves the first-time read while resulting in faster and more accurately scanning applications.


  • Read most popular 1D, 2D bar codes and postal codes
  • Snappy reading and great first-time read of real world barcodes
  • The ability to read bar codes on paper and LCD display
  • Omni-directional scanning
  • High-density and standard range models available
  • Digital image capture capability
  • Supports multi-barcode capture with a single triggering
  • Automatically switch between presentation scanning and hand-held scanning while working with Cino SmartStand
  • Durable over-mold design with 2.0-meter drop resistance
  • Antimicrobial model is available for healthcare applications
  • Optional vibrator is ideal for noisy and quiet environments

What's in the Box

  • Scanner
  • Quick Start Guide
  • Interface cable
Performance Characteristics
Image Sensor WVGA 752x480 Pixels
Print Contrast 20% minimun reflective difference
Light Source Aiming Pattern : 630nm LED
Illumination : 630nm LED
Min. Resolution SR Model
3.3 mil Code 39
7 mil DM
HD Model
2.7 mil Code 39
5 mil DM
Roll, Pitch, Skew Roll: 360°; Pitch: ± 75°; Skew: ± 65°
Motion Tolerance Up to 25 inch/63.5 cm per second
Reading Range
SR Model
5 mil (0.13mm) C39
13 mil (0.33mm) EAN
10 mil (0.25mm) DM
3.8-19.5cm (1.5”-7.7”)
2.4-40.5cm (0.9”-15.9”)
3.0-20.0cm (1.2”-7.9”)
DM HD Model
3 mil (0.076mm) C39
5 mil (0.13mm) C39
13 mil (0.33mm) EAN
5 mil (0.13mm) DM
10 mil (0.25mm) DM
2.2-9.6cm (0.9”-3.8”)
2.8-11.5cm (1.1”-4.5”)
1.8-20.3cm (0.9”-12.9”)
2.8-7.5cm (1.1”-3.0”)
1.2-12.0cm (0.5”-4.7”)
Operating Modes Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation
Host Interfaces PC/AT, PS/2 (DOS V) keyboard wedge
PC/AT, PS/2 (DOS V) keyboard direct link
TTL RS232 serial
USB HID (USB Keyboard)
USB COM port emulation
Image Capture Graphic Format : BMP
Supported Symbologies
1D Linear Codes Code 39, Code 39 Full ASCII, Code 32, Code 128,
GS1-128, Codabar, Code 11, Code 93,
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5,
Telepen, MSI/Plessey & UK/Plessey ,
GS1 DataBar, Linear & Linear Stacked
2D Codes PDF417, Micro PDF417, Codablock F, Code 16K,
Code 49, Composite Codes, DataMatrix, MaxiCode,
QR Code, Aztec, MicroQR
Postal Codes Australian Post, US Planet, US Postnet, Japan Post
Dutch KIX code, Intelligent Mail, British Post
User Environment
Drop Specifications Withstand 50 drops at 1.8m / 6.0ft to concrete
Withstand 10 drops at 2.0m / 6.6ft to concrete
Environmental Sealing IP41
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% related humidity, non-condensing
Ambient Light Immunity 0 ~ 100,000 lux
ESD Protection Functional after 15kV discharge
Physical Characteristics
Dimension 95.0 mm (L) x 70.5 mm (W) x 161.7 mm (D)
3.74 in. (L) x 2.77 in. (W) x 6.36 in. (D)
Weight 152g (cable excluded)
Color Classic Black, Light Gray
User Interfaces 3 LEDs for power, good read and status indications
Programmable beeper
Optional vibrator
Input Voltage 5VDC ± 10%
Current Operating : Typical 350 mA @5VDC
Standby : Typical 180 mA @5VDC
Safety & Regulatory
Safety LED Eye Safety IEC62471, Exempt Group
Environmental Compliant with RoHS directive
Cables PS/2 (DOS V) Keyboard Wedge Cable
RS232 Serial Cable
USB Cable
USB Power Steal Cable
Others Hand-free SmartStand
