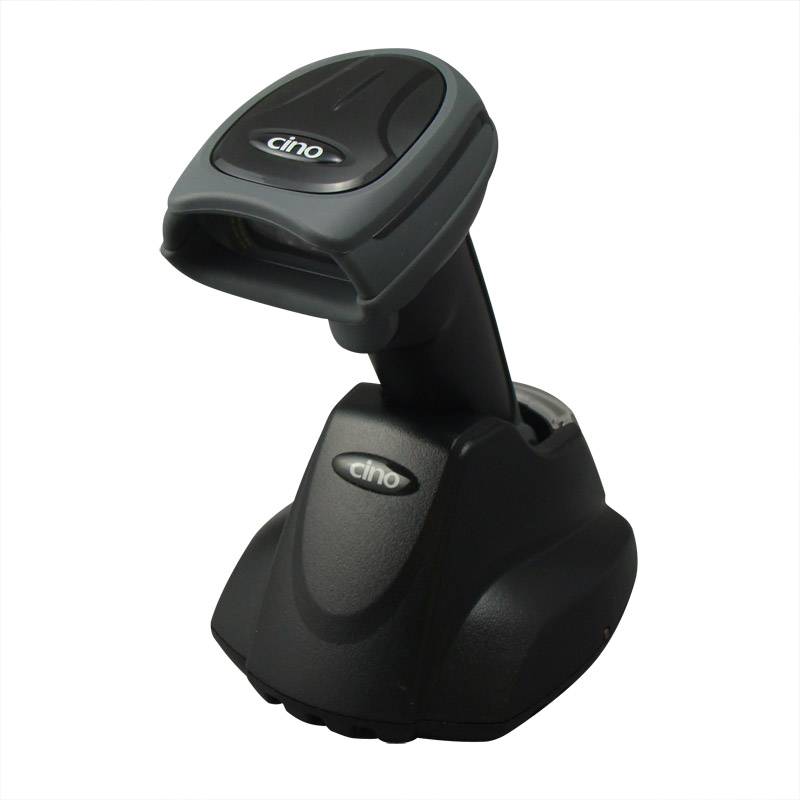

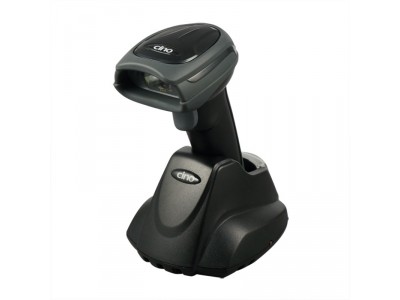

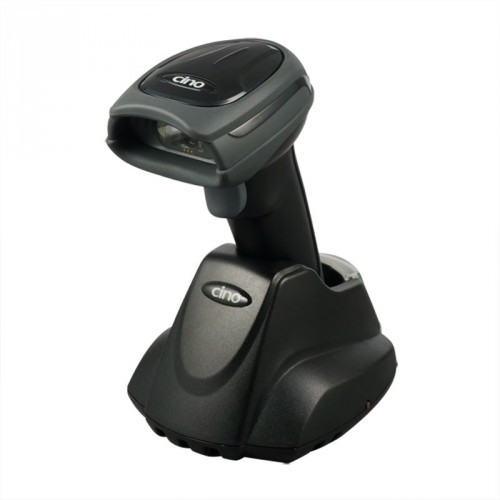

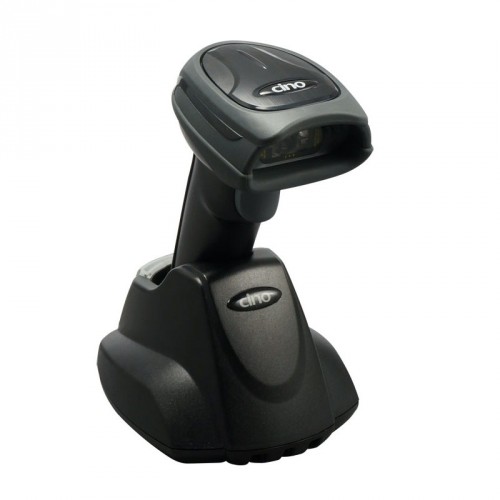

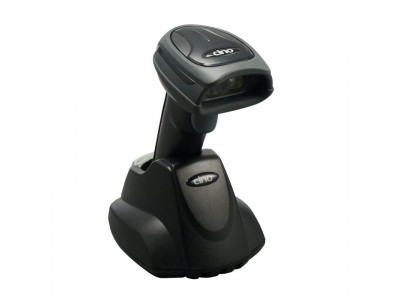

Cino FuzzyScan A770BT (LTC-GPHS77011000K13)

FuzzyScan A770BT Standard Range Bluetooth Area-Imaging Scanner Serial Kit (SR Focus, Smart Cradle, 1D & 2D, RS232 Kit , Black)

by Cino

Part #: LTC-GPHS77011000K13

View Detailed Description
  • Ships Within 2 - 4 Weeks
  • Free Shipping for most products over $125
  • View Datasheet

MSRP: $435.00


Call for Availability

The A770BT is a rugged, high performance cordless 2D area imaging Scanner. Designed with innovative FuzzyScan 3.0 imaging and advanced Bluetooth v4.0 wireless technology, the cordless Area Imaging Scanner delivers superior reading performance, impressive snappy reading and the ultimate freedom of cordless operations. With its outstanding reading performance, superior wireless connectivity, robust enclosure and versatile features, this scanner raises the bar with exceptional cost-performance.

Exceptional mobility and flexibility
Powered by Bluetooth v4.0 wireless technolog it provides several radio link modes to communicate with host devices. When the Bluetooth-enabled host device is not available, it can work with the smart cradle in PAIR mode or PICO mode. This provides an instant plug-and-play cordless migration to your existing non-Bluetooth-enabled IT assets. The PICO mode supports multiple connections of up to 7 scanners with one smart cradle, reducing the cost of system. You can use the A770BT with bluetooth-enabled host devices via SPP mode or HID mode.

Superior reading performance
The A770BT can omni-directionally read the most commonly-used linear, 2D, and postal barcodes codes . High Density and Standard Range models are designed for multiple barcode scanning applications. It can scan barcodes printed on reflective material and curved surfaces as well as poorly printed, distorted and damaged bar codes.

Versatile functionality and feature rich
Feature-rich and a best in class value; in batch mode it can store up to 100,000 EAN-13 scans of barcode data . The out-of-range scanning feature allows the  A770BT to continue reading data even if it it loses radio connection. For a hands-free application, you can enable the Auto-sense function and switch from trigger to presentation mode automatically when placed on a SmartStand or a smart cradle



  • Built with the latest Bluetooth v4.0 wireless technology
  • Communication coverage of over 100 yards when using the smart cradle
  • Plug-and-play cordless migration
  • Supports multiple connections up to 7 scanners in PICO mode
  • Supports both HID and SPP profiles connectivity with most Bluetooth-enabled hosts
  • Compatible with iOS and Android devices
  • Batch scanning providing up to 100,000 EAN-13 scans of data storage
  • Scans and reads the most commonly used 1D, 2D and postal barcodes
  • Superior omni-directional first-time reading
  • Digital image capture capability
  • Ruggedized over-mold designed to withstand multiple 6.5 foot drops to concrete
  • The cradle contact pin is designed to be durable, lasting over 1,000,000 connections/disconnections
  • In addition to beeping there is an option for the scanner to vibrate

What's in the Box

  • Scanner
  • Battery
  • Smart Cradle
  • Power Supply
  • Quick Start Guide
  • Interface cable
Performance Characteristics
Image Sensor WVGA 752x480 Pixels
Print Contrast 20% minimum reflectance difference
Min. Resolution SR Model
3.3 mil Code 39
7 mil DM
HD Model
2.7 mil Code 39
5 mil DM
Light Source Aiming Pattern : 630nm LED
Illumination : 630nm LED
Roll, Pitch, Skew Roll: 360°; Pitch: ± 75°; Skew: ± 65°
Motion Tolerance Up to 25 inch/63.5 cm per second
Reading Range
SR Model
5 mil (0.13mm) C39
13 mil (0.33mm) EAN
10 mil (0.25mm) DM
3.8-19.5cm (1.5”-7.7”)
2.4-40.5cm (0.9”-15.9”)
3.0-20.0cm (1.2”-7.9”)
DM HD Model
3 mil (0.07mm) C39
5 mil (0.13mm) C39
13 mil (0.33mm) EAN
5 mil (0.13mm) DM
10 mil (0.25mm) DM
2.2-9.6cm (0.9”-3.8”)
2.8-11.5cm (1.1”-4.5”)
1.8-20.3cm (0.9”-12.9”)
2.8-7.5cm (1.1”-3.0”)
1.2-12.0cm (0.5”-4.7”)
Operating Modes Trigger, Presentation
Configuration Setup Bar code command
Windows utility - FuzzyScan PowerTool
Data Editing Condensed DataWizard via bar code command
Full-feature DataWizard via FuzzyScan PowerTool
DataWizard Premium via FuzzyScan PowerTool
User Interfaces Blue link indicator and 2-color status indicator
Programmable beeper
Optional vibrator
Image Capture Graphic Format : BMP
Electrical Characteristics
Battery 3.7V, 2600mAH Li-ion rechargeable battery
Battery Charge Time Approx. 4-5 hours per full charge
Scans per full Charge More than 63,000 scans and transmissions
Voltage & Current (Scanner and Smart Cradle) Voltage             Current (Charging/ Non Charging)
5 ± 10% VDC   Max.750 mA / 175mA with external power
Communication Characteristics
RF Standard Bluetooth v4.0
RF Frequency Band 2.402~2.4830 GHz unlicensed ISM band
Radio Link Modes PAIR mode, PICO mode, SPP mode, HID mode
Communication Range More than 100 meters in open space when working with smart cradle, line of sight
Supported Profiles SPP, HID
Supported Symbologies
1D Linear Code 39, Code 39 Full ASCII, Code 32, Code 128,
GS1-128, Codabar, Code 11, Code 93,
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5,
Telepen, MSI/Plessey & UK/Plessey ,
GS1 DataBar, Linear & Linear Stacked
2D Codes PDF417, Micro PDF417, Codablock F, Code 16K,
Code 49, Composite Codes, DataMatrix, MaxiCode,
QR Code, Aztec, MicroQR
Postal Codes Australian Post, US Planet, US Postnet, Japan Post
Dutch KIX code, Intelligent Mail, British Post
User Environment
Drop Specifications Withstand 50 drops at 1.8m / 6.0ft to concrete
Withstand 10 drops at 2.0m / 6.6ft to concrete
Environmental Sealing IP41
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% related humidity, non-condensing
Ambient Light Immunity 0 ~ 100,000 lux
ESD Protection Functional after 15kV discharge
Physical Characteristics
Dimension 95.0 mm (L) x 70.5 mm (W) x 161.7 mm (D)
Weight 210g (Battery included)
Safety & Regulatory
Safety LED Eye Safety IEC62471, Exempt Group
Environmental Compliant with RoHS directive
Smart Cradle RF Standard: Bluetooth v4.0
Battery charging: Fast charge
User Interfaces: 1 blue link indicator, 2-color status indicator, Beeper, Paging/Reset button
Host Interface: PS/2 (DOS V) Keyboard Wedge, TTL RS232 Serial, USB HID, USB COM
Charging Cradle Battery charging: Fast charge
User Interface: 1 blue power indicator
Interface Cables PS/2 (DOS V) Keyboard Wedge Cable
RS232 Serial Cable
USB Cable
Others 5VDC Power Supply Unit
Hand-Free SmartStand
