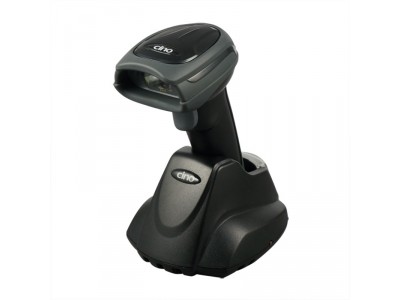

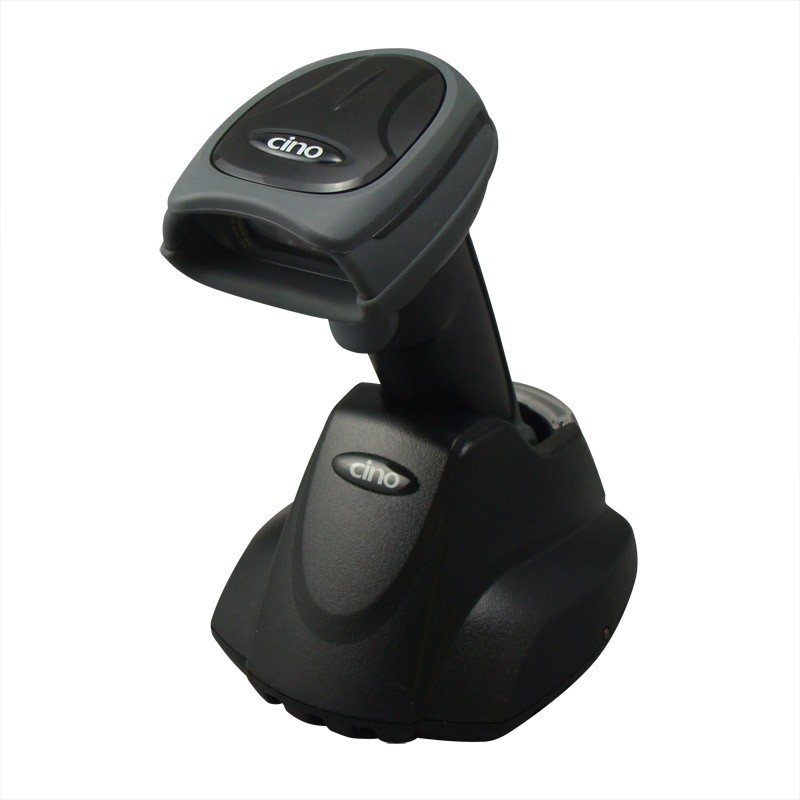

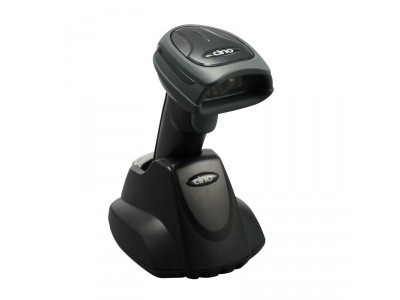

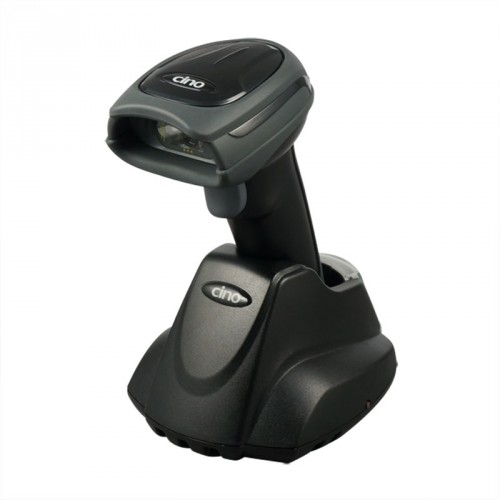

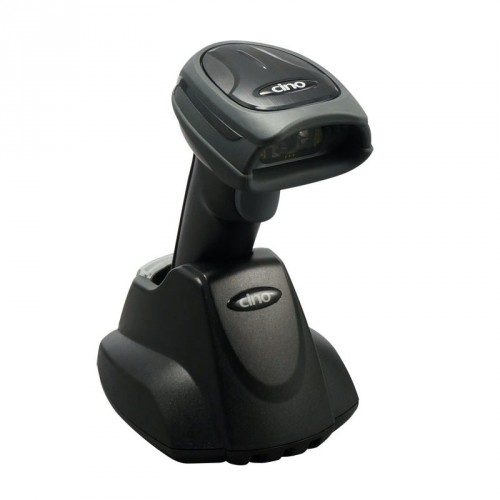

Cino FuzzyScan A770BT (LTC-GPHS77011100K13)

FuzzyScan A770BT High Density Bluetooth Area-Imaging Scanner Serial Kit (HD Focus, Smart Cradle, 1D & 2D, RS232 Kit , Black)

by Cino

Part #: LTC-GPHS77011100K13


View Detailed Description
  • Ships Within 2 - 4 Weeks
  • Free Shipping for most products over $125
  • View Datasheet

MSRP: $444.00

$421.80

Qty:

The A770BT is a rugged, high performance cordless 2D area imaging Scanner. Designed with innovative FuzzyScan 3.0 Imaging Technology and advanced Bluetooth v4.0 wireless technology, the FuzzyScan A770BT cordless Area Imaging Scanner delivers superior reading performance, impressive snappy reading and the ultimate freedom of cordless operation. Its outstanding reading performance, superior wireless connectivity, robust enclosure and versatile features, the A770BT raises the bar with exceptional cost-performance.

Exceptional mobility and flexibility Powered by Bluetooth v4.0 wireless technology, A770BT provides several radio link modes to communicate with host devices. When the Bluetooth-enabled host device is not available, it can work with the smart cradle in PAIR mode or PICO mode. This provides an instant plug-and-play cordless migration to your existing non-Bluetooth-enabled IT assets. Moreover, the PICO mode supports multiple connections up to 7 scanners with one smart cradle, reducing the cost of system. Furthermore, you can use A770BT with Bluetooth-enabled host devices via SPP mode or HID mode.

Superior reading performance The A770BT can read most popularly-used linear, 2D bar codes, postal codes omni-directionally. High Density and Standard Range models are designed for the needs of various barcode scanning applications. It can also perform exceptional reading performance on barcode printed on reflective material and on curved surface. A770BT presents superior adaption of most real world barcodes, such as poorly printed, distorted and damaged barcodes.

Versatile functionality and rich features To fulfill diverse business applications, A770BT is feature-rich to represent its best value in its class. It can store up to 100,000 EAN-13 barcode data in batch mode. The out-of-range scanning feature allows A770BT to continue scanning data even when it loses radio connection. In hand-free application, you can enable the Auto-sense function to have A770BT switch from trigger mode to presentation mode automatically when it is placed on SmartStand or smart cradle.

Features

  • Built with the latest Bluetooth v4.0 wireless technology
  • Over 100 meters communication coverage when working with smart cradle
  • Plug-and-play cordless migration by working with smart cradle
  • Supports multiple connections up to 7 scanners in PICO mode
  • Support both HID and SPP profiles to connect with most Bluetooth-enabled hosts
  • Compatible with the most popular iOS and Android devices
  • Batch scanning with more than 100,000 EAN-13 scans of storage
  • Read most popular 1D, 2D barcodes and postal codes
  • Snappy reading and superior first-time read
  • Digital image capture capability
  • Ruggedized over-mold design to withstand multiple drops of 2.0 meter to concrete
  • Cradle contact pin with high durability over 1,000,000 times
  • Optional vibrator is ideal for noisy and quiet environments

What's in the Box

  • Scanner
  • Battery
  • Smart Cradle
  • Power Supply
  • Quick Start Guide
  • Interface cable
Performance Characteristics
Image Sensor WVGA 752x480 Pixels
Print Contrast 20% minimum reflectance difference
Min. Resolution SR Model
3.3 mil Code 39
7 mil DM
HD Model
2.7 mil Code 39
5 mil DM
Light Source Aiming Pattern : 630nm LED
Illumination : 630nm LED
Roll, Pitch, Skew Roll: 360°; Pitch: ± 75°; Skew: ± 65°
Motion Tolerance Up to 25 inch/63.5 cm per second
Reading Range
SR Model
5 mil (0.13mm) C39
13 mil (0.33mm) EAN
10 mil (0.25mm) DM
3.8-19.5cm (1.5”-7.7”)
2.4-40.5cm (0.9”-15.9”)
3.0-20.0cm (1.2”-7.9”)
DM HD Model
3 mil (0.07mm) C39
5 mil (0.13mm) C39
13 mil (0.33mm) EAN
5 mil (0.13mm) DM
10 mil (0.25mm) DM
2.2-9.6cm (0.9”-3.8”)
2.8-11.5cm (1.1”-4.5”)
1.8-20.3cm (0.9”-12.9”)
2.8-7.5cm (1.1”-3.0”)
1.2-12.0cm (0.5”-4.7”)
Operating Modes Trigger, Presentation
Configuration Setup Bar code command
Windows utility - FuzzyScan PowerTool
Data Editing Condensed DataWizard via bar code command
Full-feature DataWizard via FuzzyScan PowerTool
DataWizard Premium via FuzzyScan PowerTool
User Interfaces Blue link indicator and 2-color status indicator
Programmable beeper
Optional vibrator
Image Capture Graphic Format : BMP
Electrical Characteristics
Battery 3.7V, 2600mAH Li-ion rechargeable battery
Battery Charge Time Approx. 4-5 hours per full charge
Scans per full Charge More than 63,000 scans and transmissions
Voltage & Current (Scanner and Smart Cradle) Voltage             Current (Charging/ Non Charging)
5 ± 10% VDC   Max.750 mA / 175mA with external power
Communication Characteristics
RF Standard Bluetooth v4.0
RF Frequency Band 2.402~2.4830 GHz unlicensed ISM band
Radio Link Modes PAIR mode, PICO mode, SPP mode, HID mode
Communication Range More than 100 meters in open space when working with smart cradle, line of sight
Supported Profiles SPP, HID
Supported Symbologies
1D Linear Code 39, Code 39 Full ASCII, Code 32, Code 128,
GS1-128, Codabar, Code 11, Code 93,
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5,
IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum,
Telepen, MSI/Plessey & UK/Plessey ,
GS1 DataBar, Linear & Linear Stacked
2D Codes PDF417, Micro PDF417, Codablock F, Code 16K,
Code 49, Composite Codes, DataMatrix, MaxiCode,
QR Code, Aztec, MicroQR
Postal Codes Australian Post, US Planet, US Postnet, Japan Post
Dutch KIX code, Intelligent Mail, British Post
User Environment
Drop Specifications Withstand 50 drops at 1.8m / 6.0ft to concrete
Withstand 10 drops at 2.0m / 6.6ft to concrete
Environmental Sealing IP41
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% related humidity, non-condensing
Ambient Light Immunity 0 ~ 100,000 lux
ESD Protection Functional after 15kV discharge
Physical Characteristics
Dimension 95.0 mm (L) x 70.5 mm (W) x 161.7 mm (D)
Weight 210g (Battery included)
Safety & Regulatory
EMC & Radio CE,FCC,BSMI,C-Tick,KC,NCC,VCCI,MIC
Safety LED Eye Safety IEC62471, Exempt Group
Environmental Compliant with RoHS directive
Accessories
Smart Cradle RF Standard: Bluetooth v4.0
Battery charging: Fast charge
User Interfaces: 1 blue link indicator, 2-color status indicator, Beeper, Paging/Reset button
Host Interface: PS/2 (DOS V) Keyboard Wedge, TTL RS232 Serial, USB HID, USB COM
Charging Cradle Battery charging: Fast charge
User Interface: 1 blue power indicator
Interface Cables PS/2 (DOS V) Keyboard Wedge Cable
RS232 Serial Cable
USB Cable
Others 5VDC Power Supply Unit
Hand-Free SmartStand
