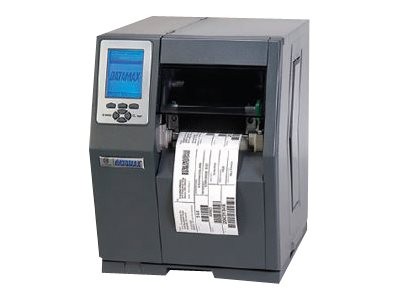

Datamax H-Class H-4212X (C32-00-48000S04)

H-4212X Direct Thermal-Thermal Transfer Printer (203 dpi, 4.1 Inch Print Width, 12 ips Print Speed, Serial and Parallel Interfaces, 8MB Flash, DMXRFNET, 802.11b-g, WPA2)

by Datamax-O'Neil

Part #: C32-00-48000S04

View Detailed Description


Call for Availability

The H-Class is a rugged and versatile printer that offers advanced solutions for dynamic enterprise applications. The H-Class is optimal for high-volume label printing in manufacturing, warehouse, transportation, and high resolution labeling. H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance for mission critical services. It offers a broad range of connectivity to meet diverse application requirements and easily integrates into any network. Modular construction increases up-time for the highest levels of user productivity. H-Class has large graphical display and provides an easy-to-read view for quick navigation and printer notifications.


  • Advanced connectivity
    H-Class printer comes with versatile interfaces giving users flexibility in integration.
  • Rugged construction
    Rugged construction features a gear-driven design and durable die-cast aluminum frame.
  • Large graphical LCD display
    Large graphical LCD display provides the ease in navigating menus as well as data collection.
  • One printer does it all
    The H-Class printer can be used in a wide variety of industrial applications with a range of media compatibility, connectivity and emulation support.
  • Increased productivity
    The H-Class decreases downtime with its easy to maintain modular features such as the lower roller which improves peeling performance, split design of the label supply hub which allows lower torque on narrow media, and field-installable possibilities including a full internal self-powered rewind.

Product DescriptionDatamax H-Class H-4212X - label printer - monochrome - direct thermal / thermal transfer
Printer TypeLabel printer - direct thermal / thermal transfer - monochrome
Weight47.18 lbs
Max Media SizeRoll (4.65 in)
Min Media Size (Custom)1 in
Max Media Size (Custom)4.65 in
Print SpeedUp to 720.5 inch/min - max speed
Max Resolution ( B&W )203 dpi
InterfaceParallel, USB, LAN, serial, Wi-Fi
Processor200 MHz
RAM Installed ( Max )16 MB SDRAM
Flash Memory Installed (Max)8 MB
Card ReaderYes
Language SimulationDPL
BarcodesCode 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet , PDF417, Data Matrix, FIM, TLC39, Plessey
Media TypeLabels, continuous forms
FontsCG Times, CG Triumvirate, OCR-A, OCR-B
FeaturesReal time clock
Display Resolution240 x 320
NetworkingPrint server - Ethernet, IEEE 802.11b, IEEE 802.11g
PowerAC 120 V
Dimensions (WxDxH)12.6 in x 19.3 in x 16.3 in
