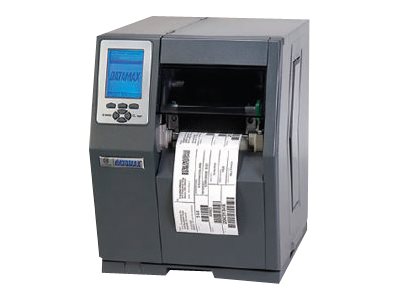

Datamax H-Class H-4212X (C32-00-48900S04)H-4212X Direct Thermal-Thermal Transfer Printer (203 dpi, 4.1 Inch Print Width, 12 ips Print Speed, Serial and Parallel Interfaces, 8MB Flash, Peel and Present, INT Rewind, DMXRFNET3, 802.11b-g, WPA2)
Part #: C32-00-48900S04
View Detailed Description
The H-Class is a rugged and versatile printer that offers advanced solutions for dynamic enterprise applications. The H-Class is optimal for high-volume label printing in manufacturing, warehouse, transportation, and high resolution labeling. H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance for mission critical services. It offers a broad range of connectivity to meet diverse application requirements and easily integrates into any network. Modular construction increases up-time for the highest levels of user productivity. H-Class has large graphical display and provides an easy-to-read view for quick navigation and printer notifications.
- Advanced connectivity
H-Class printer comes with versatile interfaces giving users flexibility in integration.
- Rugged construction
Rugged construction features a gear-driven design and durable die-cast aluminum frame.
- Large graphical LCD display
Large graphical LCD display provides the ease in navigating menus as well as data collection.
- One printer does it all
The H-Class printer can be used in a wide variety of industrial applications with a range of media compatibility, connectivity and emulation support.
- Increased productivity
The H-Class decreases downtime with its easy to maintain modular features such as the lower roller which improves peeling performance, split design of the label supply hub which allows lower torque on narrow media, and field-installable possibilities including a full internal self-powered rewind.
|Product Description||Datamax H-Class H-4212X - label printer - monochrome - direct thermal / thermal transfer|
|Printer Type||Label printer - direct thermal / thermal transfer - monochrome|
|Max Media Size||Roll (4.65 in)|
|Min Media Size (Custom)||1 in|
|Max Media Size (Custom)||4.65 in|
|Print Speed||Up to 720.5 inch/min - max speed|
|Max Resolution ( B&W )||200 dpi|
|Interface||Parallel, USB, LAN, serial, Wi-Fi|
|RAM Installed ( Max )||16 MB SDRAM|
|Flash Memory Installed (Max)||8 MB|
|Barcodes||Code 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet , PDF417, Data Matrix, FIM, TLC39, Plessey|
|Media Type||Labels, continuous forms|
|Fonts||CG Times, CG Triumvirate, OCR-A, OCR-B|
|Features||Real time clock, peeler with liner rewind|
|Display Resolution||240 x 320|
|Networking||Print server - Ethernet, IEEE 802.11b, IEEE 802.11g|
|Power||AC 120/230 V|
|Dimensions (WxDxH)||12.6 in x 19.3 in x 16.3 in|
