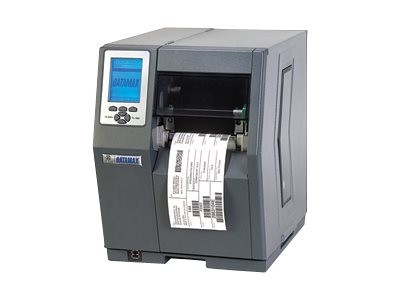

Datamax H-Class H-4310X RFID (C33-L1-484400V4)

H-4310X Direct Thermal-Thermal Transfer RFID Printer (300 dpi, 10 ips Print Speed, 8MB Flash, Internal Rewind and Cutter)

by Datamax-O'Neil

Part #: C33-L1-484400V4

View Detailed Description


Call for Availability

The H-Class is a rugged and versatile printer that offers one of the most feature rich solutions for dynamic enterprise applications and is twice as fast as other printers in its class. The H-Class is ideal for high volume label printing in manufacturing, warehouse, transportation, and high resolution labeling. H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance for 24X7 mission critical services.


  • H-Class printers come standard with Ethernet, Parallel, Serial, and USB/SDIO interfaces for extra capacity models giving users integration flexibility
  • Gear driven design with precision die-cast aluminum frame, which provides durability and light weight. A steel cabinet offers protection in industrial environments
  • Easy to read 7 button 240 X 320 graphical back lit display enabling user friendly label configuration set up on "X" models
  • Field installable options such as cutters, peel & present sensors, and thermal transfer capabilities can be added easily to upgrade a base printer
  • Media compatibility to support either coated side in or coated side out ribbons without the purchase of any options or the need for re-configuration resulting in easier ribbon inventory management
  • Proactive diagnostic tools allow easy access to printhead performance and history
  • Features include Time stamp with print capability, time and date battery backup

What's in the Box

  • Datamax H-Class H-4310X RFID
  • Cutter, rewind

Product DescriptionDatamax H-Class H-4310X RFID - label printer - monochrome - direct thermal / thermal transfer
Printer TypeLabel printer - direct thermal / thermal transfer - monochrome
Weight47.18 lbs
LocalizationUnited States
Max Media SizeRoll (4.65 in)
Min Media Size (Custom)1 in
Max Media Size (Custom)4.65 in
Print SpeedUp to 600 inch/min - max speed
Max Resolution ( B&W )300 dpi
InterfaceParallel, USB, LAN, serial
Processor200 MHz
RAM Installed ( Max )16 MB SDRAM
Flash Memory Installed (Max)8 MB
Card ReaderYes
BarcodesCode 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet , PDF417, Data Matrix, FIM, TLC39, Plessey
Media TypeLabels, continuous forms, fanfold paper, tag stock, tickets
FontsCG Times, CG Triumvirate, OCR
FeaturesRewinder, real time clock
Display Resolution240 x 320
NetworkingPrint server - Ethernet
Manufacturer Warranty2 years warranty
Dimensions (WxDxH)12.6 in x 19.3 in x 16.3 in
