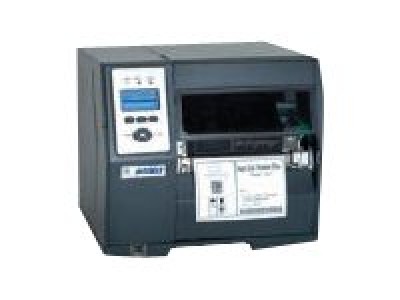

Datamax H-Class H-6308 (C93-00-48440004)

H-6308 Direct Thermal-Thermal Transfer Printer (300 dpi, 8 ips Print Speed, 8MB Flash, Tall Display, Internal Rewind, Heavy Cutter, 3 Inch Hub)

by Datamax-O'Neil

Part #: C93-00-48440004

View Detailed Description


Call for Availability

The H-Class is a rugged and versatile printer that offers one of the most feature rich solutions for dynamic enterprise applications and is twice as fast as other printers in its class. The H-Class is ideal for high volume label printing in manufacturing, warehouse, transportation, and high resolution labeling. H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance.


  • Rugged
    Gear driven design with precision die-cast aluminum frame, which provides durability and light weight. A steel cabinet offers protection in industrial environments.

What's in the Box

  • Datamax H-Class H-6308
  • Cutter, rewind

Product DescriptionDatamax H-Class H-6308 - label printer - monochrome - direct thermal / thermal transfer
Printer TypeLabel printer - direct thermal / thermal transfer - monochrome
Weight47.18 lbs
LocalizationUnited States
Max Media SizeRoll (6.7 in)
Min Media Size (Custom)1 in
Max Media Size (Custom)6.7 in
Print SpeedUp to 479.5 inch/min - max speed
Max Resolution ( B&W )300 dpi
InterfaceParallel, USB, LAN, serial
RAM Installed ( Max )16 MB SDRAM
Flash Memory Installed (Max)8 MB
BarcodesCode 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet , PDF417, Data Matrix, FIM, TLC39, Plessey
Media TypeLabels, continuous forms, fanfold paper, tag stock, tickets, die cut labels
FontsCG Times, CG Triumvirate, CG Triumvirate Bold Condensed, OCR-A, OCR-B
Styles & EffectsRotated text
FeaturesRewinder, real time clock
Display Resolution240 x 320
NetworkingPrint server - Ethernet, Fast Ethernet
Printer FeaturesRFID ready
PowerAC 120/230 V
System RequirementsMicrosoft Windows NT, Microsoft Windows XP, Microsoft Windows Vista
Manufacturer Warranty1 year warranty
Dimensions (WxDxH)15 in x 18.9 in x 13 in
